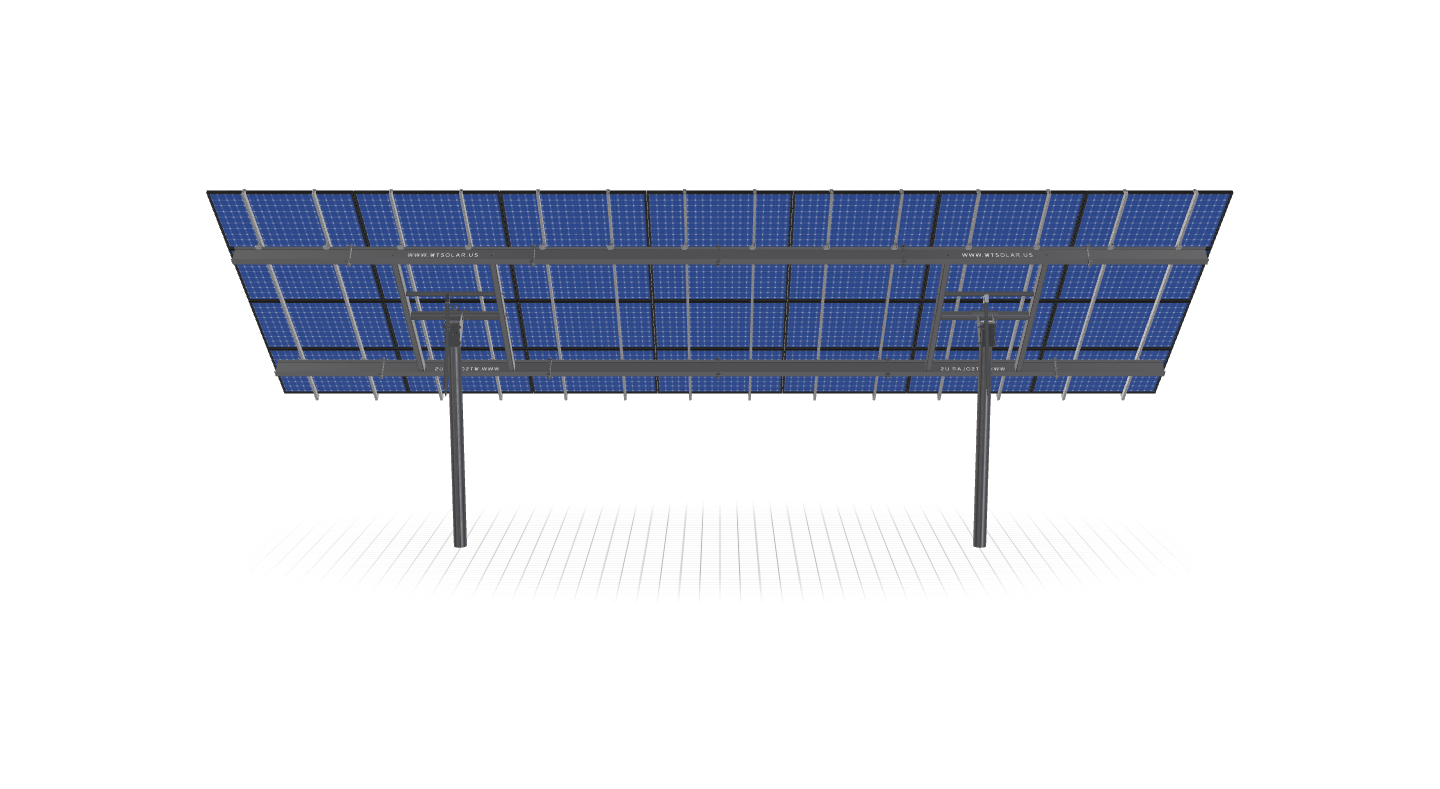

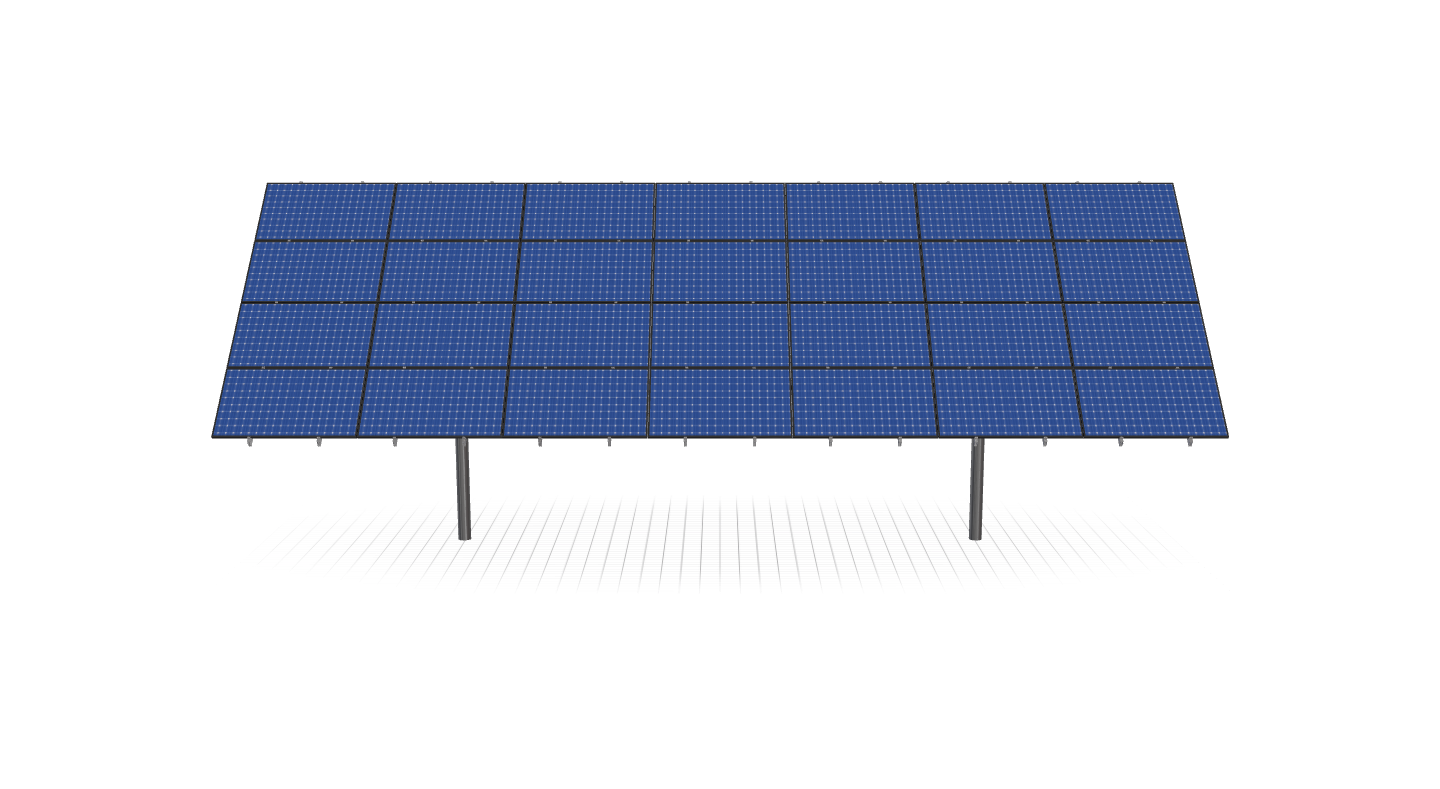

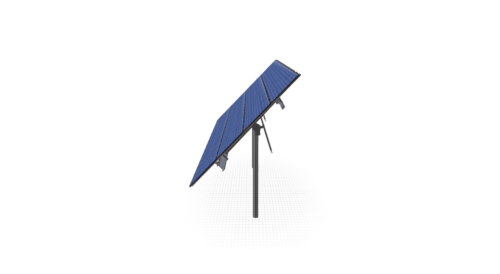

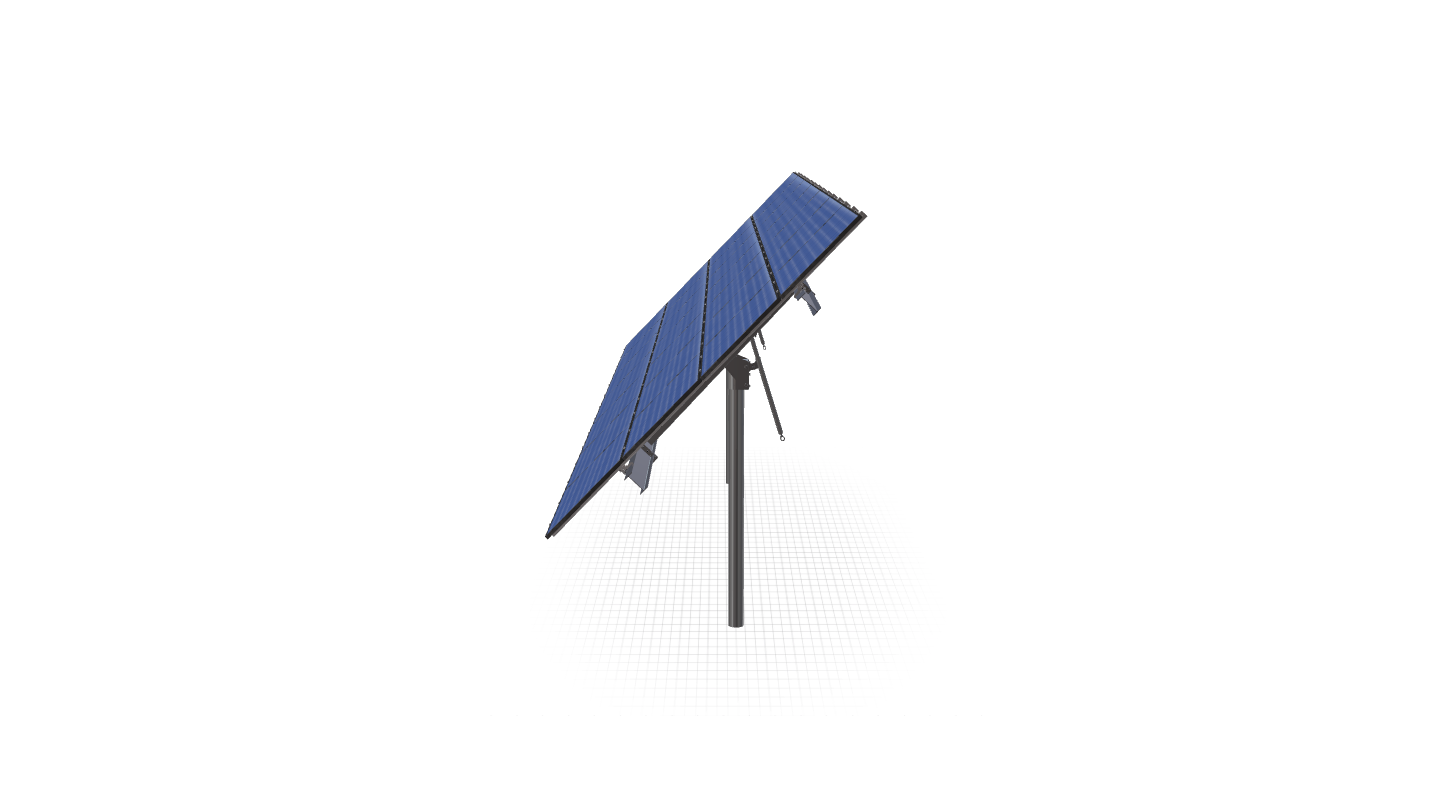

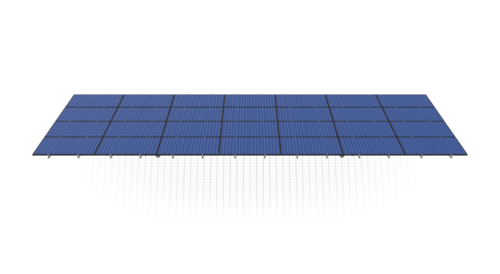

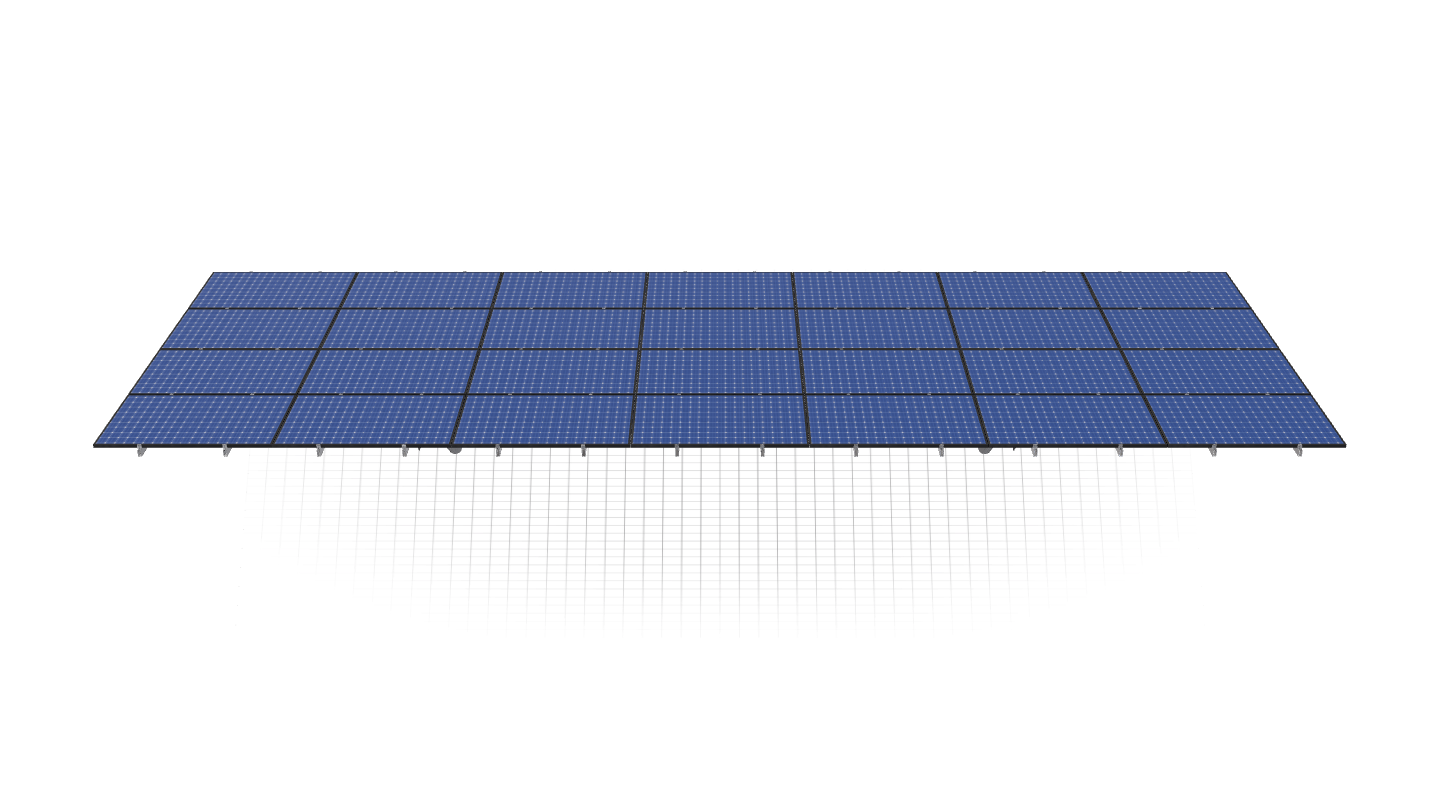

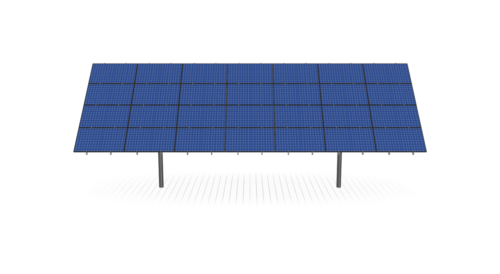

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 41 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Meher-JB-RevC
$9,902.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 41 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1814.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-HD-57-L-4HX7W-HGG9 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.98 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 564.86 |
| ARRAY WIDTH | 40.83 |
| ARRAY HEIGHT | 13.83 |
| RAIL LENGTH | 166.00 |
| MODULE LENGTH | 69.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 14.89 |
| PROJECTED PANEL HEIGHT | 9.83 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 110.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MEHER-JB-REVC |
| SITE ADDRESS | 420, JUNIPER, RD, SUN, VALLEY, ID, 83353, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9902.48 |
| TOTAL WEIGHT | 1814.72 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d41de2e4-63ff-43b0-b7fb-8c612bc0665d.pdf |
|
| ID | 672.00 |
| 3D Solar link |
