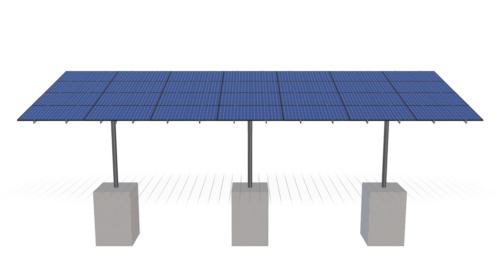

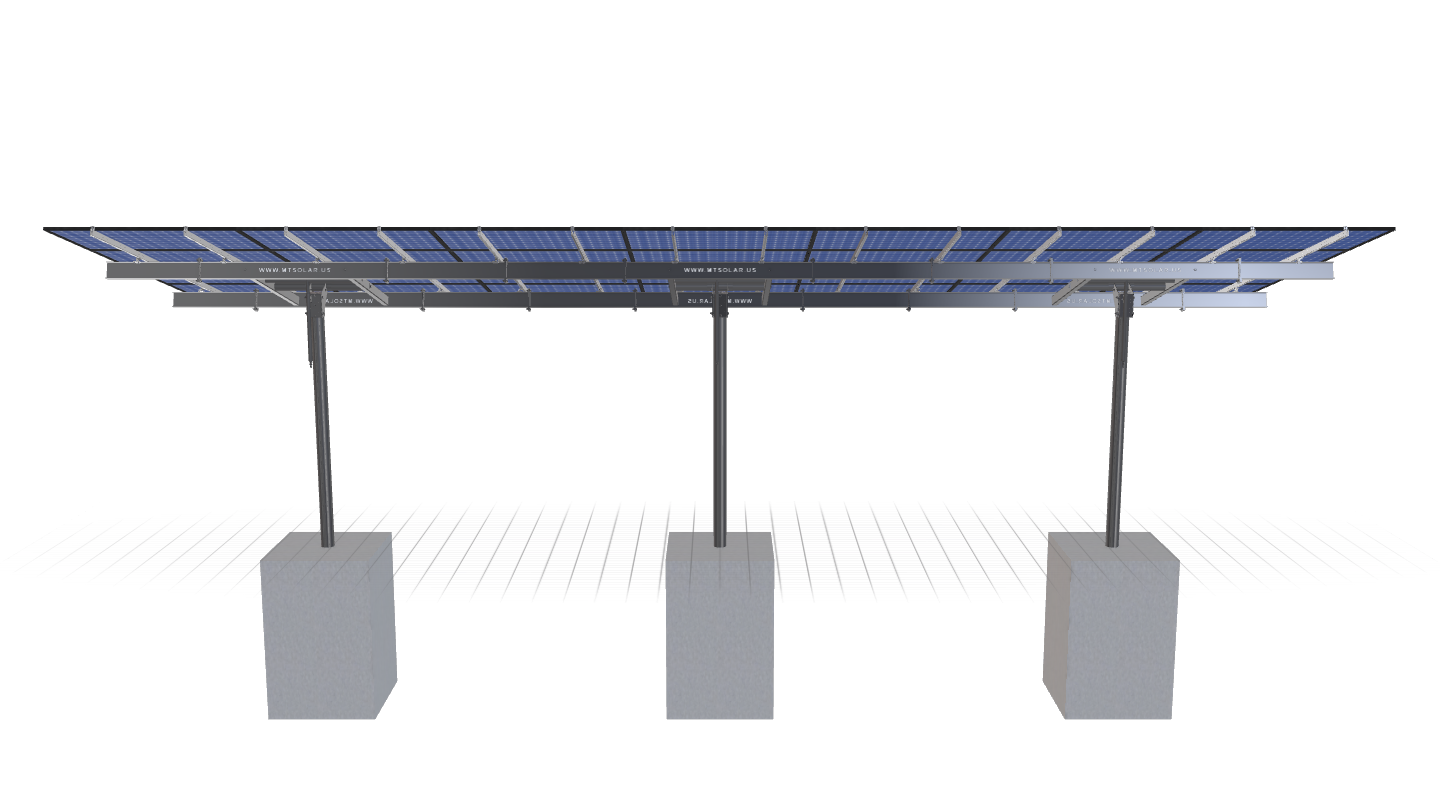

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.5 inches by 51.3 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

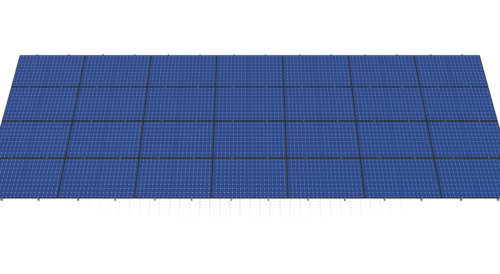

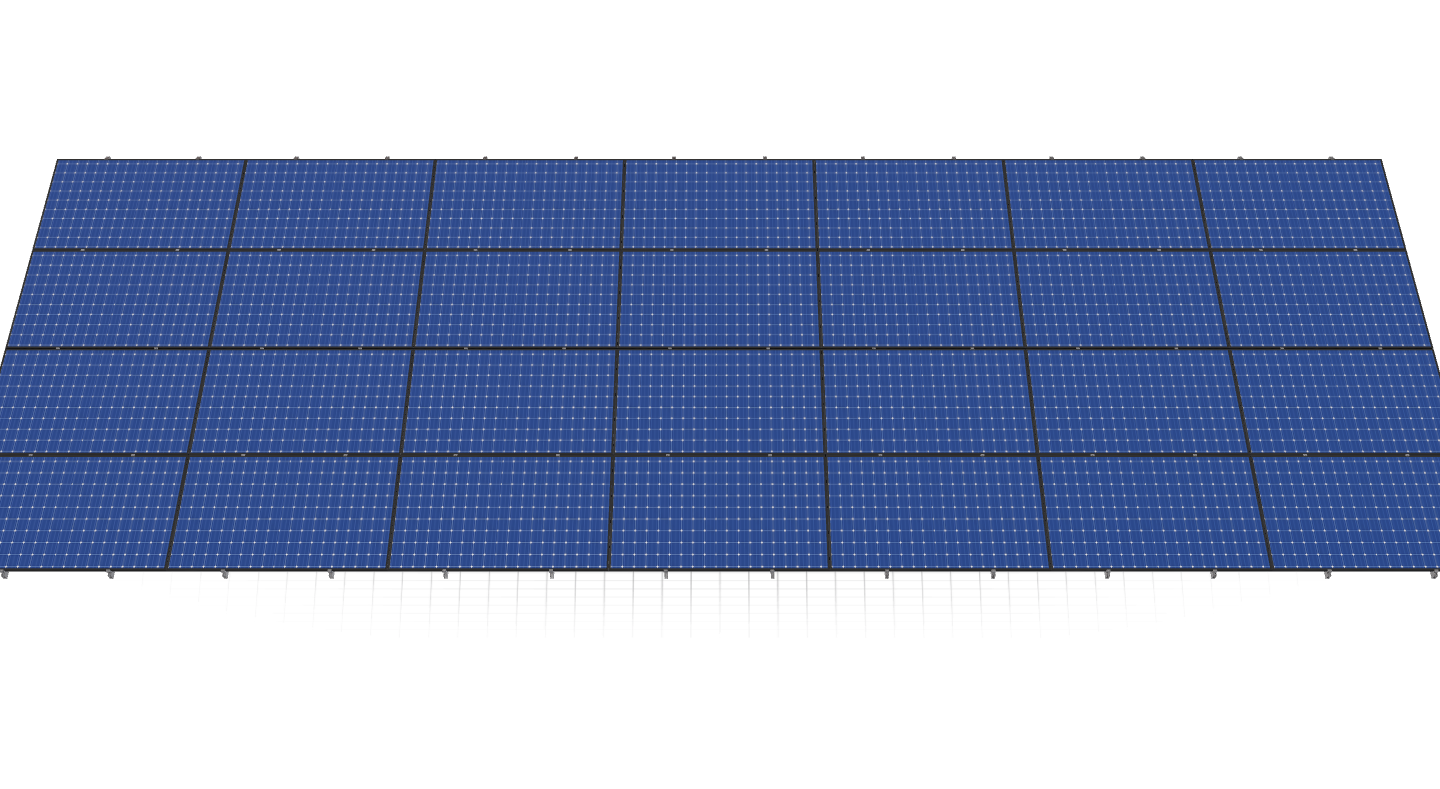

See 3D Model Here
PuertoRicoProject-RevA
$14,823.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.5 inches by 51.3 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2768.39 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-XD-45-L-4HX7W-18AG |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.23 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 871.25 |
| ARRAY WIDTH | 50.46 |
| ARRAY HEIGHT | 17.27 |
| RAIL LENGTH | 207.20 |
| MODULE LENGTH | 85.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 13.45 |
| PROJECTED PANEL HEIGHT | 4.43 |
| PROJECT ID | PUERTORICOPROJECT-REVA |
| SITE ADDRESS | 1170, SE, 12TH, TERRACE, MIAMI, FL, 33132, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 140.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 14823.21 |
| TOTAL WEIGHT | 2768.39 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/41833d33-b3dc-4bd9-a2ac-db834b179dcf.pdf |
|
| ID | 667.00 |
| 3D Solar link |
