This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.8 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

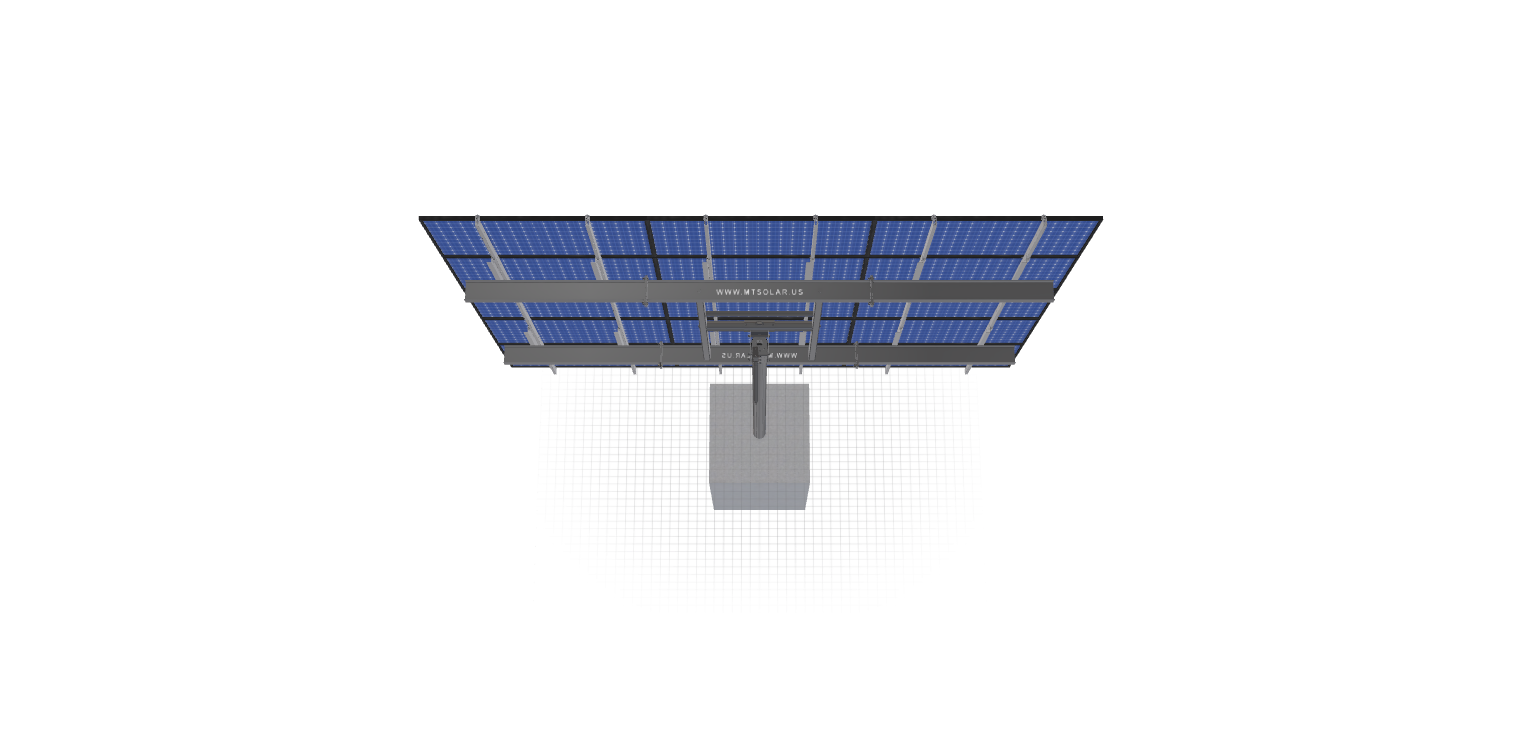

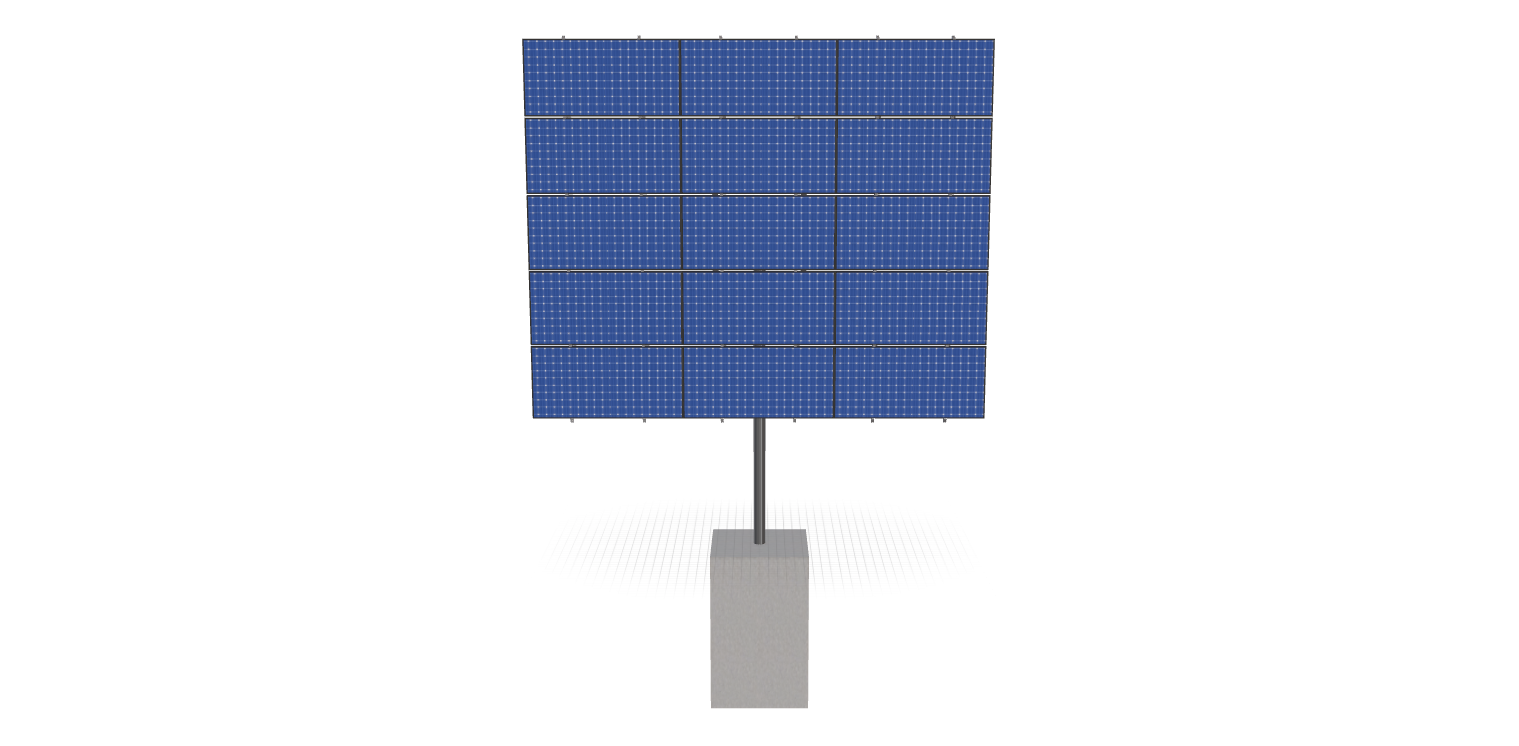

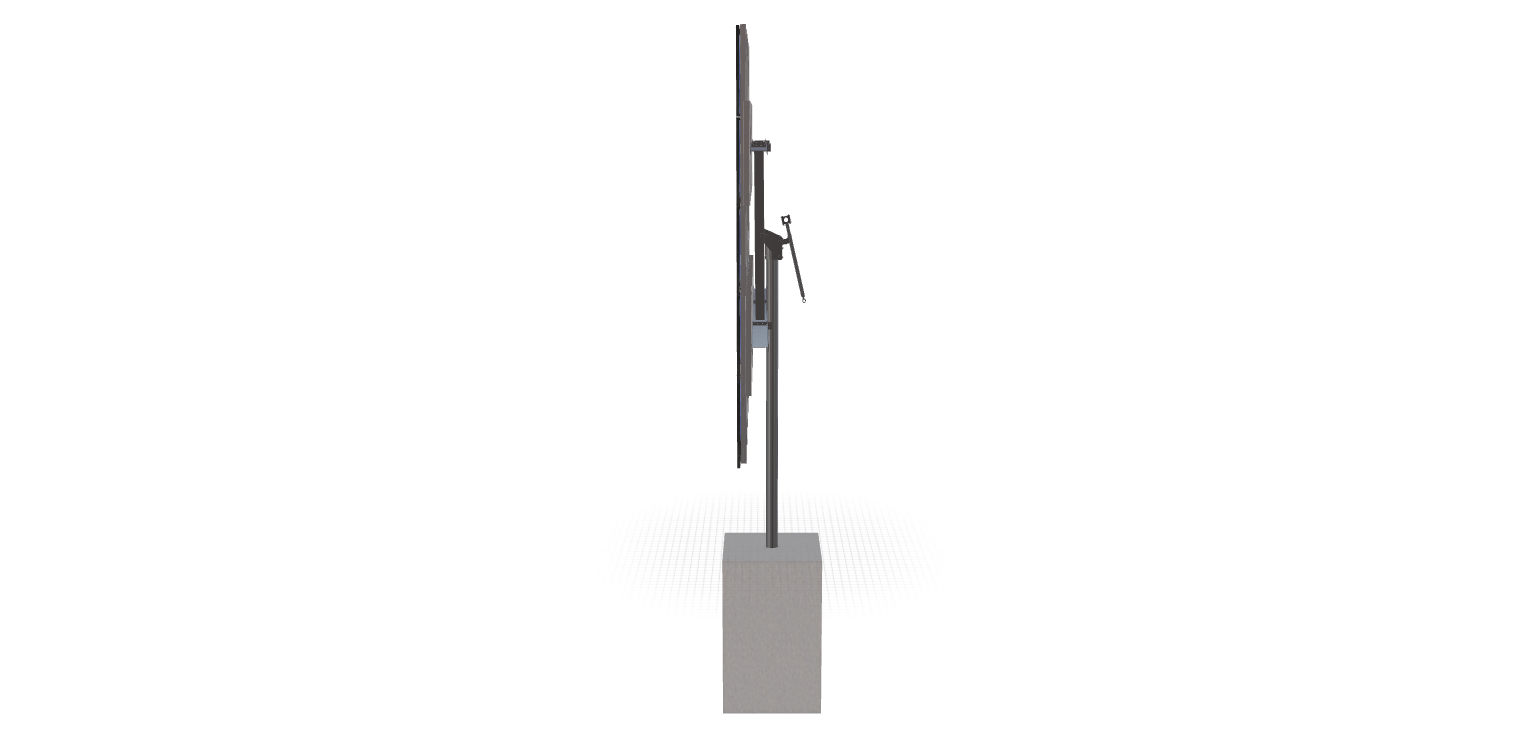

See 3D Model Here
100RoperRoadRevC
$5,033.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.8 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 952.3199999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-72-L-5HX3W-K0AH |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 14.60 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 90.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 358.97 |
| ARRAY WIDTH | 20.86 |
| ARRAY HEIGHT | 17.21 |
| RAIL LENGTH | 206.50 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 23.10 |
| PROJECTED PANEL HEIGHT | 17.00 |
| WIND SPEED OVERRIDE | 63.00 |
| SNOW LOAD OVERRIDE | 26.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 100ROPERROADREVC |
| SITE ADDRESS | 312, DEWEY, AVE, EUREKA, MT, 59917, USA |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4793.97 |
| TOTAL WEIGHT | 952.32 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ae967cac-6aea-47d9-8c38-0a60941ab97d.pdf |
|
| ID | 729.00 |
| 3D Solar link |
