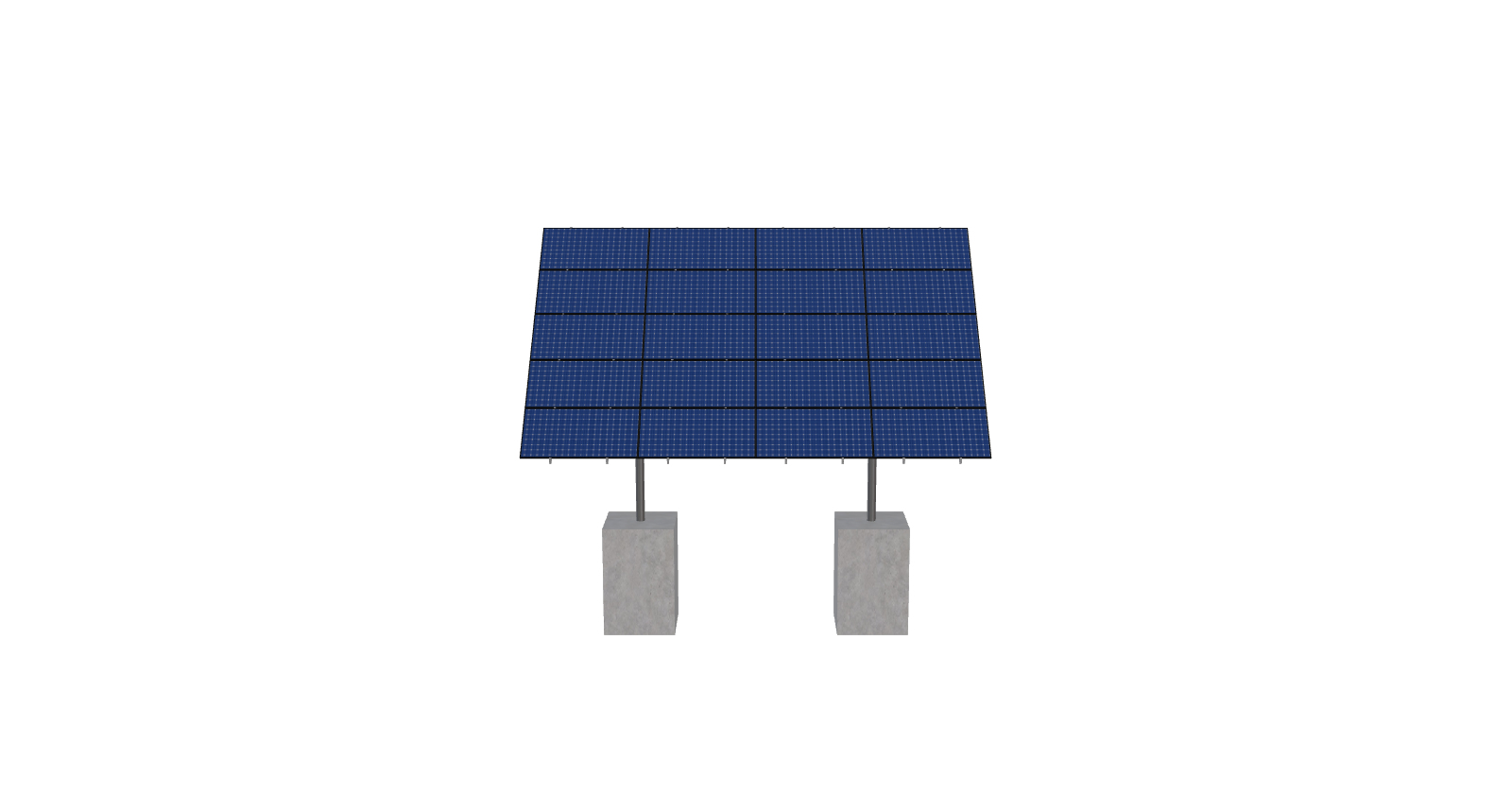

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 44 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

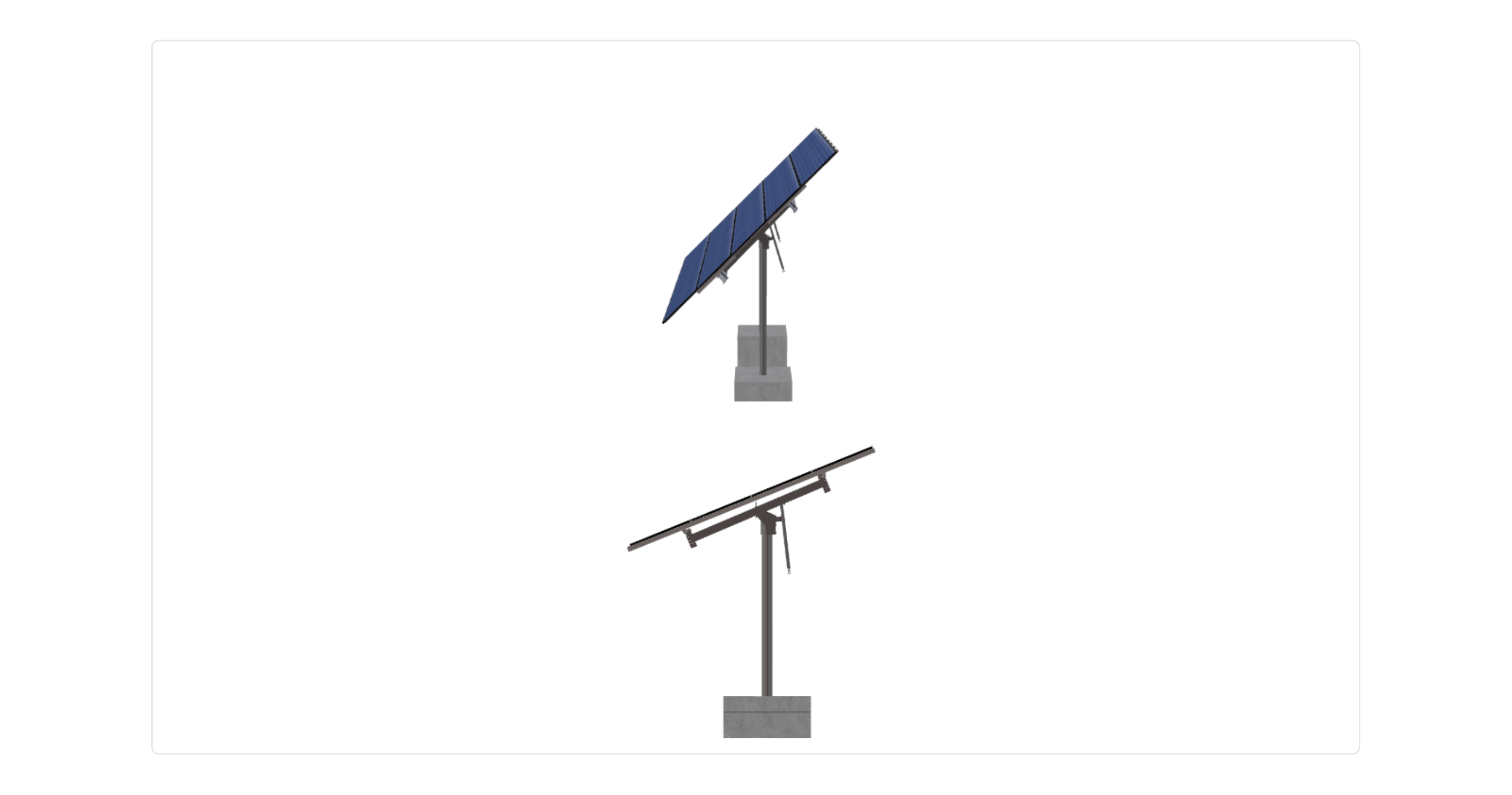

See 3D Model Here

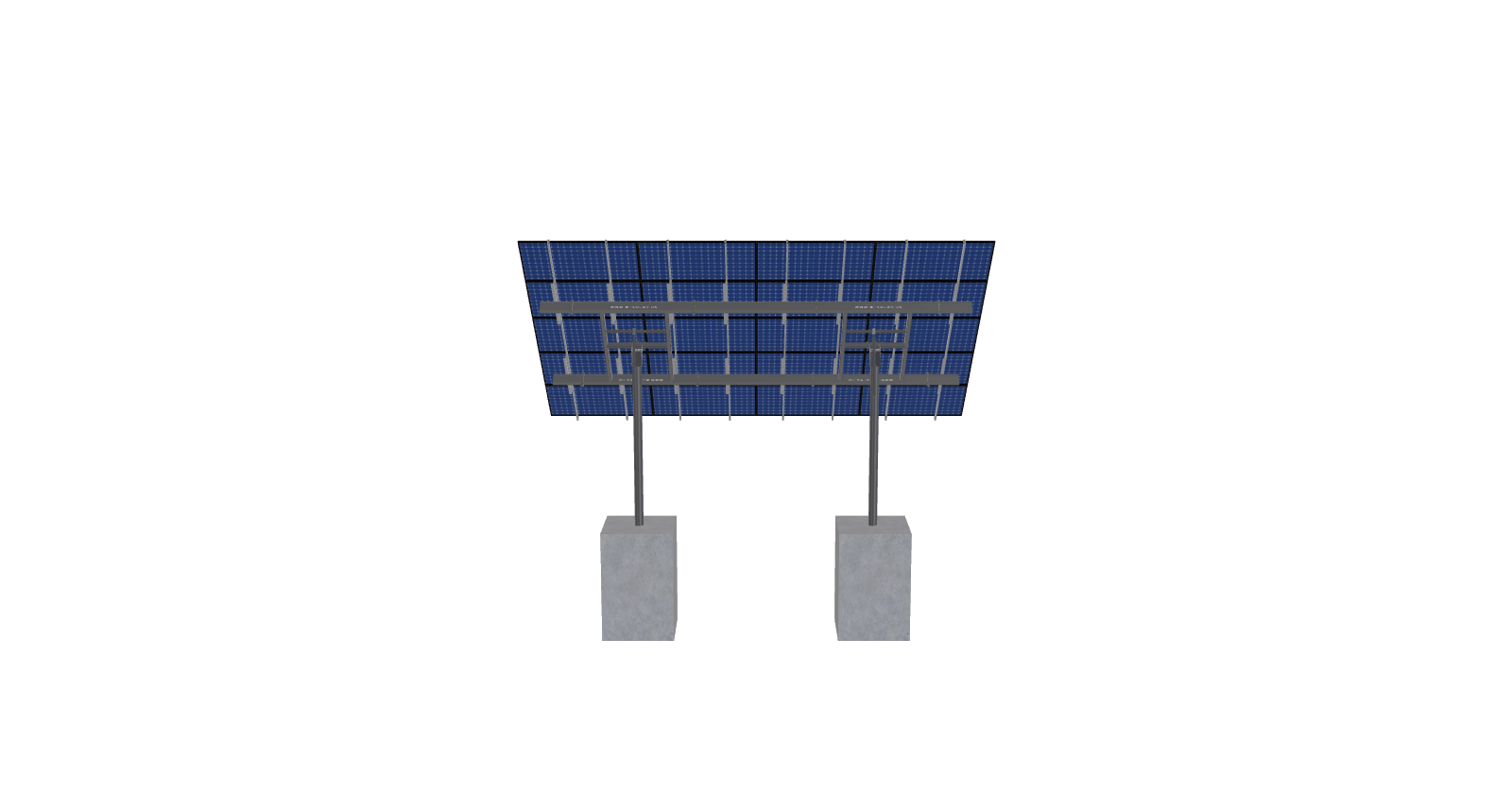

11971 C
$8,663.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 44 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1702.9 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-24-L-5HX4W-6A1F |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 11.56 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 525.35 |
| ARRAY WIDTH | 28.33 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 18.04 |
| PROJECTED PANEL HEIGHT | 12.96 |
| PROJECT ID | 11971, C |
| SITE ADDRESS | 1976, W, ATHENA, CIR, NORTH, POLE, AK, 99705, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 77.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8663.56 |
| TOTAL WEIGHT | 1702.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/eeff3c9e-ac9d-4dce-9c3e-8e4bebeffc24.pdf |
|
| ID | 2645.00 |
| 3D Solar link |
