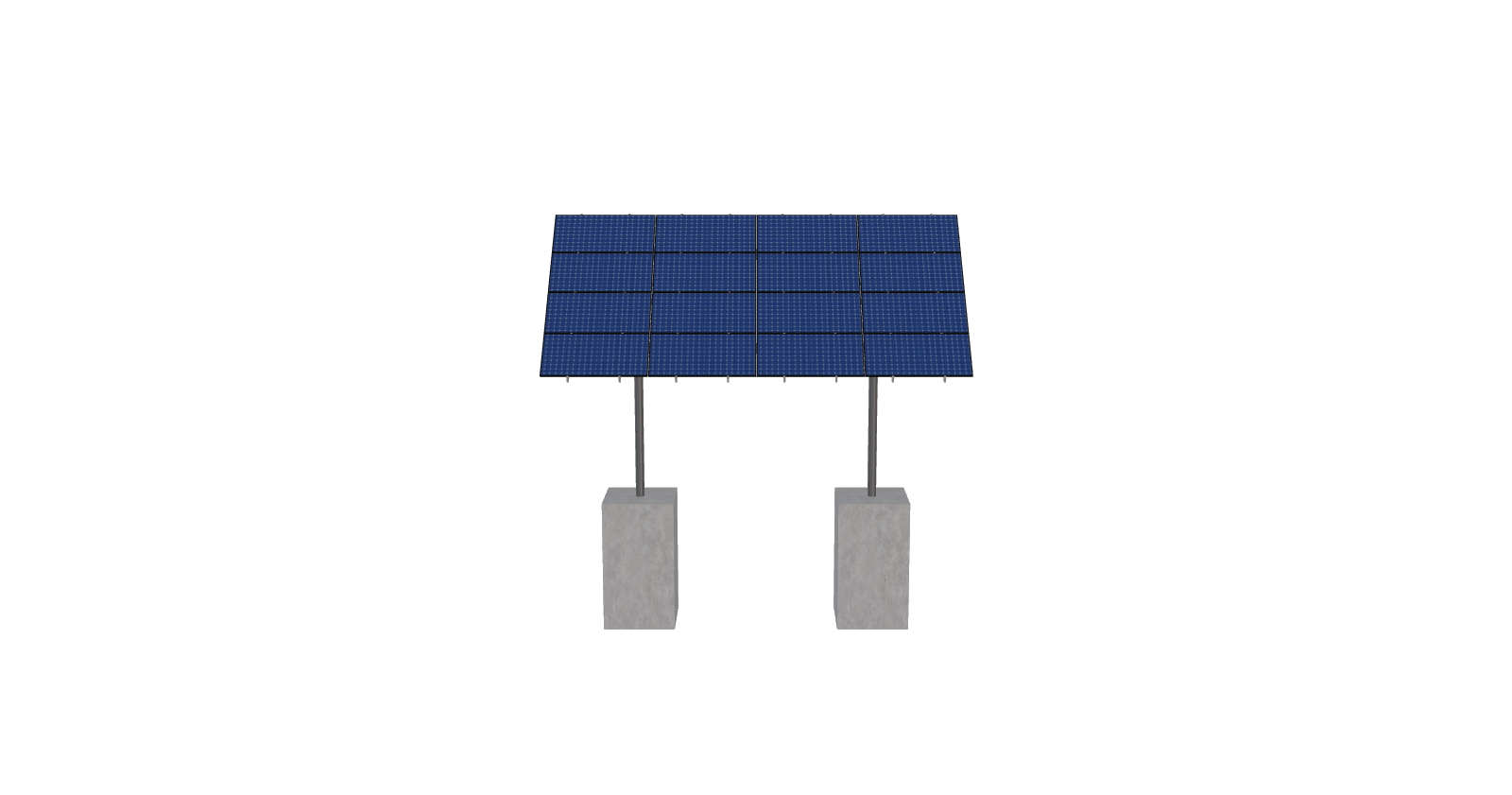

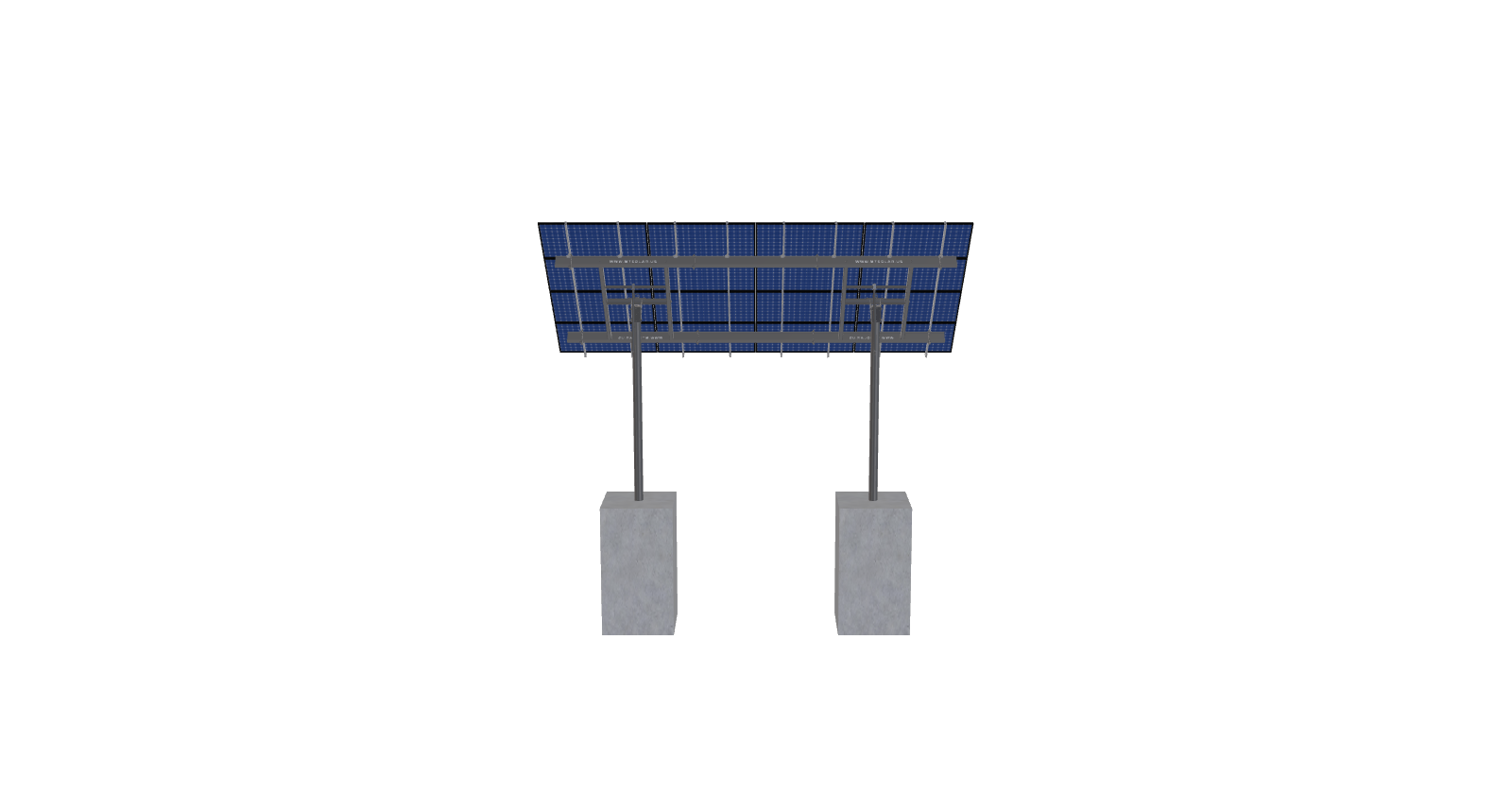

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77.8 inches by 39.4 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
12041 CUA
$7,778.59
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77.8 inches by 39.4 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1406.02 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-12-L-4HX4W-D46C |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 12.70 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 349.35 |
| ARRAY WIDTH | 26.27 |
| ARRAY HEIGHT | 13.30 |
| RAIL LENGTH | 159.60 |
| MODULE LENGTH | 77.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 17.35 |
| PROJECTED PANEL HEIGHT | 9.29 |
| PROJECT ID | 12041, CUA |
| SITE ADDRESS | 156, HINKLEY, CT, HARTSEL, CO, 80449, USA |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 155.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7778.59 |
| TOTAL WEIGHT | 1406.02 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/72919798-dfff-488f-a46f-4707c22fee9d.pdf |
|
| ID | 3012.00 |
| 3D Solar link |
