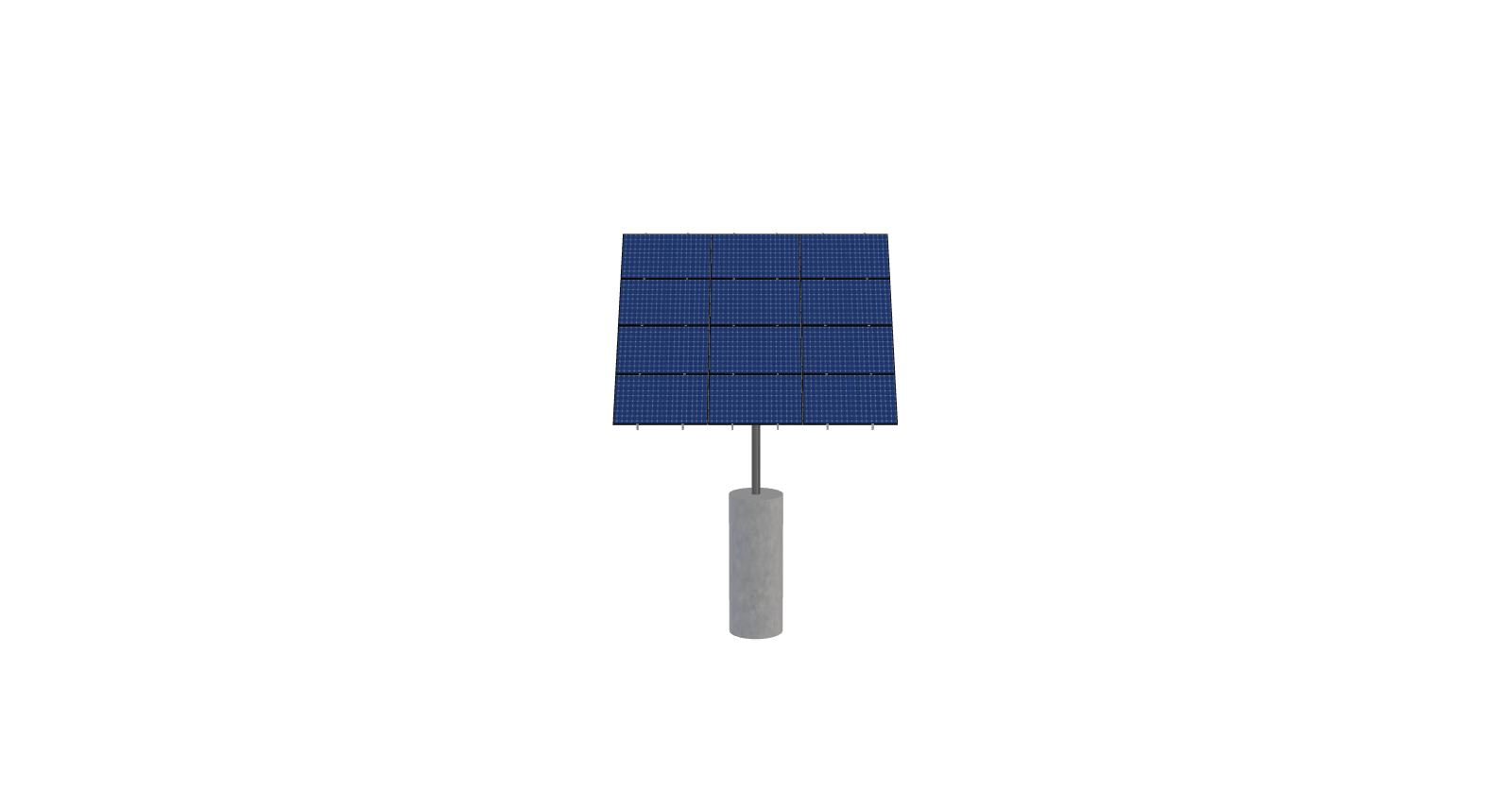

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 43.15 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
12392-cuV3
$5,377.11
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 43.15 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 941.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-57-L-4HX3W-50H5 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.57 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 254.62 |
| ARRAY WIDTH | 17.50 |
| ARRAY HEIGHT | 14.55 |
| RAIL LENGTH | 174.60 |
| MODULE LENGTH | 69.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 16.08 |
| PROJECTED PANEL HEIGHT | 11.02 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 69.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | 12392-CUV3 |
| SITE ADDRESS | 108, RAVINE, PKWY, ONEONTA, NY, 13820, USA |
| MODULE WIDTH | 43.15 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5121.06 |
| TOTAL WEIGHT | 941.21 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/68a4cdbf-1054-4f88-b8cc-511bb75fece9.pdf |
|
| ID | 6701.00 |
| 3D Solar link |
