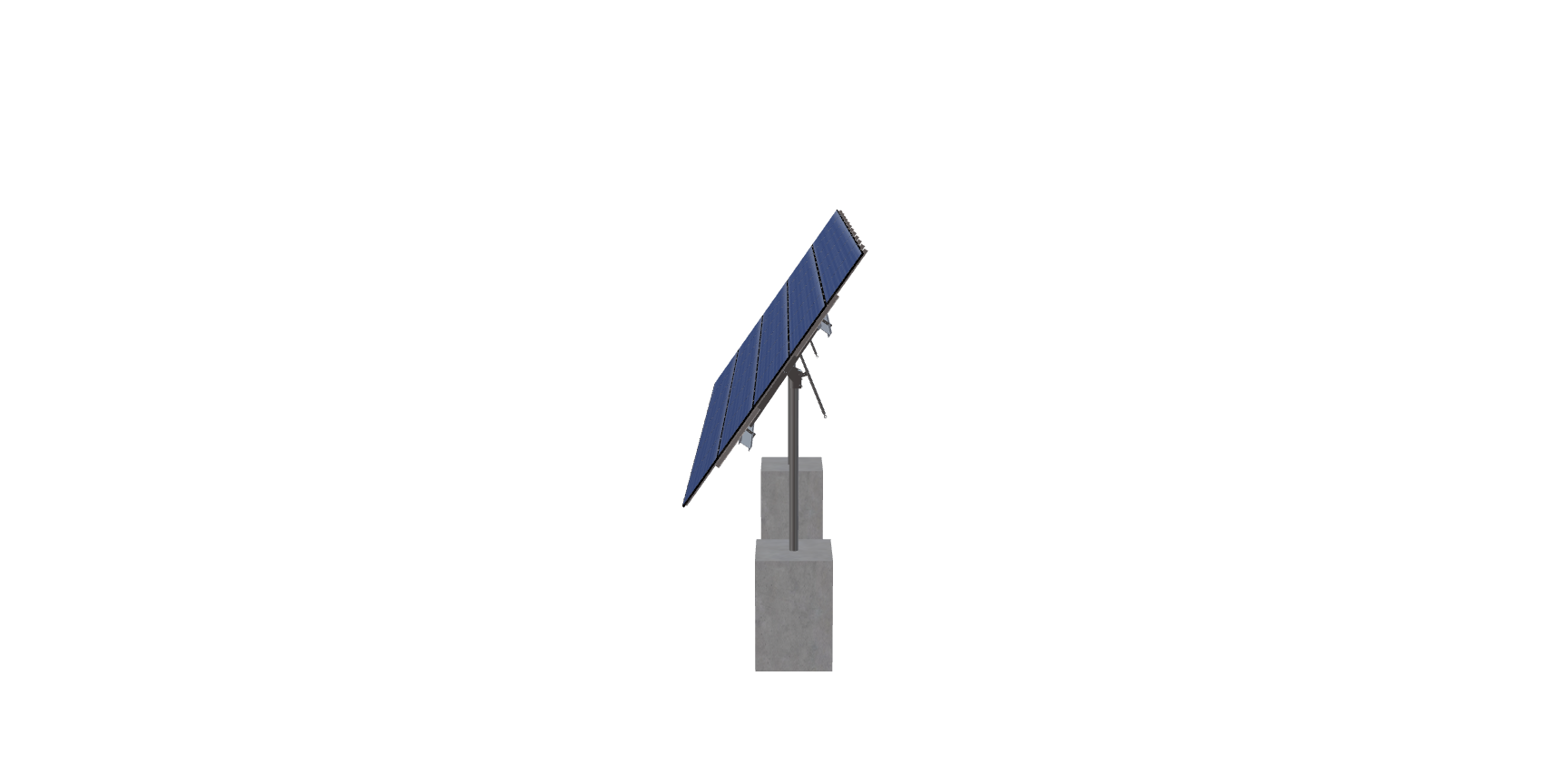

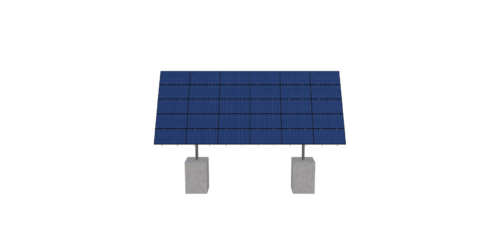

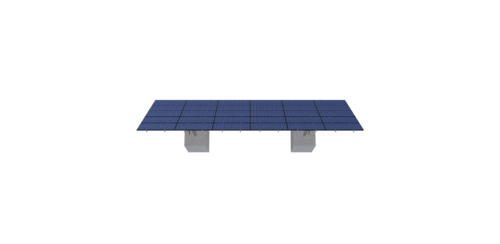

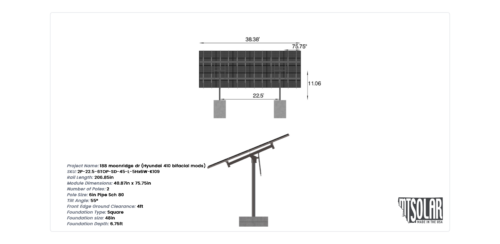

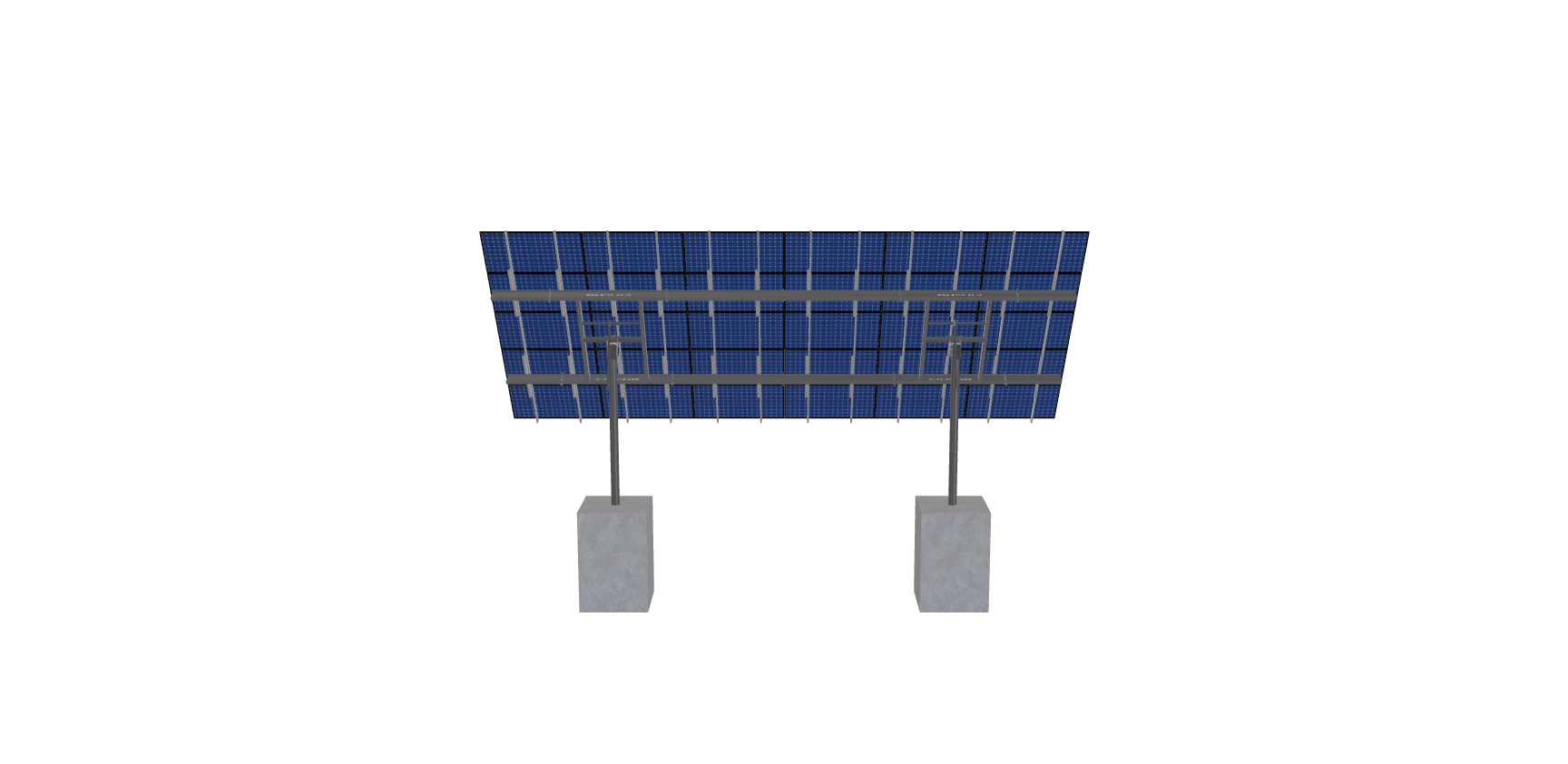

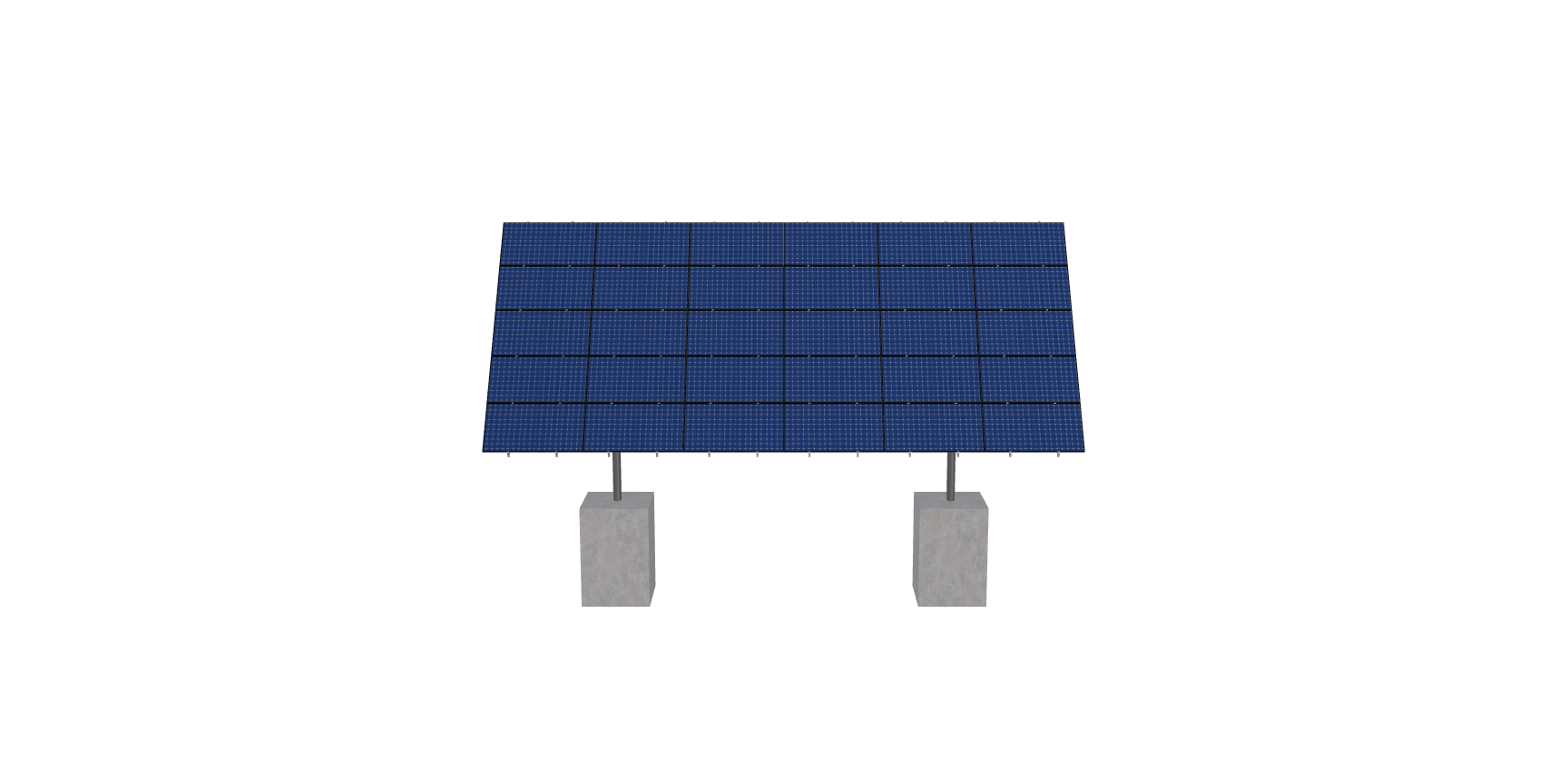

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.87 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
188 moonridge dr (Hyundai 410 bifacial mods)
$9,457.66
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.87 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1871.6399999999999 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-6TOP-SD-45-L-5HX6W-K109 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 11.06 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 55.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 2.00 |
MODULE AREA | 661.49 |
ARRAY WIDTH | 38.38 |
ARRAY HEIGHT | 17.24 |
RAIL LENGTH | 206.85 |
MODULE LENGTH | 75.75 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 18.03 |
PROJECTED PANEL HEIGHT | 13.95 |
DESIGNER NAME | CURRAN |
DESIGNER EMAIL | |
DESIGNER PHONE | |
PROJECT ID | 188, MOONRIDGE, DR, (HYUNDAI, 410, BIFACIAL, MODS) |
SITE ADDRESS | 188, MOONRIDGE, DR, WHITEFISH, MT, 59937, USA |
MODULE WIDTH | 40.87 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 110.00 |
SNOW LOAD OVERRIDE | 68.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 9457.66 |
TOTAL WEIGHT | 1871.64 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c433eebc-338d-4782-8262-bb1778c23ef9.pdf |
|
ID | 7945.00 |
3D Solar link |
