This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 44.6 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

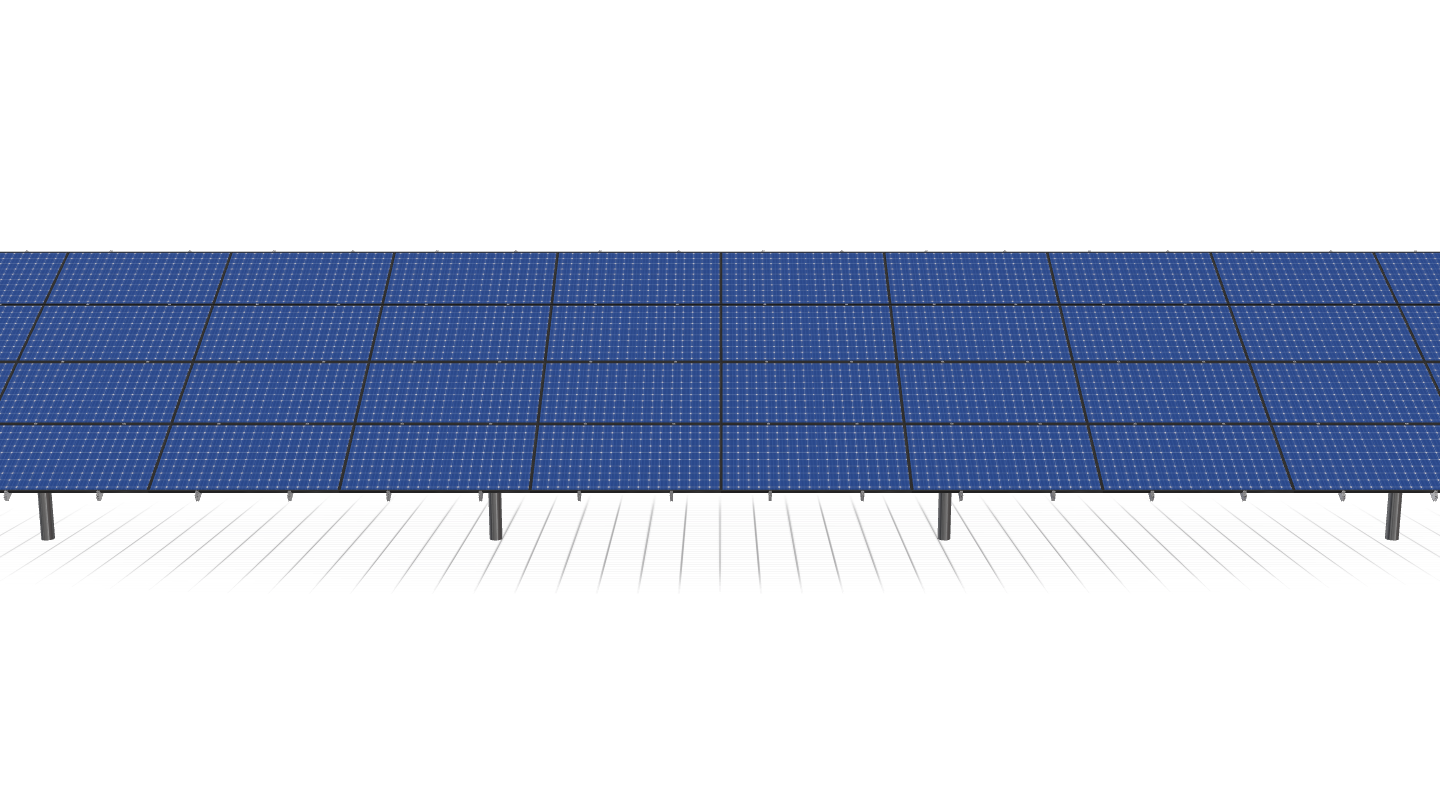

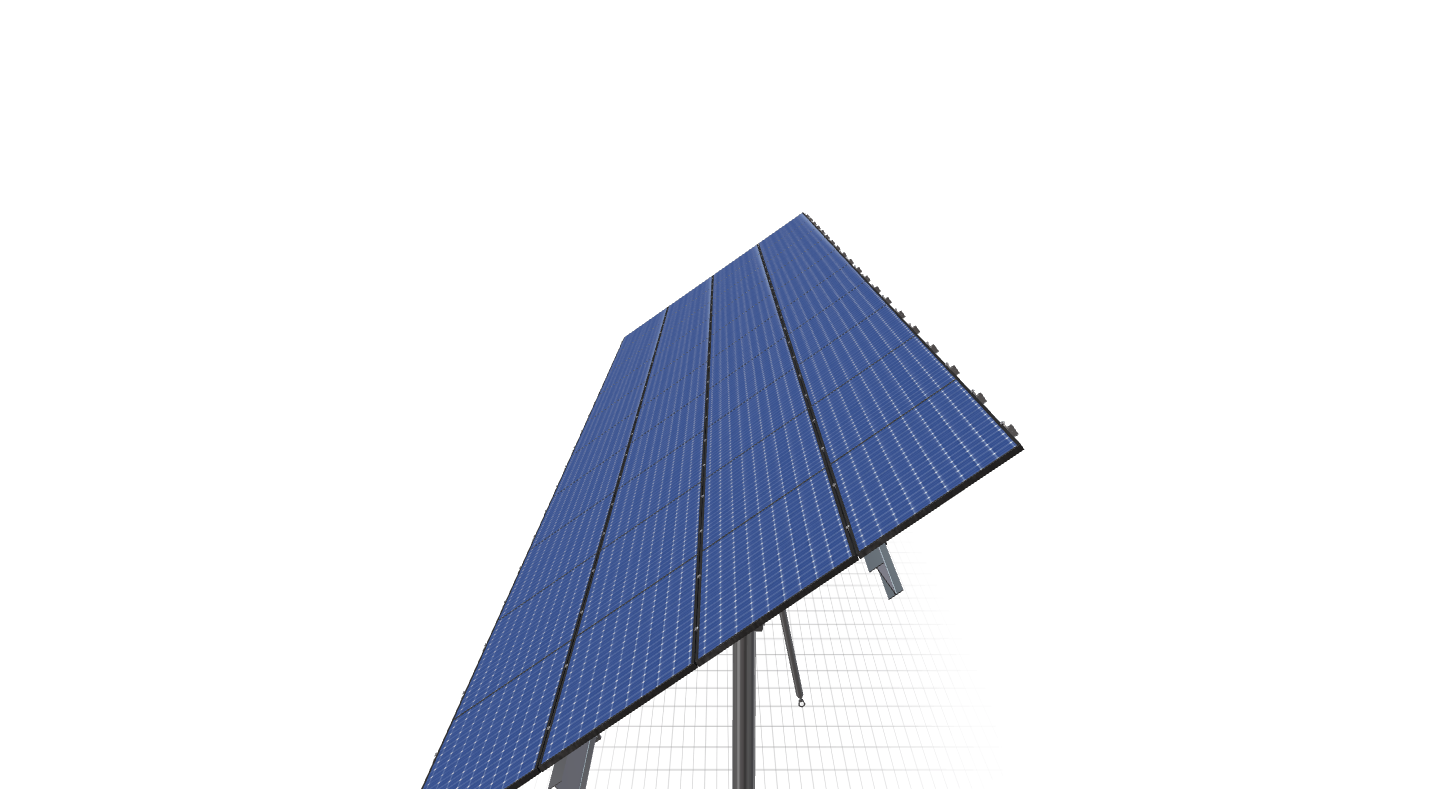

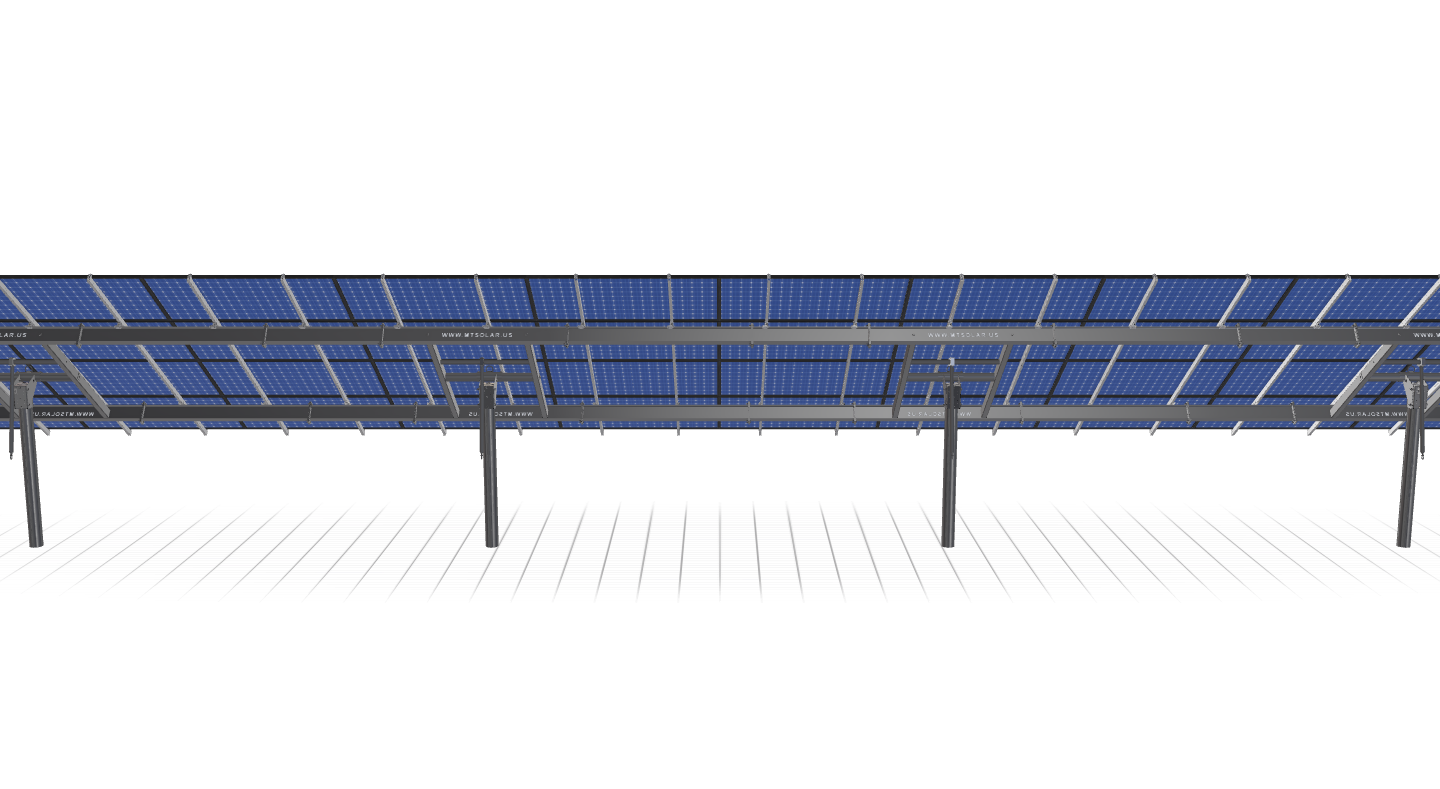

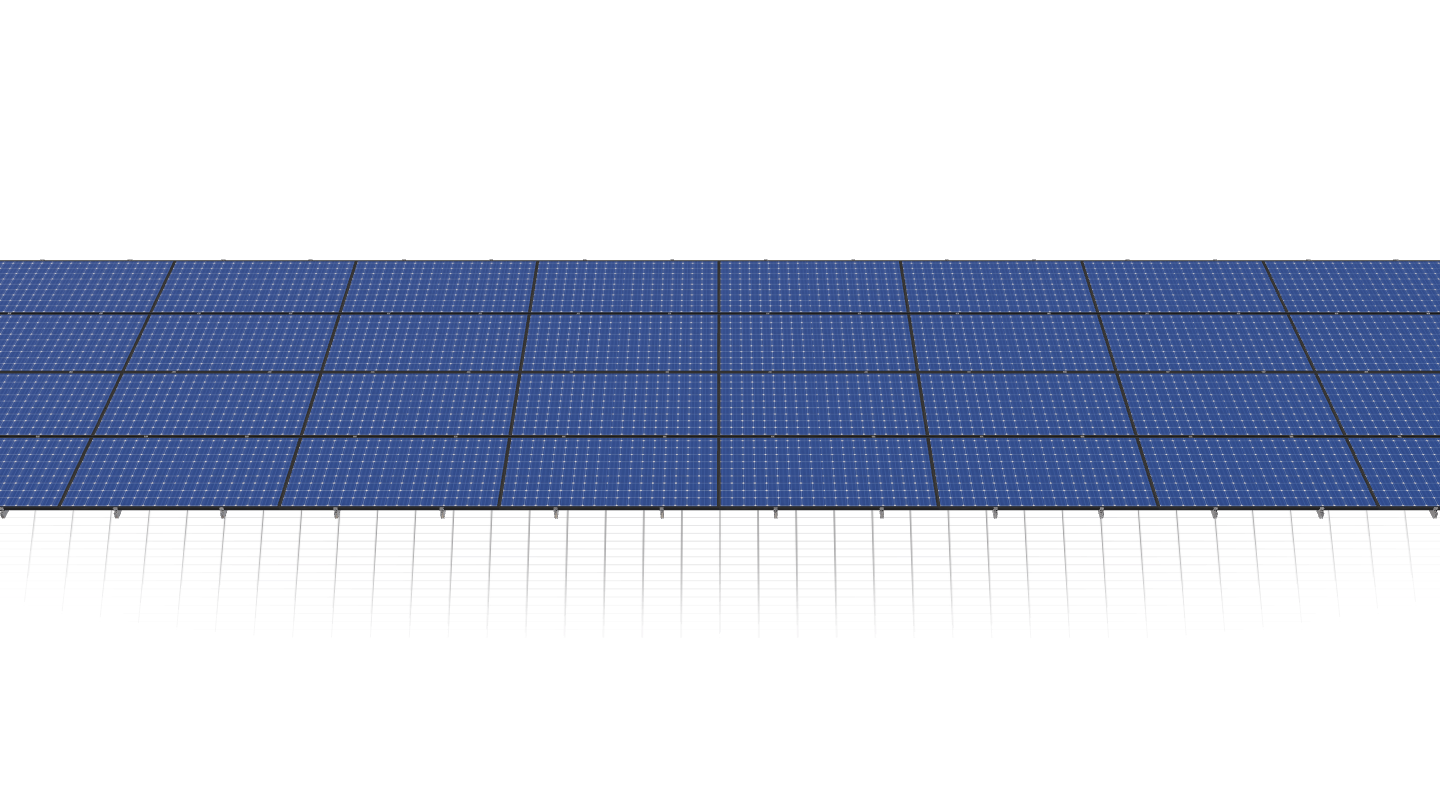

See 3D Model Here
23_Frederickson_Manhattan-RevB
$18,632.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 44.6 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3474.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-45-L-4HX10W-8E24 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1133.76 |
| ARRAY WIDTH | 75.42 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 89.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 11.57 |
| PROJECTED PANEL HEIGHT | 8.53 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 23, FREDERICKSON, MANHATTAN-REVB |
| SITE ADDRESS | 6604, CANAL, RD, MANHATTAN, MT, 59741, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 18632.23 |
| TOTAL WEIGHT | 3474.38 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/db83d2b6-f031-44ce-8178-387b716a6a05.pdf |
|
| ID | 901.00 |
| 3D Solar link |
