This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.2 inches by 39.4 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
24 Panel RevB
$8,496.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.2 inches by 39.4 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

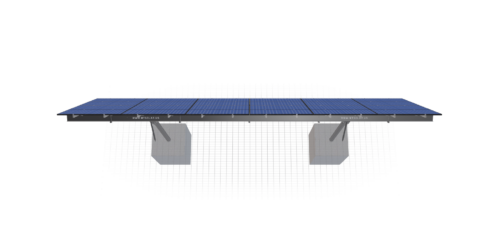

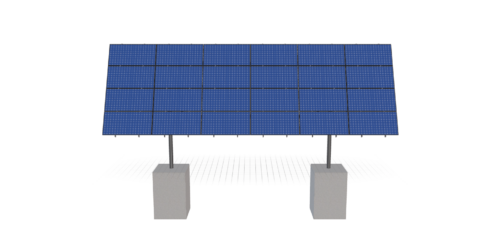

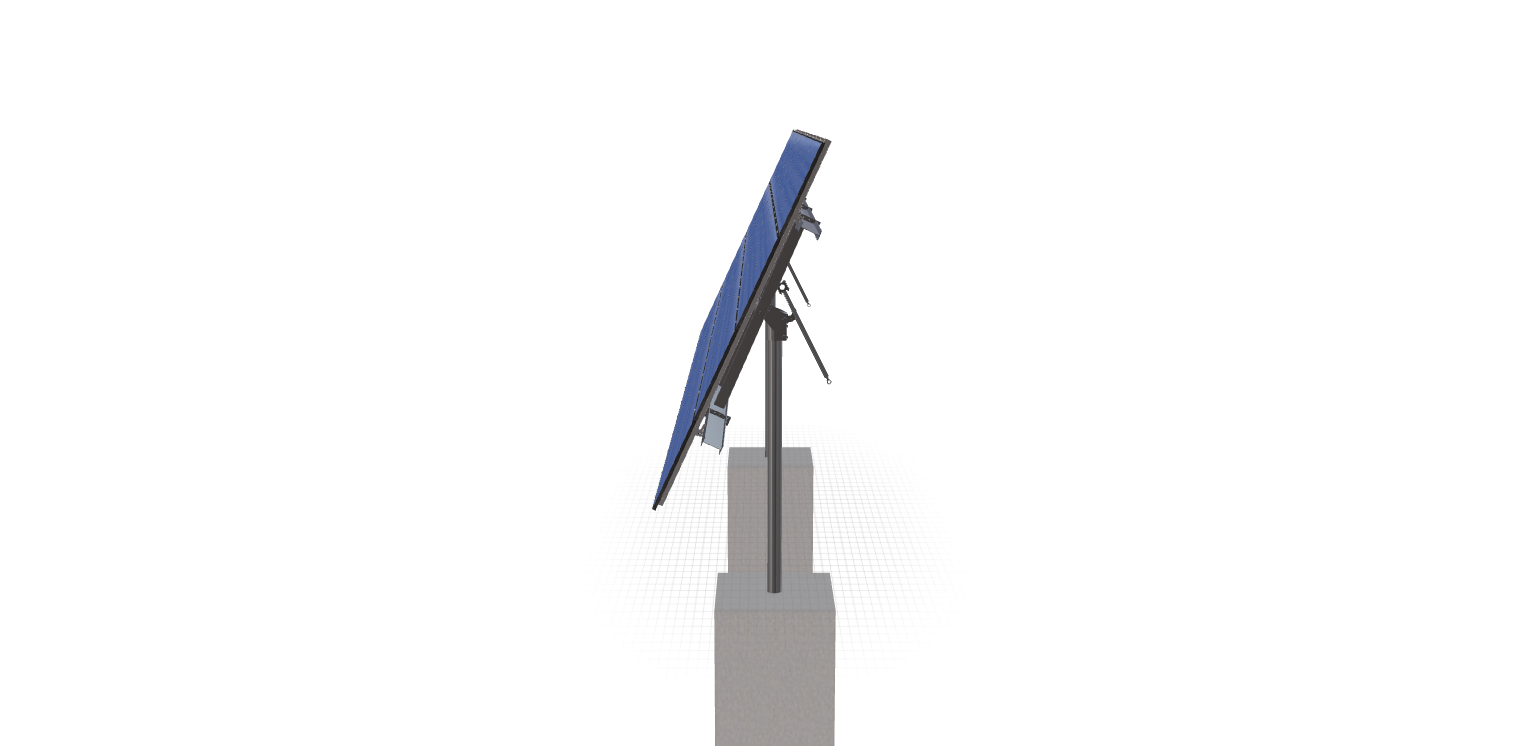

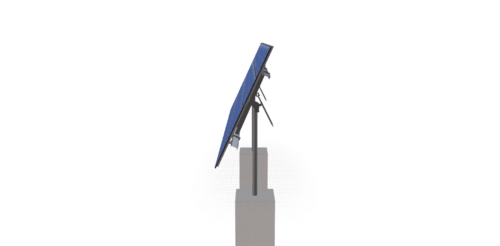

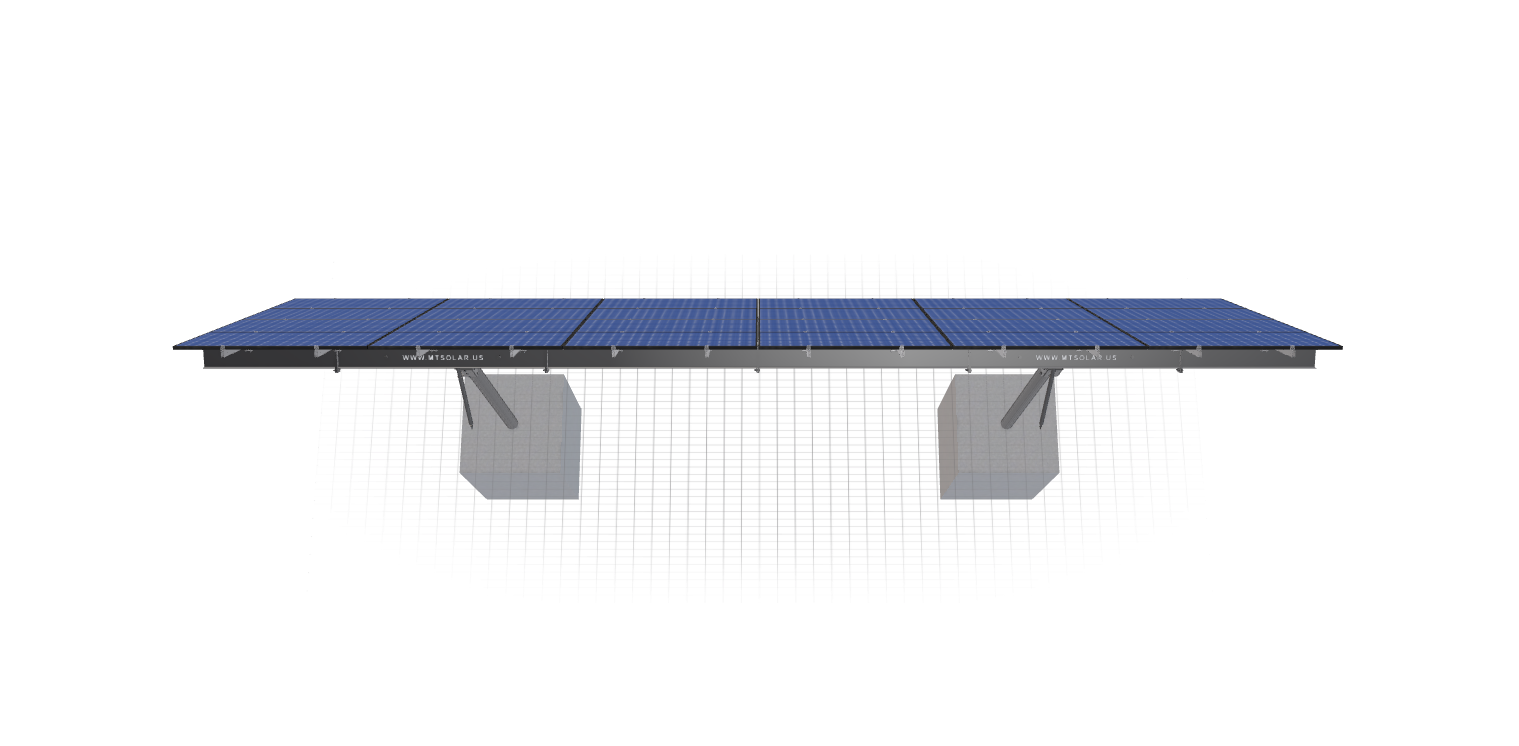

See 3D Model Here
Additional information
| Weight | 1522.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-57-L-4HX6W-LL6H |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.03 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 526.68 |
| ARRAY WIDTH | 39.60 |
| ARRAY HEIGHT | 13.30 |
| RAIL LENGTH | 159.60 |
| MODULE LENGTH | 78.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 16.98 |
| PROJECTED PANEL HEIGHT | 11.90 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 85.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 24, PANEL, REVB |
| SITE ADDRESS | 19, STOCK, DR, WAY, PINEDALE, WY, 82941, USA |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8496.69 |
| TOTAL WEIGHT | 1522.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/ddba8443-1059-4416-b5e5-7d768ea8ddad.pdf |
|
| ID | 1357.00 |
| 3D Solar link |
