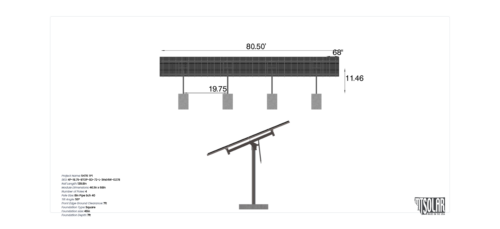

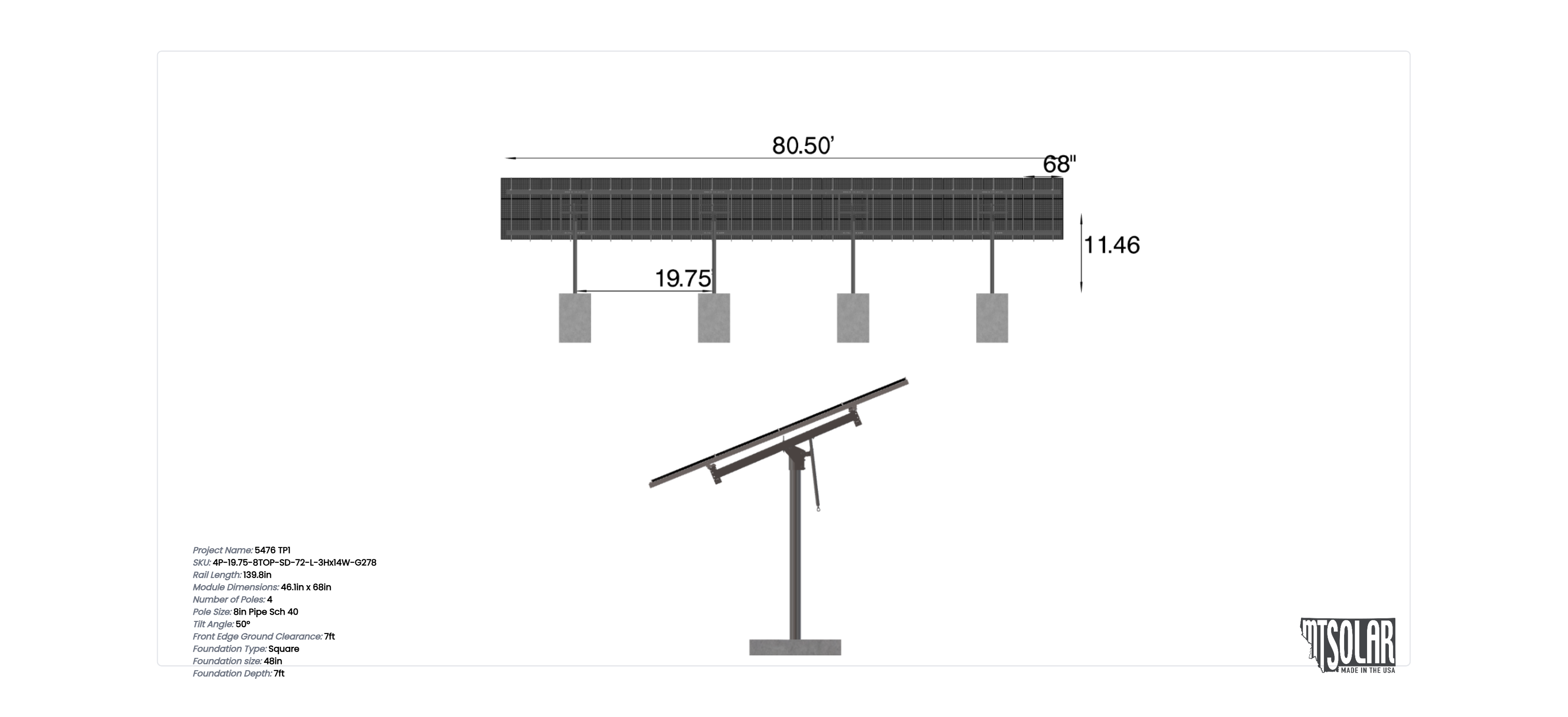

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 46.1 inches and an array layout of 14 wide by 3 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

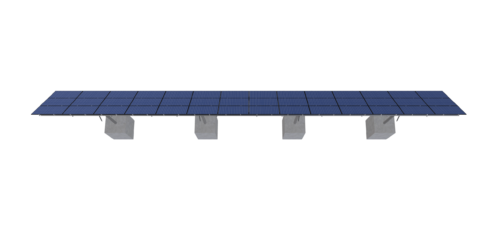

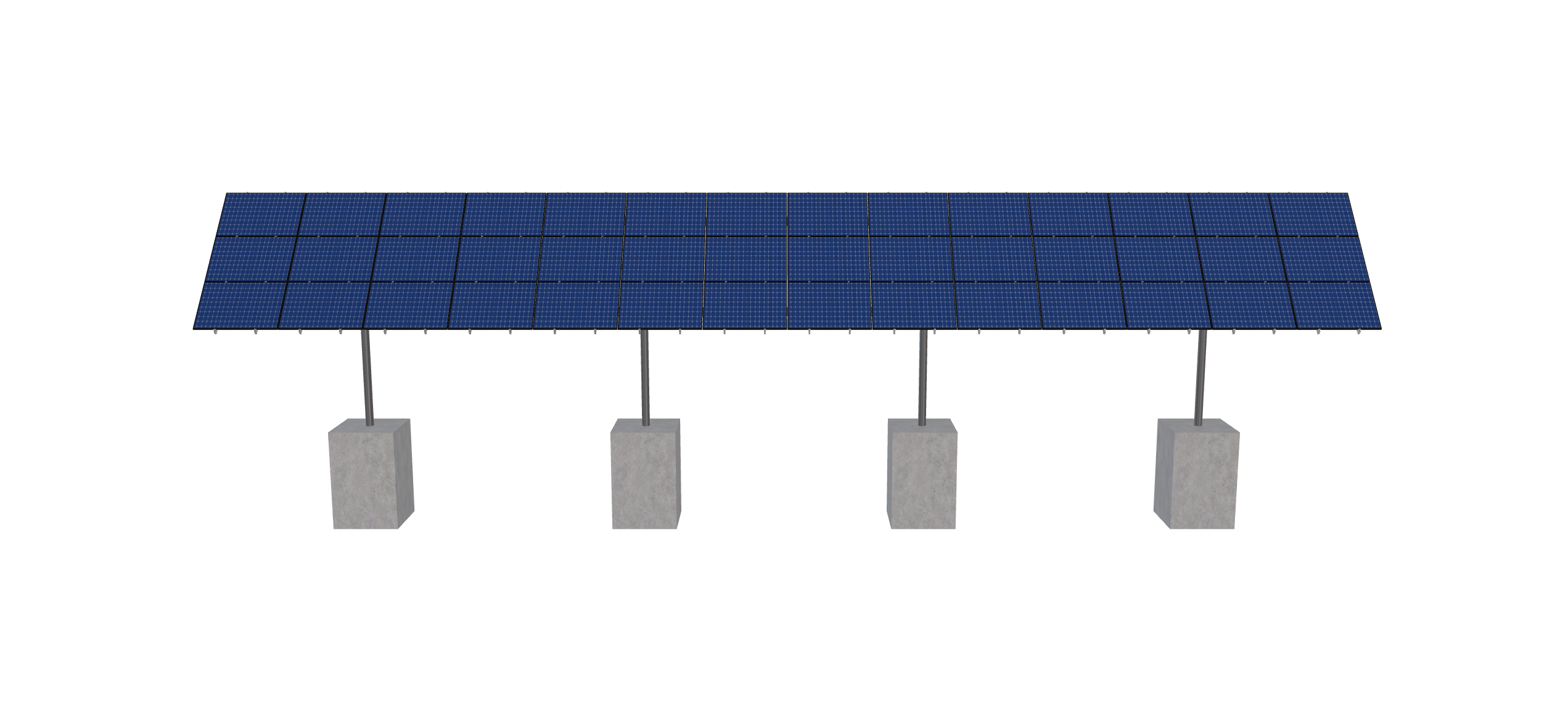

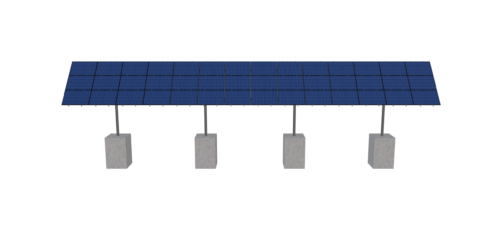

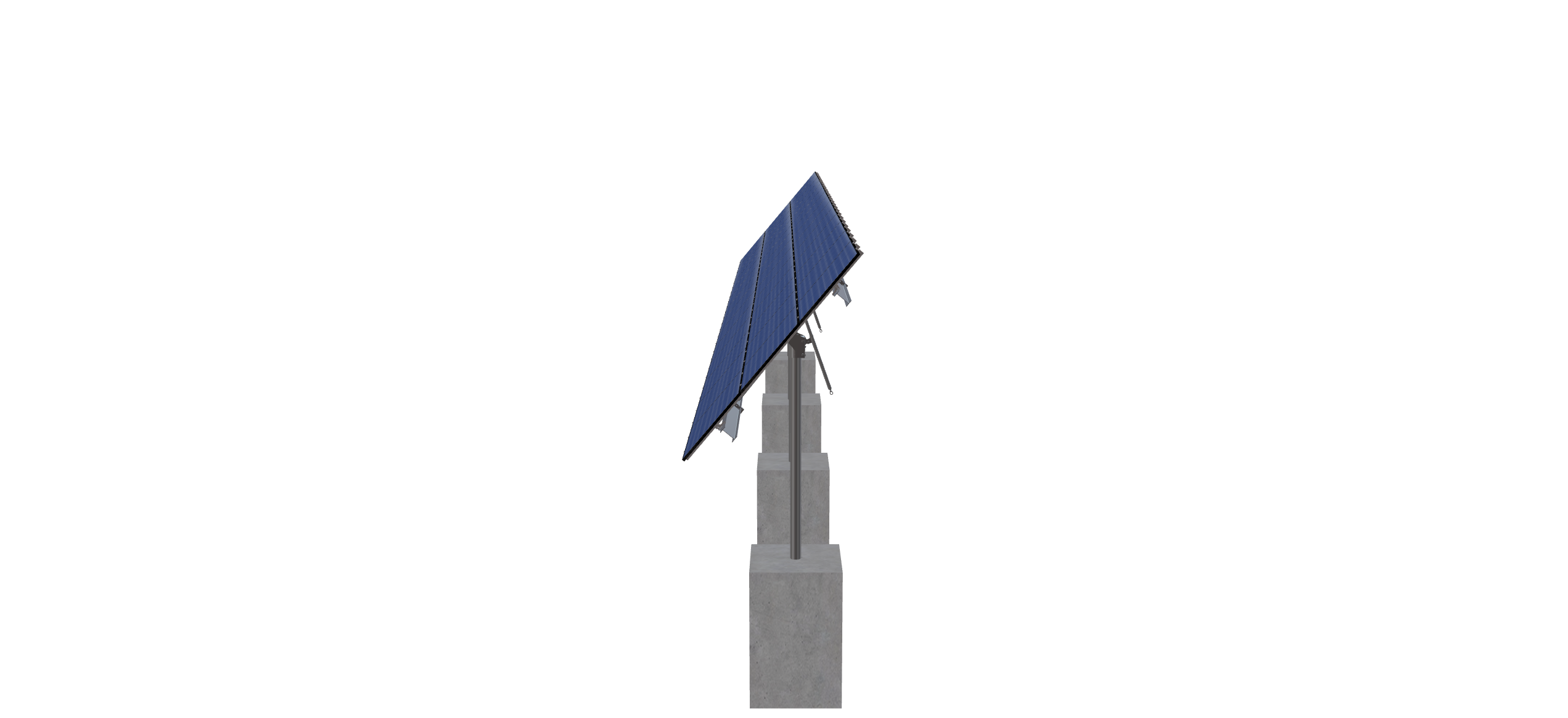

See 3D Model Here
5476 TP1
$18,110.94
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 46.1 inches and an array layout of 14 wide by 3 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3096.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-SD-72-L-3HX14W-G278 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.46 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 4.00 |
| MODULE AREA | 937.83 |
| ARRAY WIDTH | 80.50 |
| ARRAY HEIGHT | 11.65 |
| RAIL LENGTH | 139.80 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 15.92 |
| PROJECTED PANEL HEIGHT | 8.92 |
| DESIGNER NAME | V.MCC |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5415172121.00 |
| PROJECT ID | 5476, TP1 |
| SITE ADDRESS | 42755, FISH, HATCHERY, DR, SCIO, OR, 97374, USA |
| MODULE WIDTH | 46.10 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 17248.51 |
| TOTAL WEIGHT | 3096.38 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/61173bf4-1161-48ac-ba01-043527760264.pdf |
|
| ID | 9742.00 |
| 3D Solar link |
