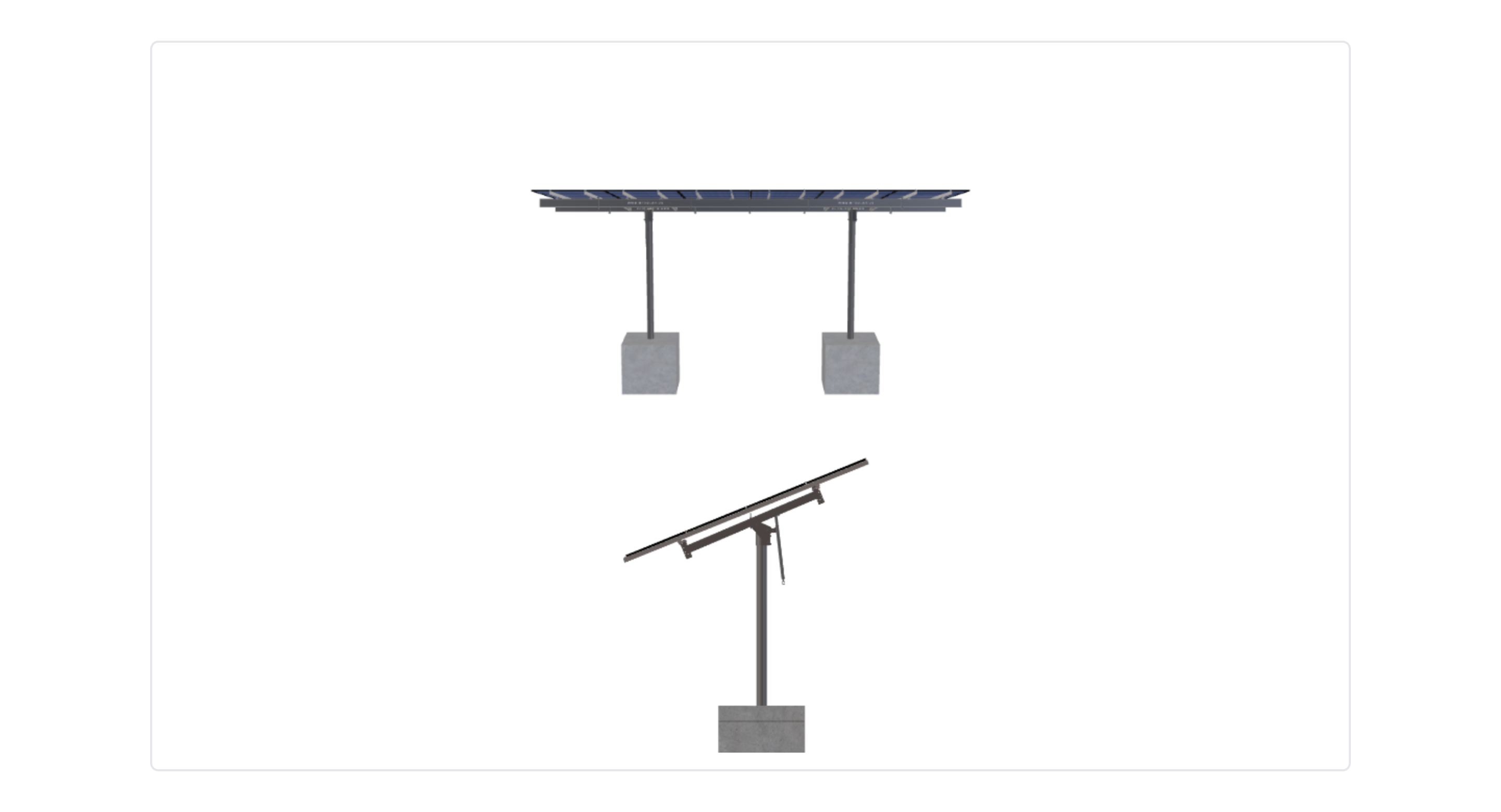

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
645 Broadway-JB-RevE
$8,106.53
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1423.32 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-17-6TOP-SD-57-L-4HX6W-GEGB |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 11.31 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 4.25 |
TILT ANGLE | 10.00 |
CANTILEVER | 408.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 2.00 |
MODULE AREA | 517.72 |
ARRAY WIDTH | 34.40 |
ARRAY HEIGHT | 15.05 |
RAIL LENGTH | 180.60 |
MODULE LENGTH | 67.80 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 34.00 |
GROUND TO TOP | 12.60 |
PROJECTED PANEL HEIGHT | 2.58 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | 645, BROADWAY-JB-REVE |
SITE ADDRESS | 645, BROADWAY, CHULA, VISTA, CA, 91910, USA |
MODULE WIDTH | 44.65 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 8106.53 |
TOTAL WEIGHT | 1423.32 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/4345ade0-8412-46f6-9e4b-fcb67d568339.pdf |
|
ID | 4729.00 |
3D Solar link |
