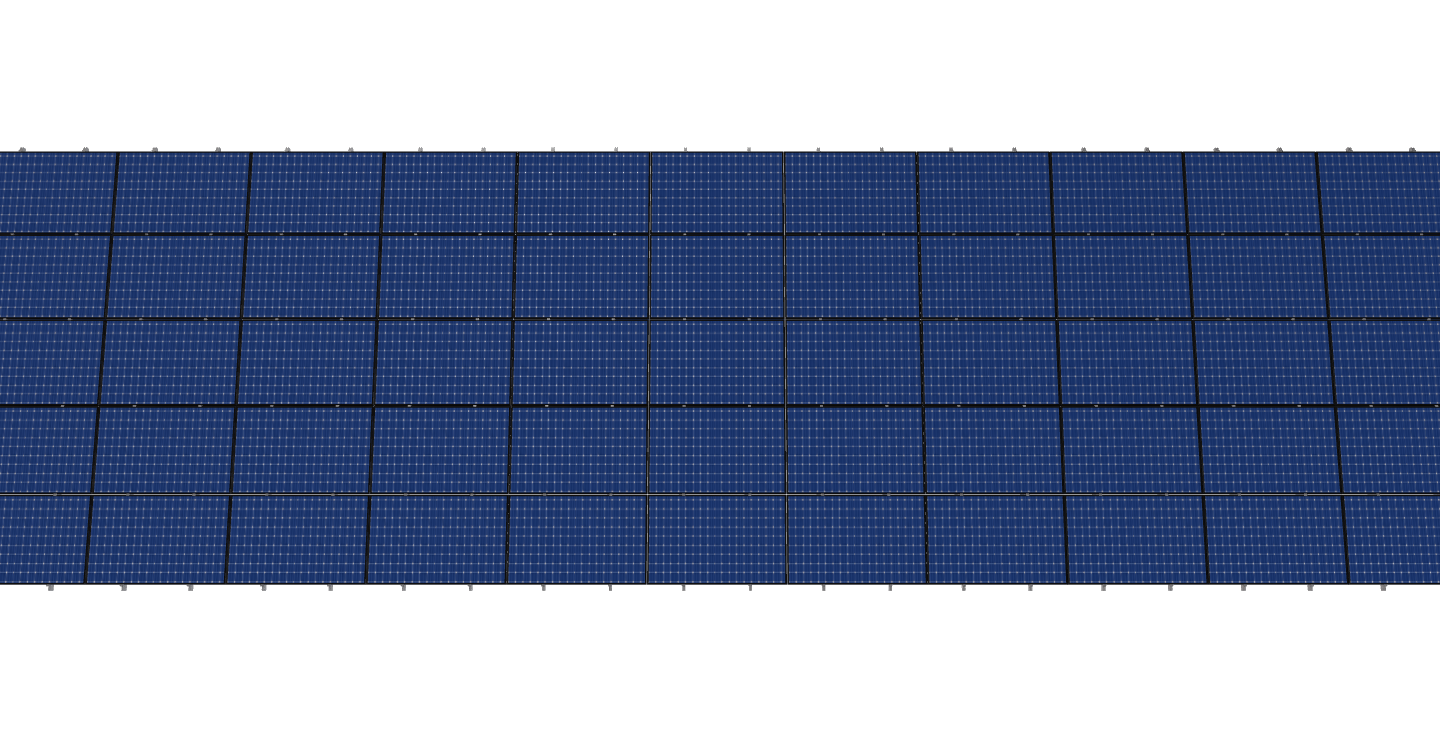

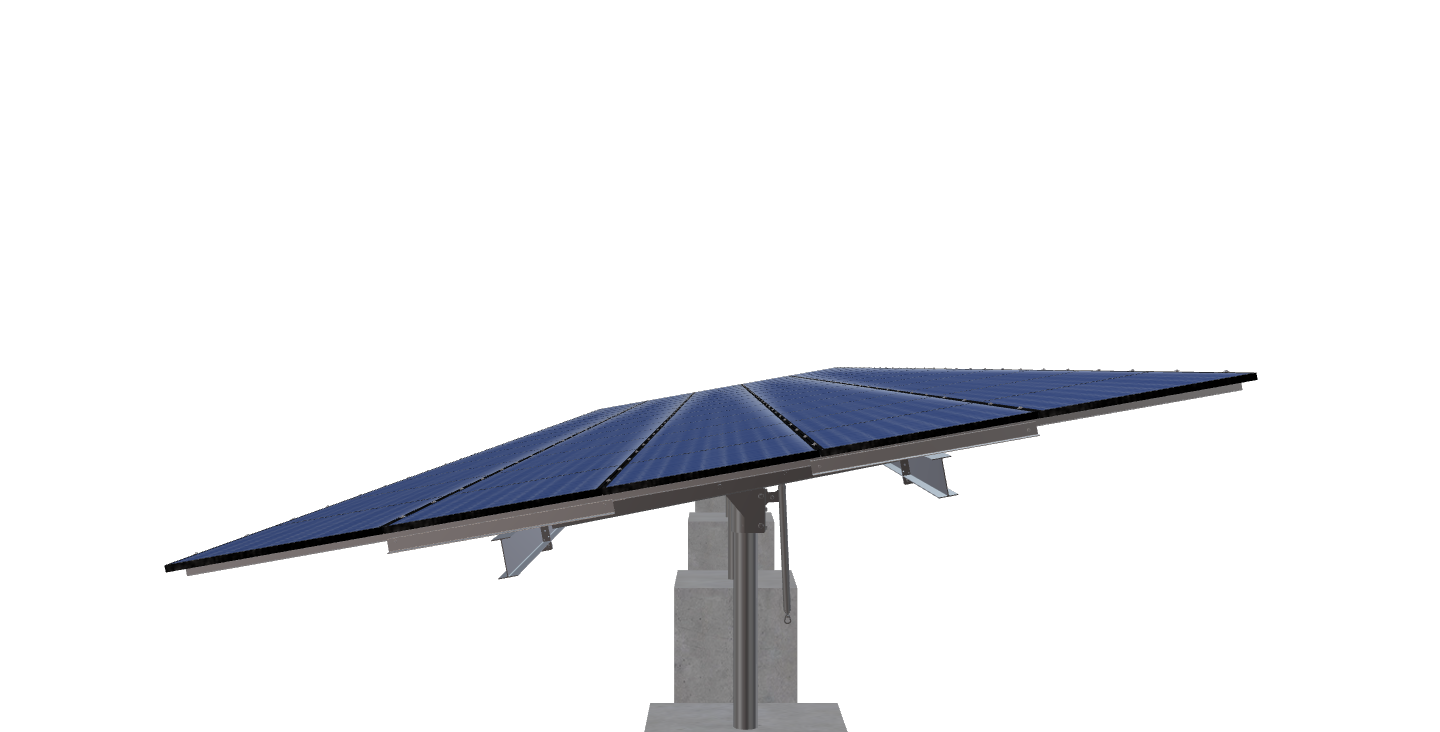

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 15 wide by 5 high.

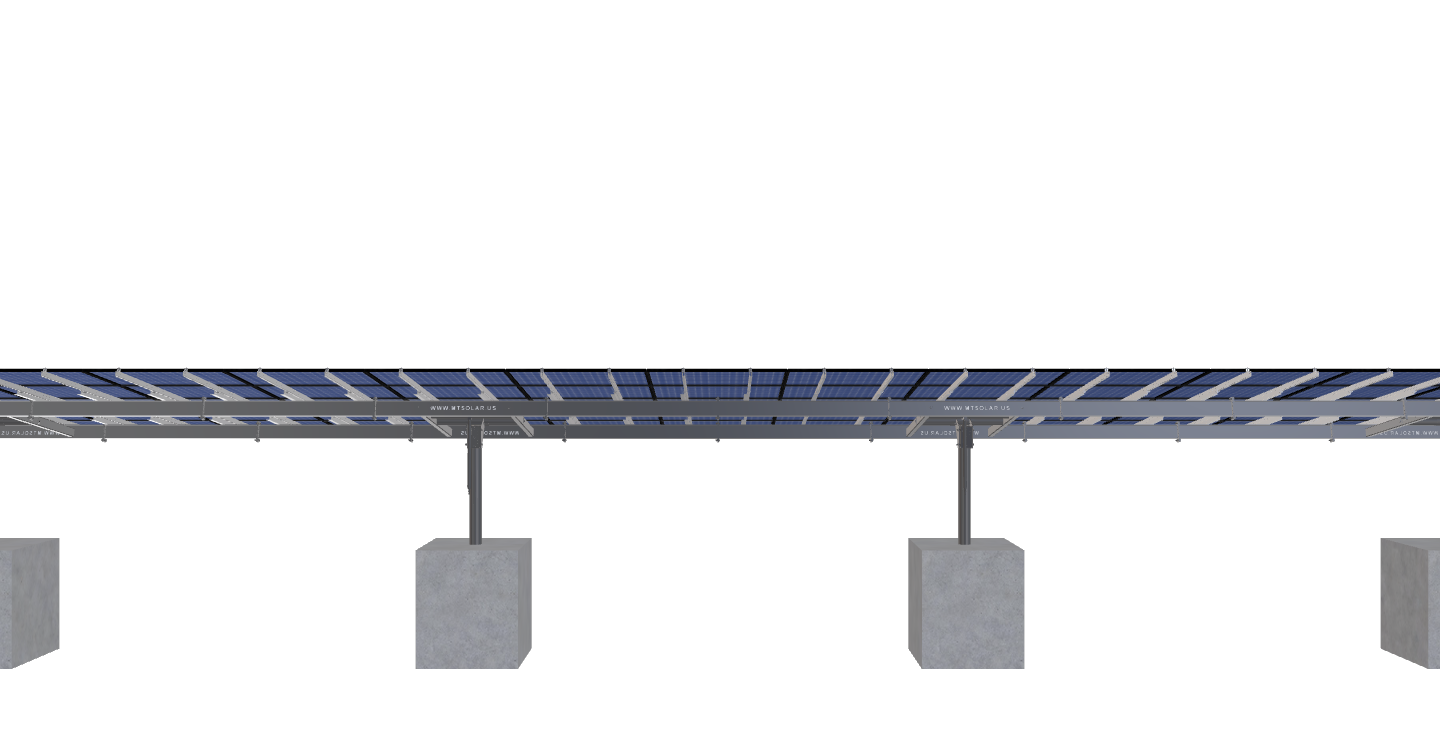

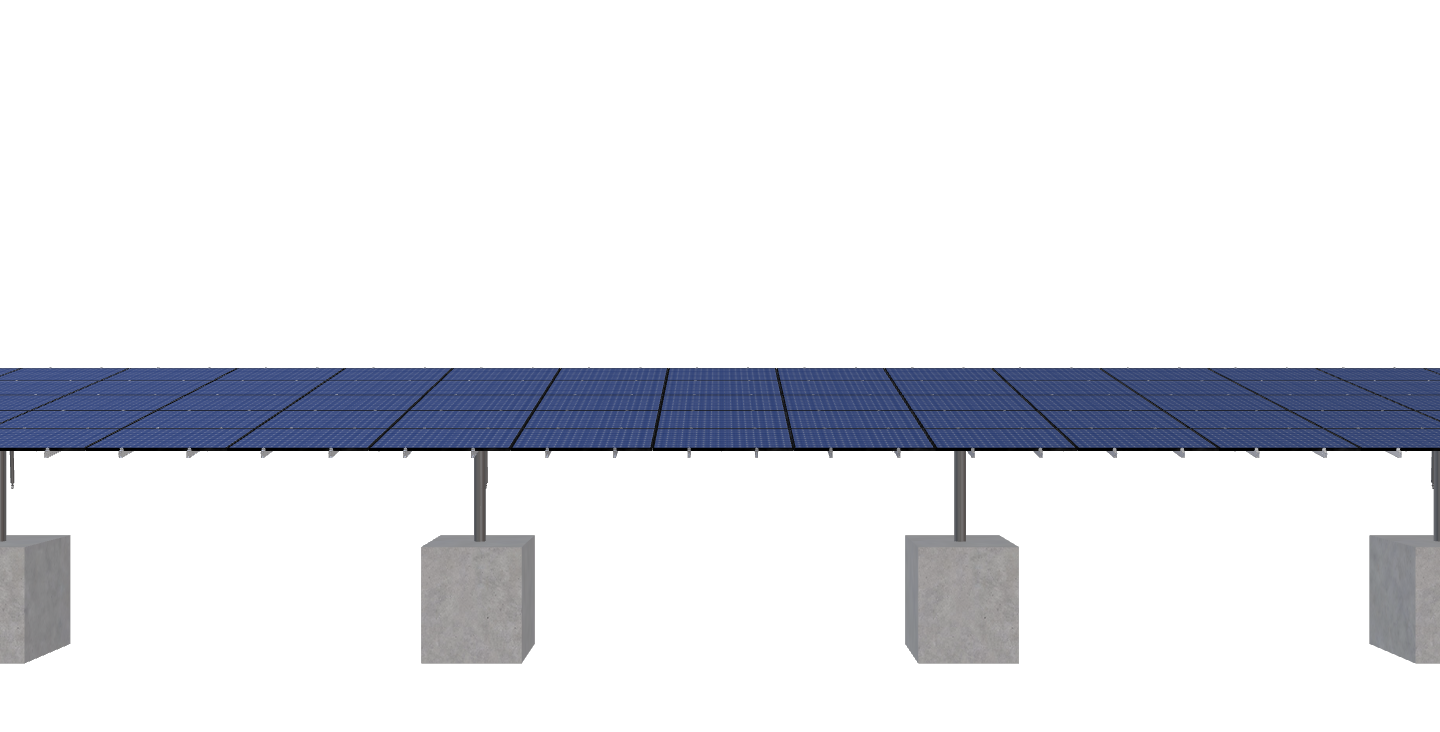

This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
645Broadway-RevA
$23,439.59
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4768.719999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-6TOP-HD-57-L-5HX15W-6FJH |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 5.63 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1617.88 |
| ARRAY WIDTH | 86.00 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 7.25 |
| PROJECTED PANEL HEIGHT | 3.23 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 645BROADWAY-REVA |
| SITE ADDRESS | 645, BROADWAY, CHULA, VISTA, CA, 91910, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 23439.59 |
| TOTAL WEIGHT | 4768.72 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/abaf0884-5ef5-4194-a633-388cc05a08de.pdf |
|
| ID | 1558.00 |
| 3D Solar link |
