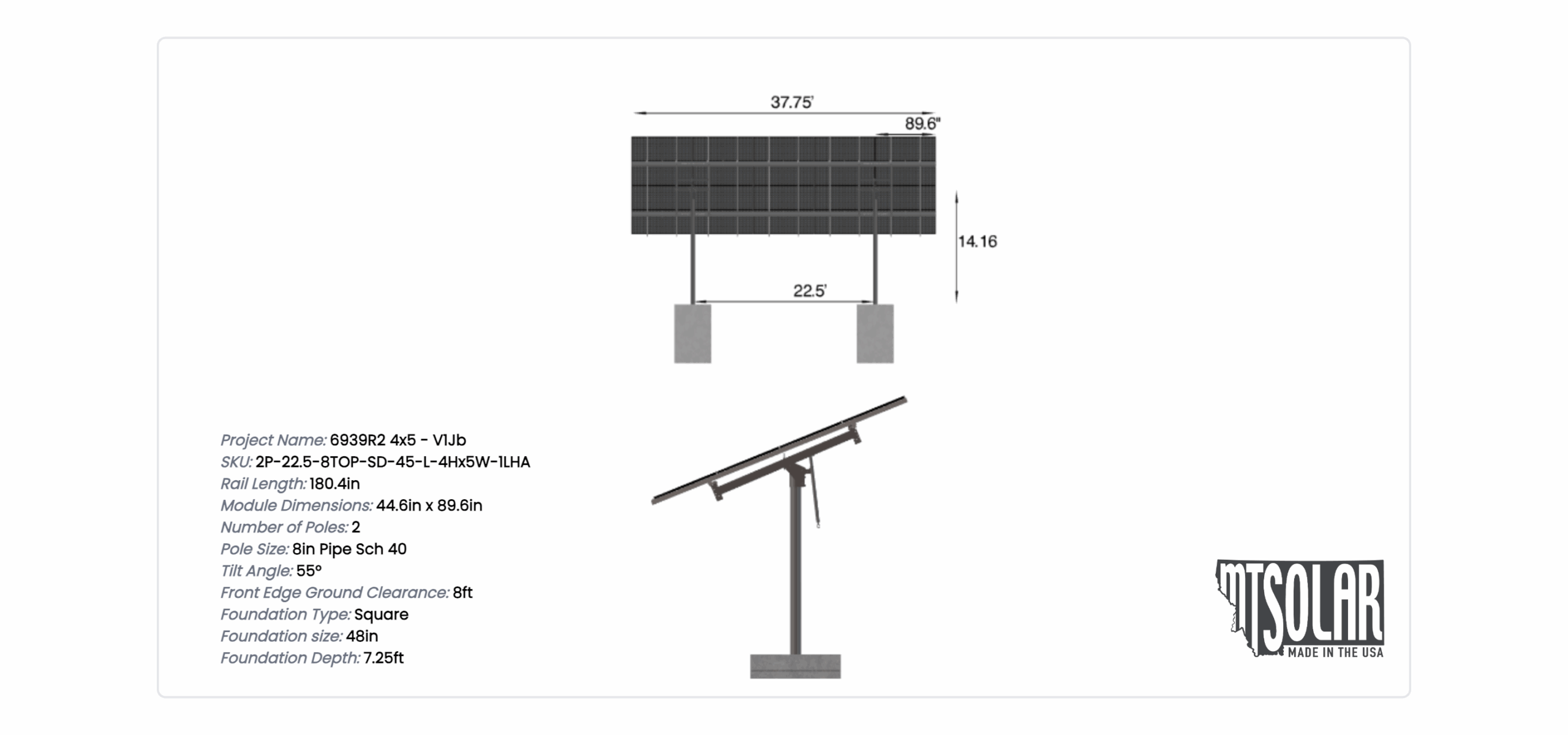

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.6 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

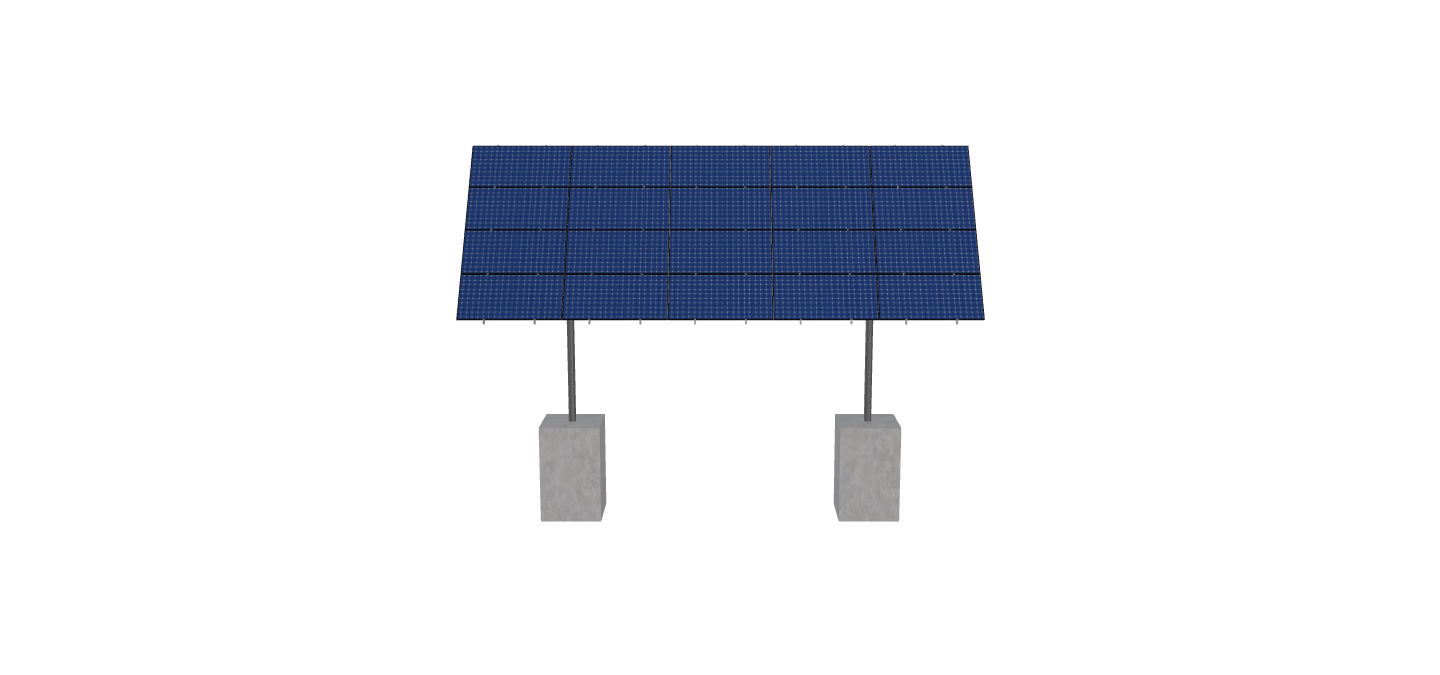

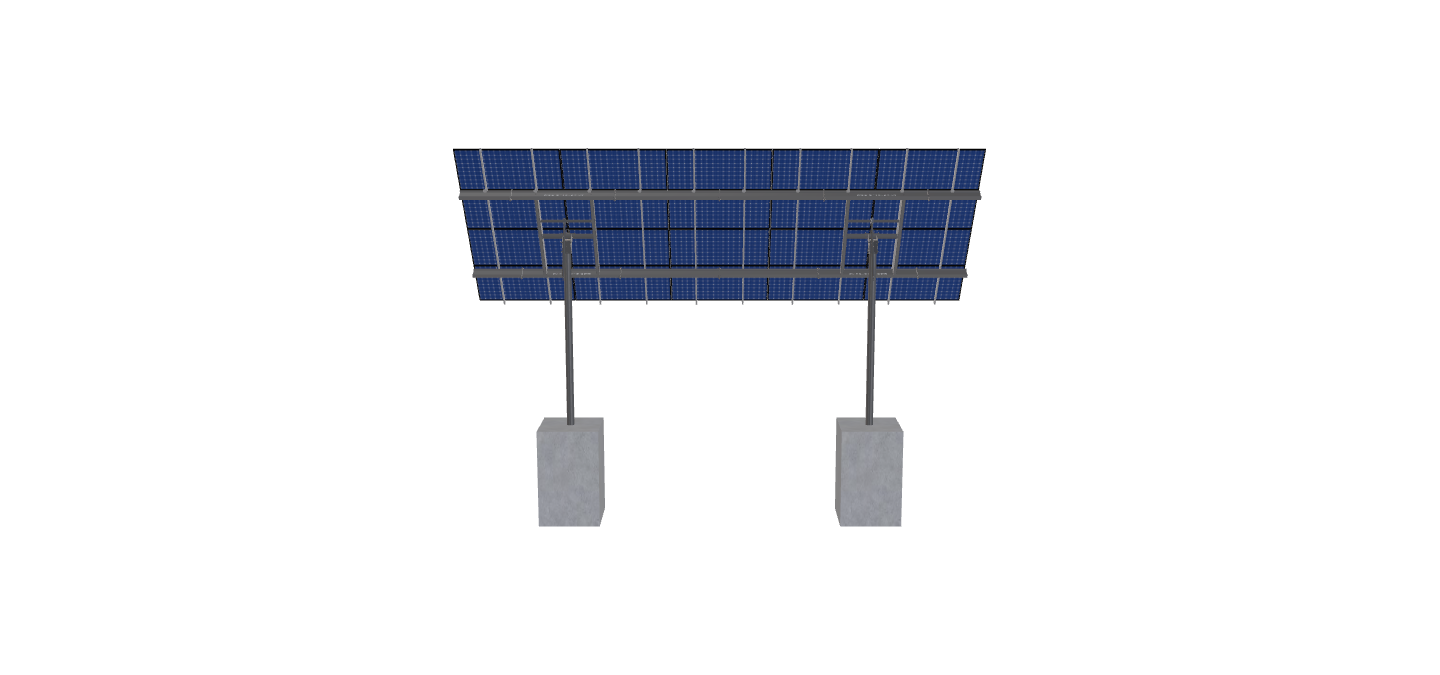

See 3D Model Here
6939R2 4×5 – V1Jb
$8,555.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.6 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1509.9 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-SD-45-L-4HX5W-1LHA |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.16 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 567.51 |
| ARRAY WIDTH | 37.75 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 89.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 20.31 |
| PROJECTED PANEL HEIGHT | 12.31 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | MARK |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7203202093.00 |
| PROJECT ID | 6939R2, 4X5, -, V1JB |
| SITE ADDRESS | 6939, VILLAGE, RD, PARKER, CO, 80134, USA |
| MODULE INFO | APTOS, 550W, BIFACIAL |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8555.57 |
| TOTAL WEIGHT | 1509.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/f2b5fb26-c857-494b-b303-f283d402a29a.pdf |
|
| ID | 13216.00 |
