This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.94 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

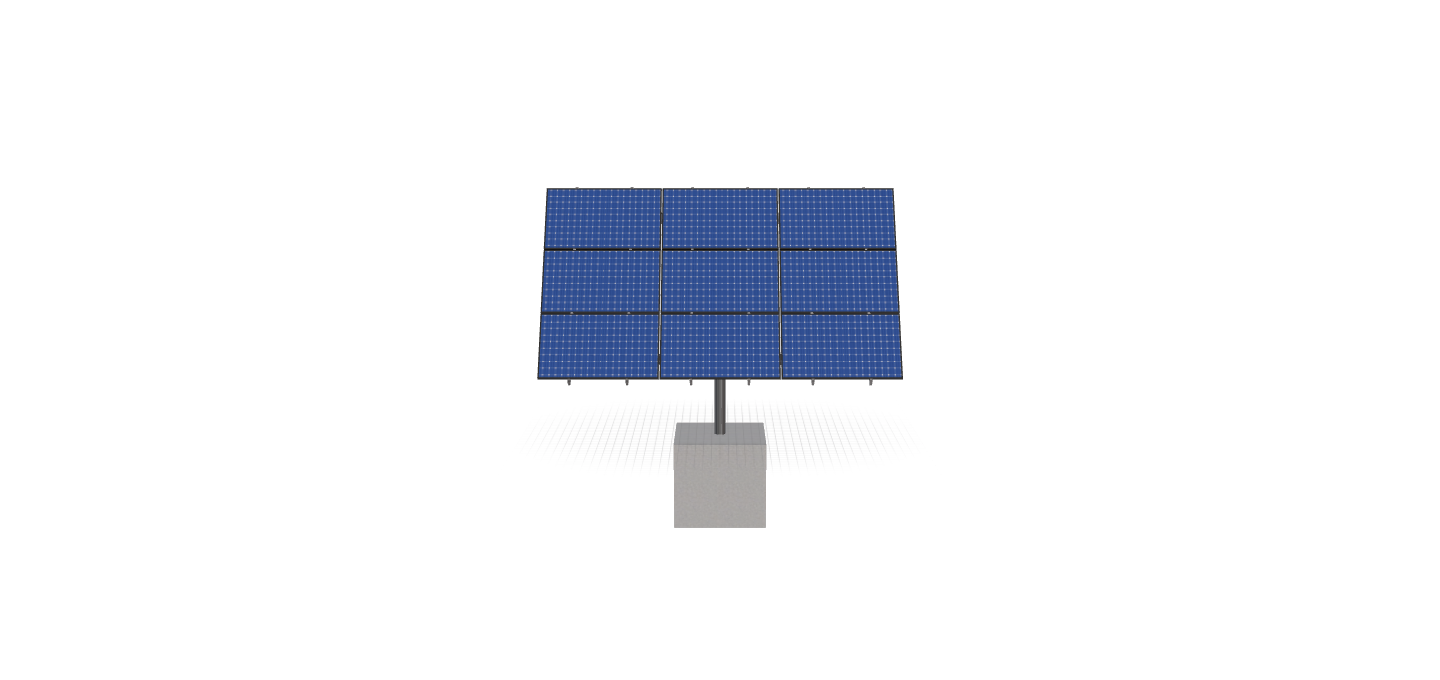

See 3D Model Here
9panelproject-RevA
$3,813.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.94 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

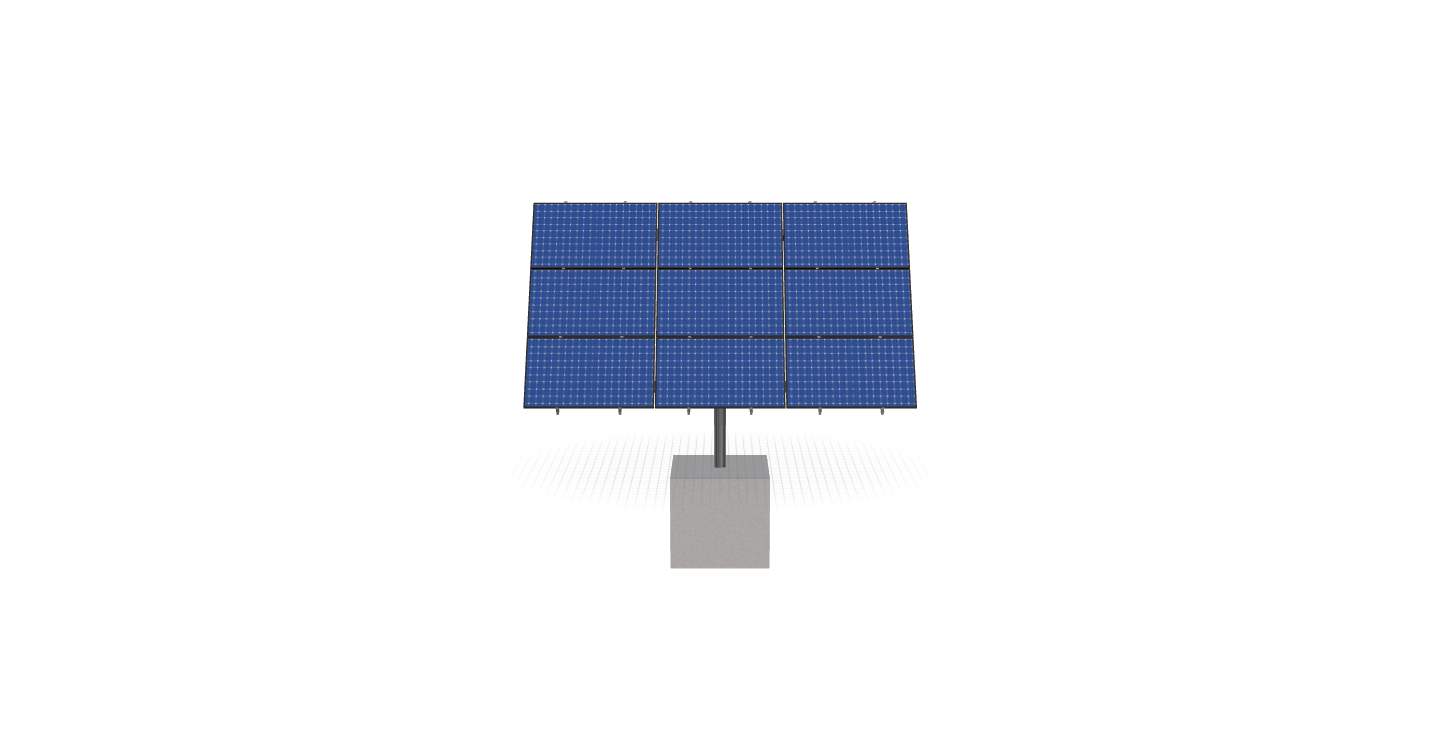

See 3D Model Here
Additional information
| Weight | 649.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-57-L-3HX3W-1KB4 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.49 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 181.56 |
| ARRAY WIDTH | 17.52 |
| ARRAY HEIGHT | 10.36 |
| RAIL LENGTH | 124.32 |
| MODULE LENGTH | 69.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 11.92 |
| PROJECTED PANEL HEIGHT | 8.86 |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 145.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 9PANELPROJECT-REVA |
| SITE ADDRESS | 600, MAIN, ST, PITKIN, CO, 81241, USA |
| MODULE WIDTH | 40.94 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3632.20 |
| TOTAL WEIGHT | 649.38 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/5f6484e2-294e-44e1-9d13-89f4a93d2ec0.pdf |
|
| ID | 1323.00 |
| 3D Solar link |
