This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41.3 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

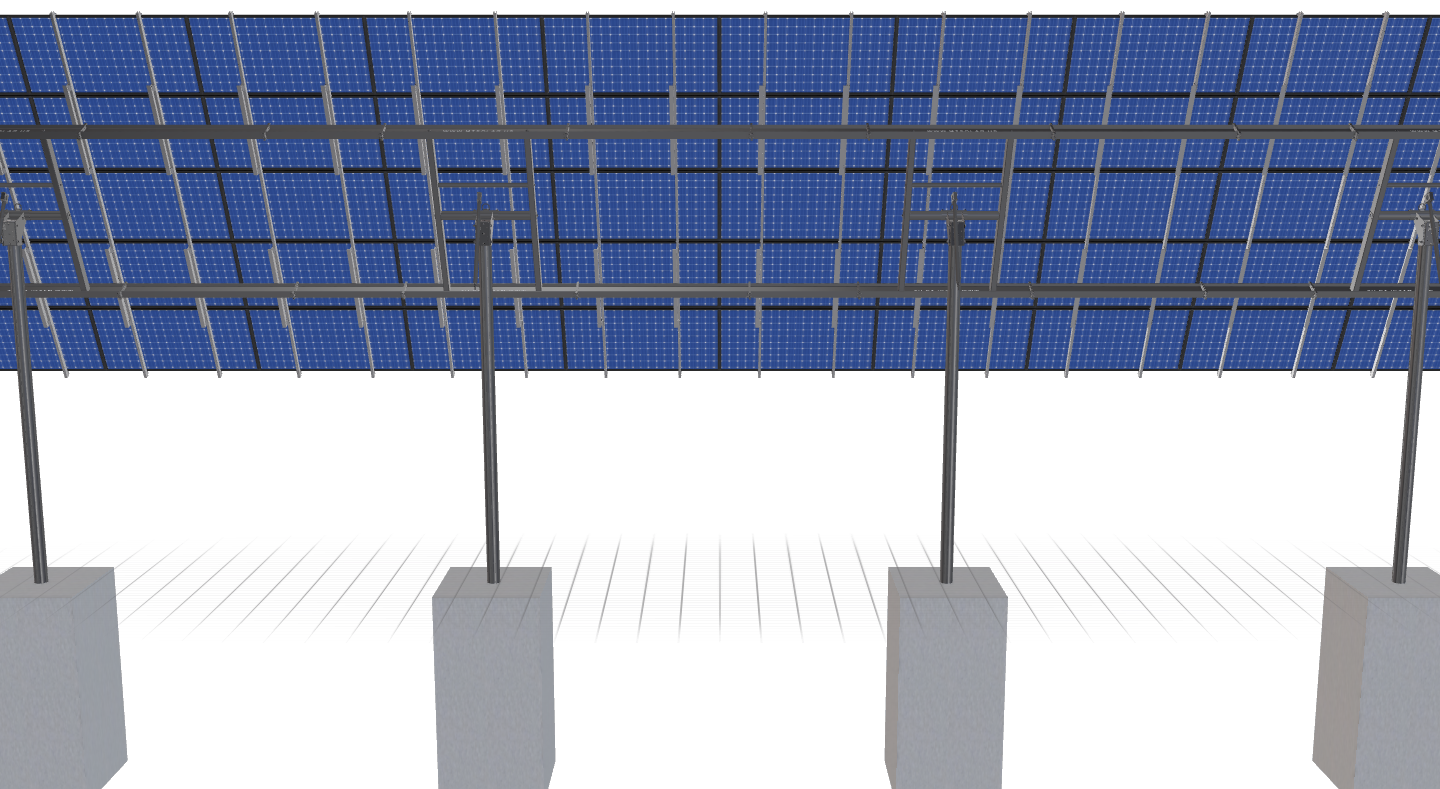

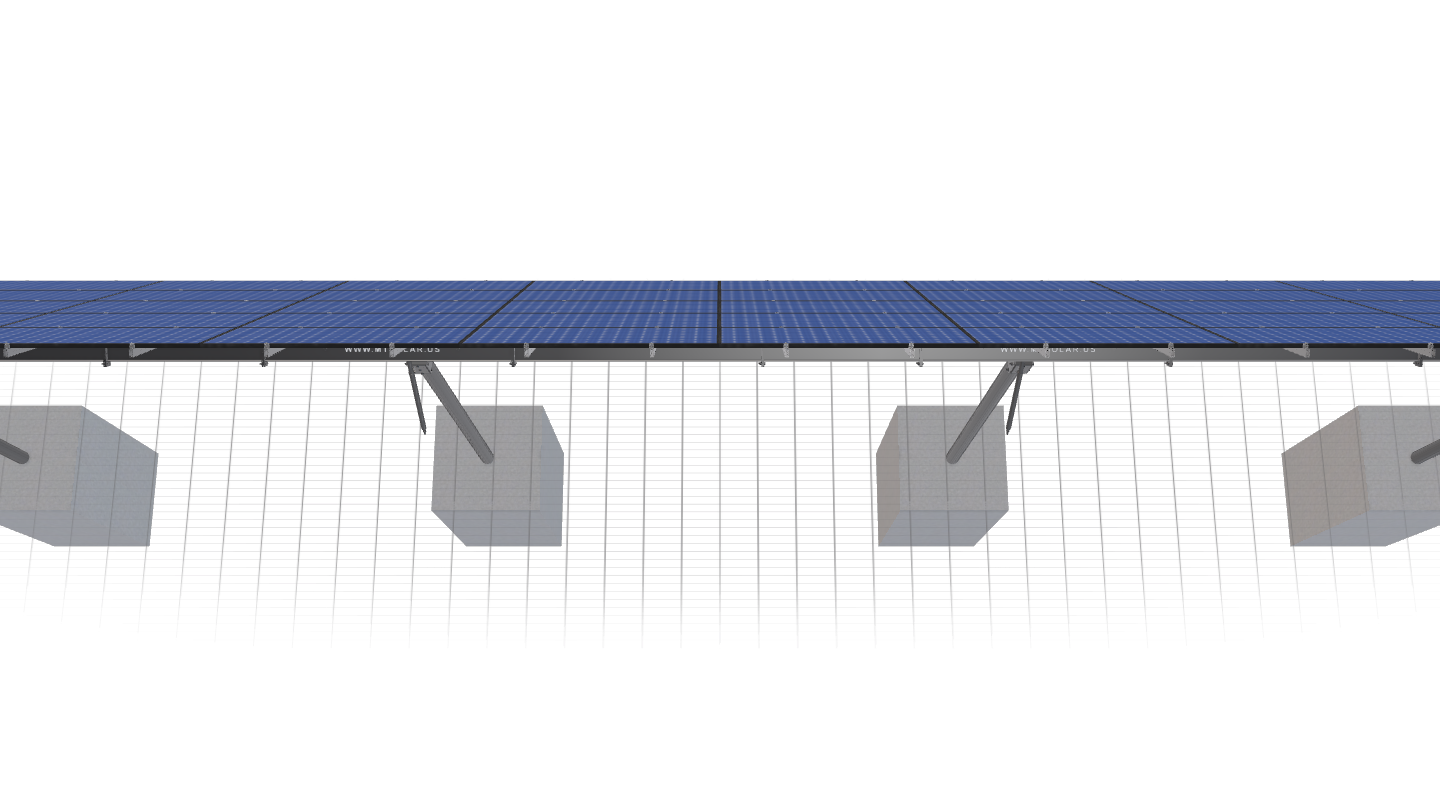

See 3D Model Here
AES-RevA
$20,492.66
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41.3 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4106.62 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-HD-24-L-5HX10W-C5B8 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.89 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1233.68 |
| ARRAY WIDTH | 70.83 |
| ARRAY HEIGHT | 17.42 |
| RAIL LENGTH | 209.00 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 23.69 |
| PROJECTED PANEL HEIGHT | 15.60 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | AES-REVA |
| SITE ADDRESS | 1305, CRESTLINE, DR, FAIRBANKS, AK, 99712, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20492.66 |
| TOTAL WEIGHT | 4106.62 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/e92b8a78-bfcd-49aa-b308-843b3c974d5d.pdf |
|
| ID | 799.00 |
| 3D Solar link |
