This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

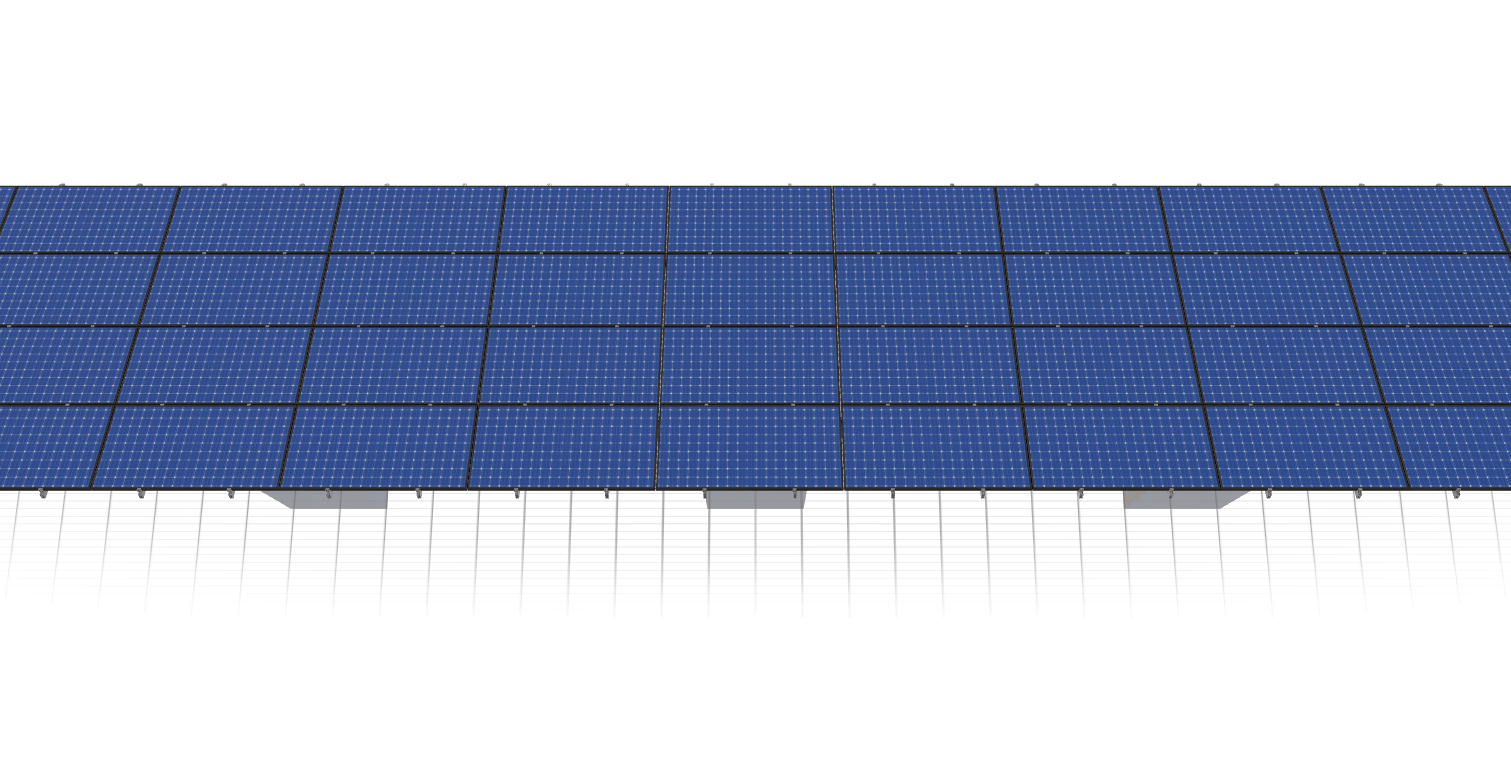

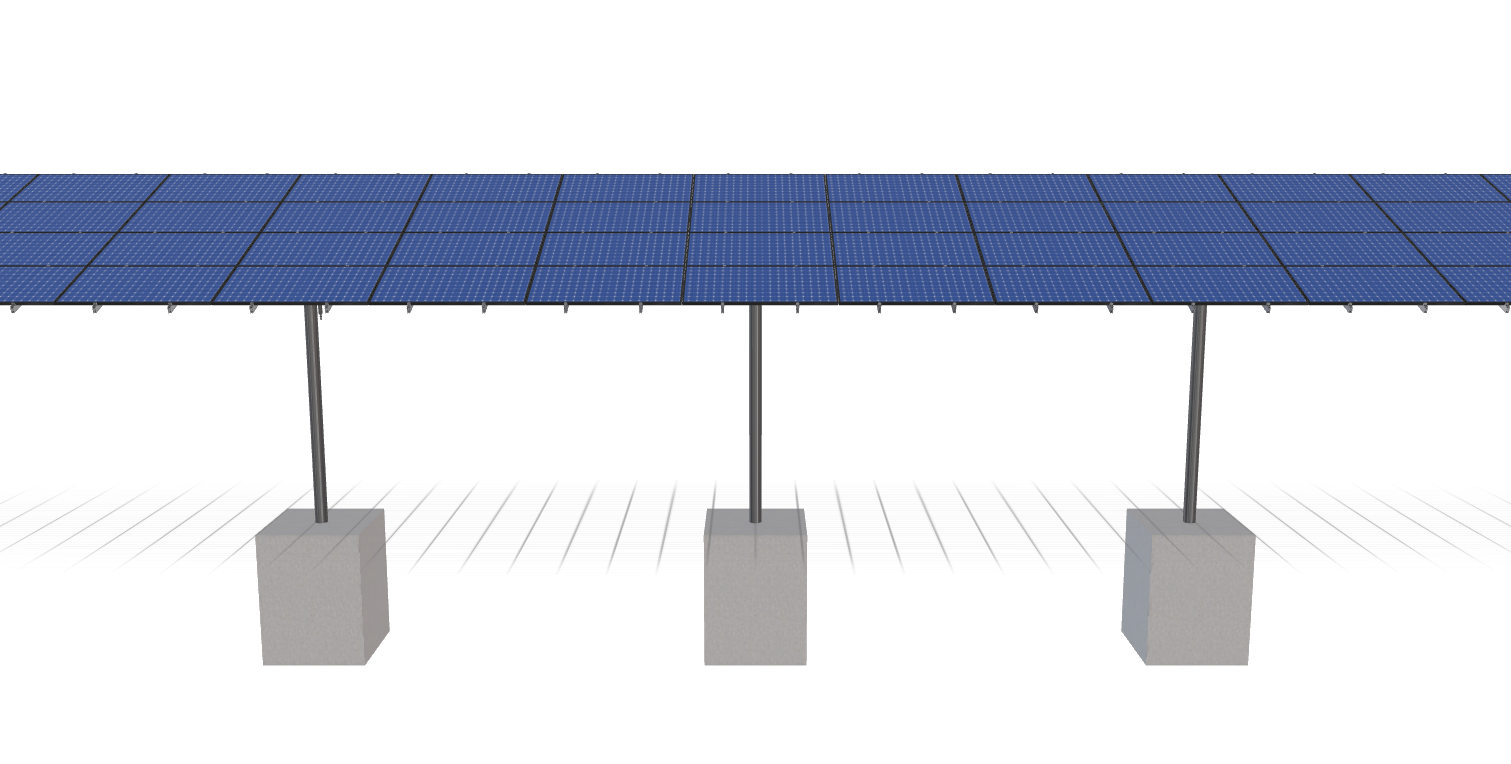

See 3D Model Here
Albany County Fairgrounds
$23,826.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4391.97 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-45-L-4HX15W-5IJF |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.37 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 1128.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1296.88 |
| ARRAY WIDTH | 93.75 |
| ARRAY HEIGHT | 13.83 |
| RAIL LENGTH | 166.00 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 94.00 |
| GROUND TO TOP | 14.70 |
| PROJECTED PANEL HEIGHT | 4.67 |
| PROJECT ID | ALBANY, COUNTY, FAIRGROUNDS |
| SITE ADDRESS | 3510, S, 3RD, ST, LARAMIE, WY, 82070, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 23826.34 |
| TOTAL WEIGHT | 4391.97 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/d881b107-8180-4bfc-8e7d-796c204e08ae.pdf |
|
| ID | 1408.00 |
| 3D Solar link |
