This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.8 inches by 51.2 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

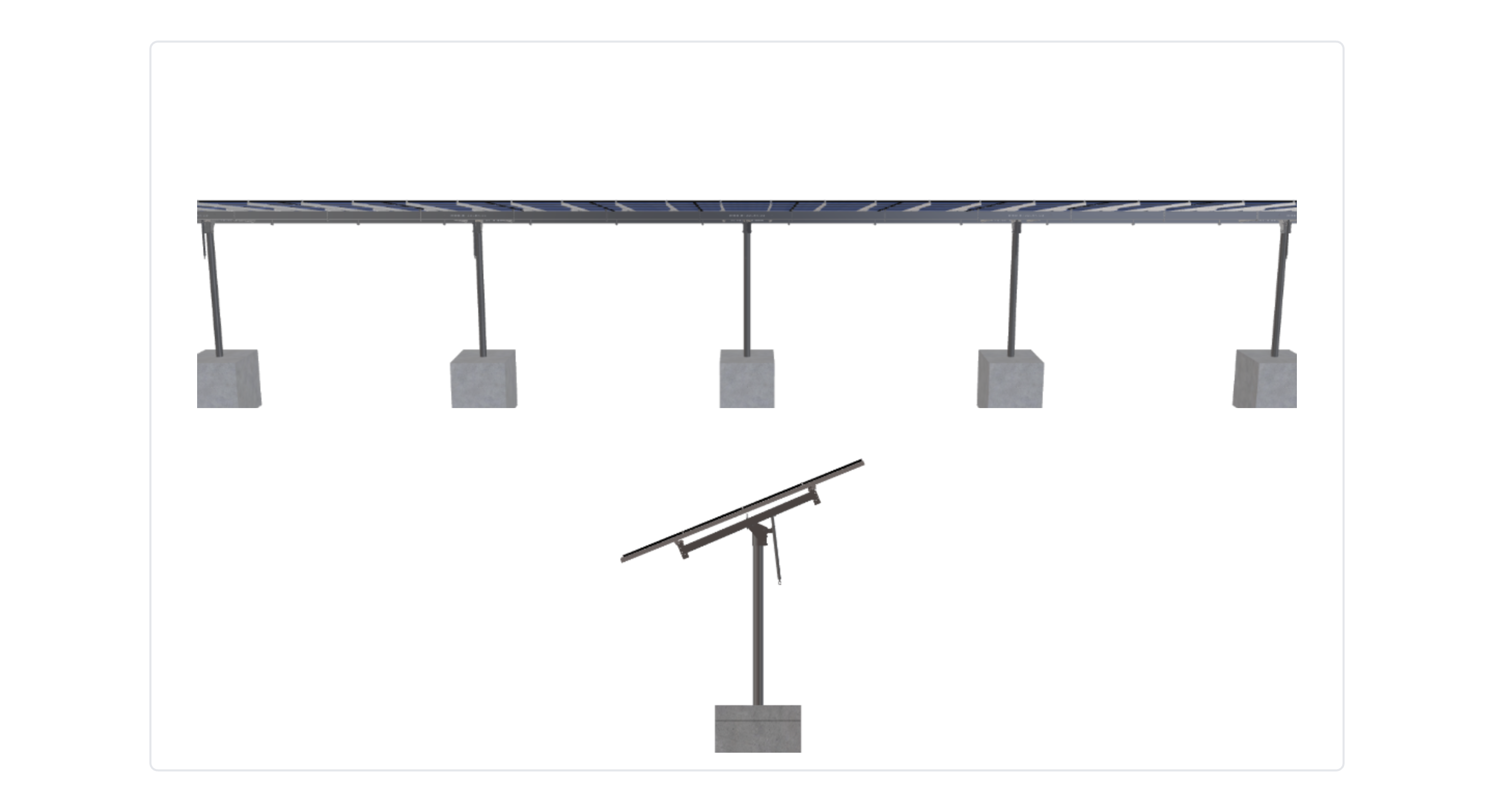

See 3D Model Here
anJoaquinValleyAirDistrictSOLARProject-JB-RevA
$23,360.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.8 inches by 51.2 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4651.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-24-L-5HX13W-6F7I |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.87 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 1218.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 2212.33 |
| ARRAY WIDTH | 102.70 |
| ARRAY HEIGHT | 21.54 |
| RAIL LENGTH | 258.50 |
| MODULE LENGTH | 93.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 101.50 |
| GROUND TO TOP | 13.72 |
| PROJECTED PANEL HEIGHT | 3.70 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | ANJOAQUINVALLEYAIRDISTRICTSOLARPROJECT-JB-REVA |
| SITE ADDRESS | 1990, E, GETTYSBURG, AVE, FRESNO, CA, 93726, USA |
| MODULE WIDTH | 51.20 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 23360.21 |
| TOTAL WEIGHT | 4651.72 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/fa1a60d5-072d-46b2-9a2e-d94d014e5b90.pdf |
|
| ID | 2919.00 |
| 3D Solar link |
