ArdenDesign2

$5,952.01

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

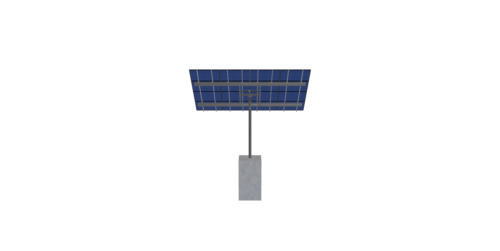

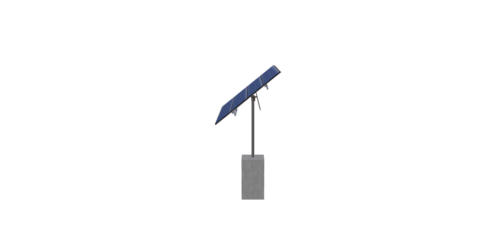

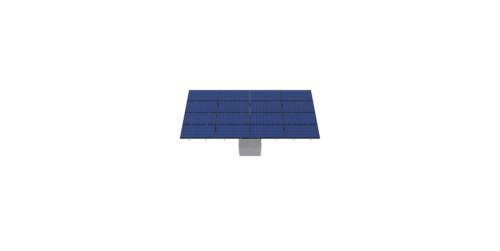

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-10TOP-XD-84-L-4Hx4W-1614 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1106.33 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-10TOP-XD-84-L-4HX4W-1614

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.77

WING SPAN

84.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

39.00

CANTILEVER

258.00

GROUND CLEARANCE

8.00

NO POLES

1.00

MODULE AREA

348.83

ARRAY WIDTH

23.00

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

17.49

PROJECTED PANEL HEIGHT

9.44

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

ARDENDESIGN2

SITE ADDRESS

422, E, 600, RD, OVERBROOK, KS, 66524, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

5952.01

TOTAL WEIGHT

1106.33

TOTAL PALLETS

1.00
