This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.25 inches by 41.25 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

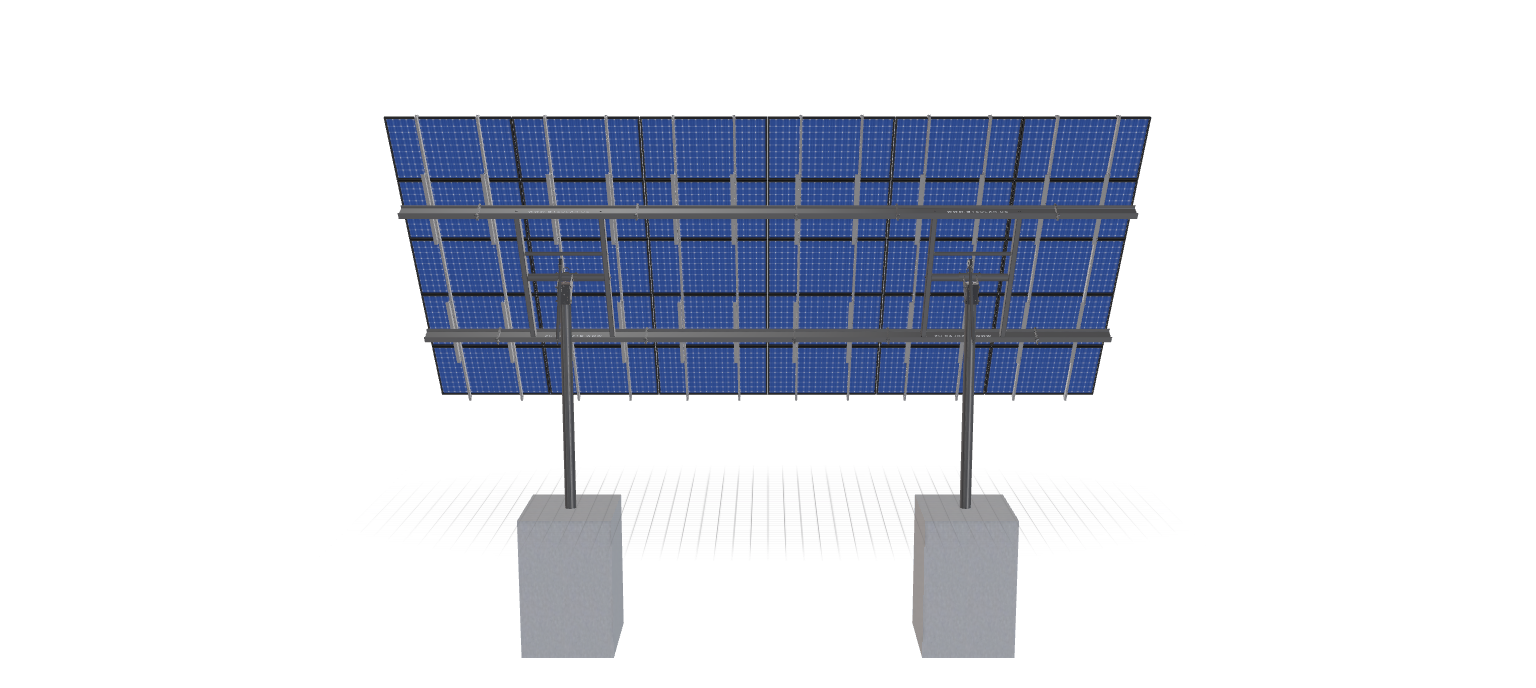

See 3D Model Here
Barry Residence RevA
$9,410.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.25 inches by 41.25 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1852.1399999999999 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-19.75-8TOP-SD-45-L-5HX6W-3L89 |
DUTY SIZE | SD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 11.53 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.00 |
TILT ANGLE | 60.00 |
CANTILEVER | 417.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 2.00 |
MODULE AREA | 611.03 |
ARRAY WIDTH | 35.13 |
ARRAY HEIGHT | 17.40 |
RAIL LENGTH | 208.75 |
MODULE LENGTH | 69.25 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 34.75 |
GROUND TO TOP | 18.98 |
PROJECTED PANEL HEIGHT | 14.88 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | BARRY, RESIDENCE, REVA |
SITE ADDRESS | 13790, E, 2ND, ST, TALKEETNA, AK, 99676, USA |
MODULE WIDTH | 41.25 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9410.21 |
TOTAL WEIGHT | 1852.14 |
TOTAL PALLETS | 2.00 |
