This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.13 inches by 34.5 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

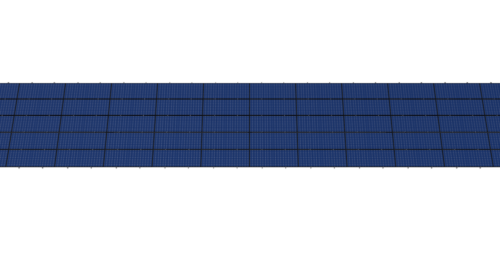

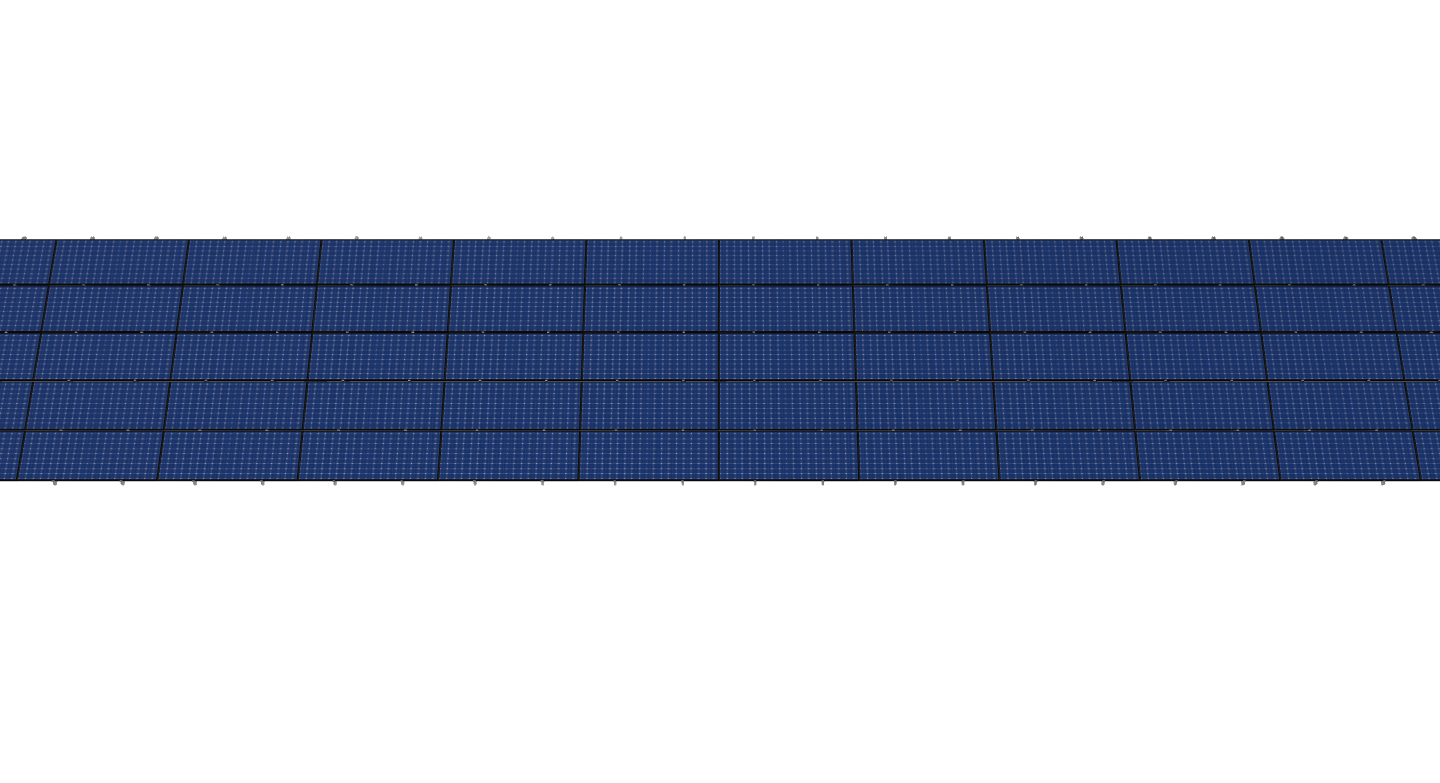

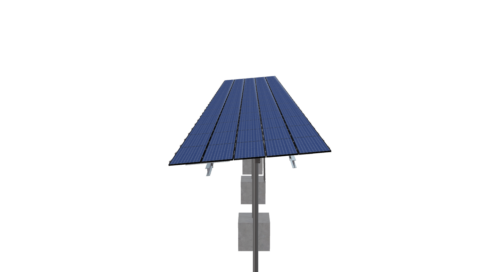

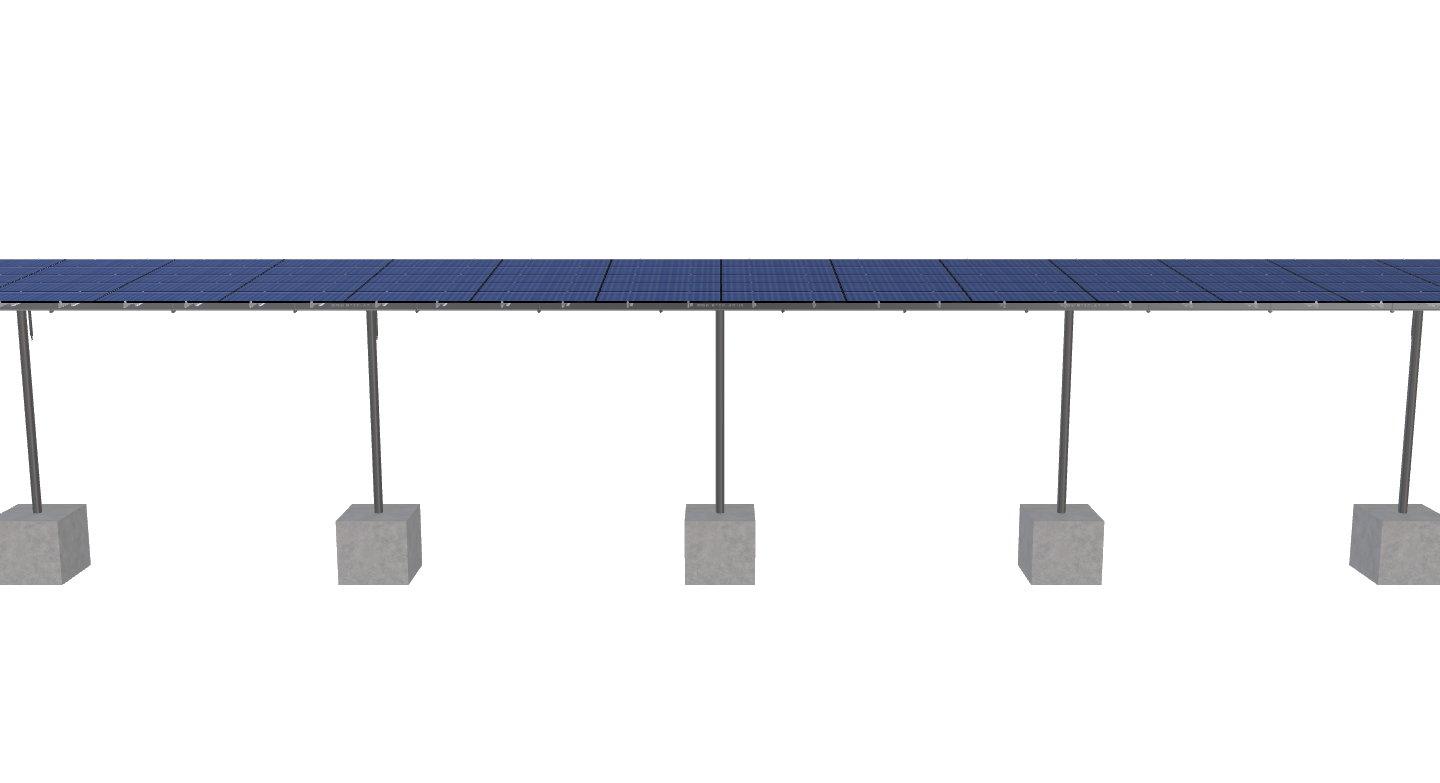

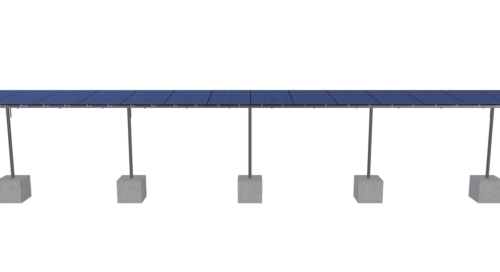

See 3D Model Here
Beach Street Parking lot-22-RevE-JB
$26,947.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.13 inches by 34.5 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

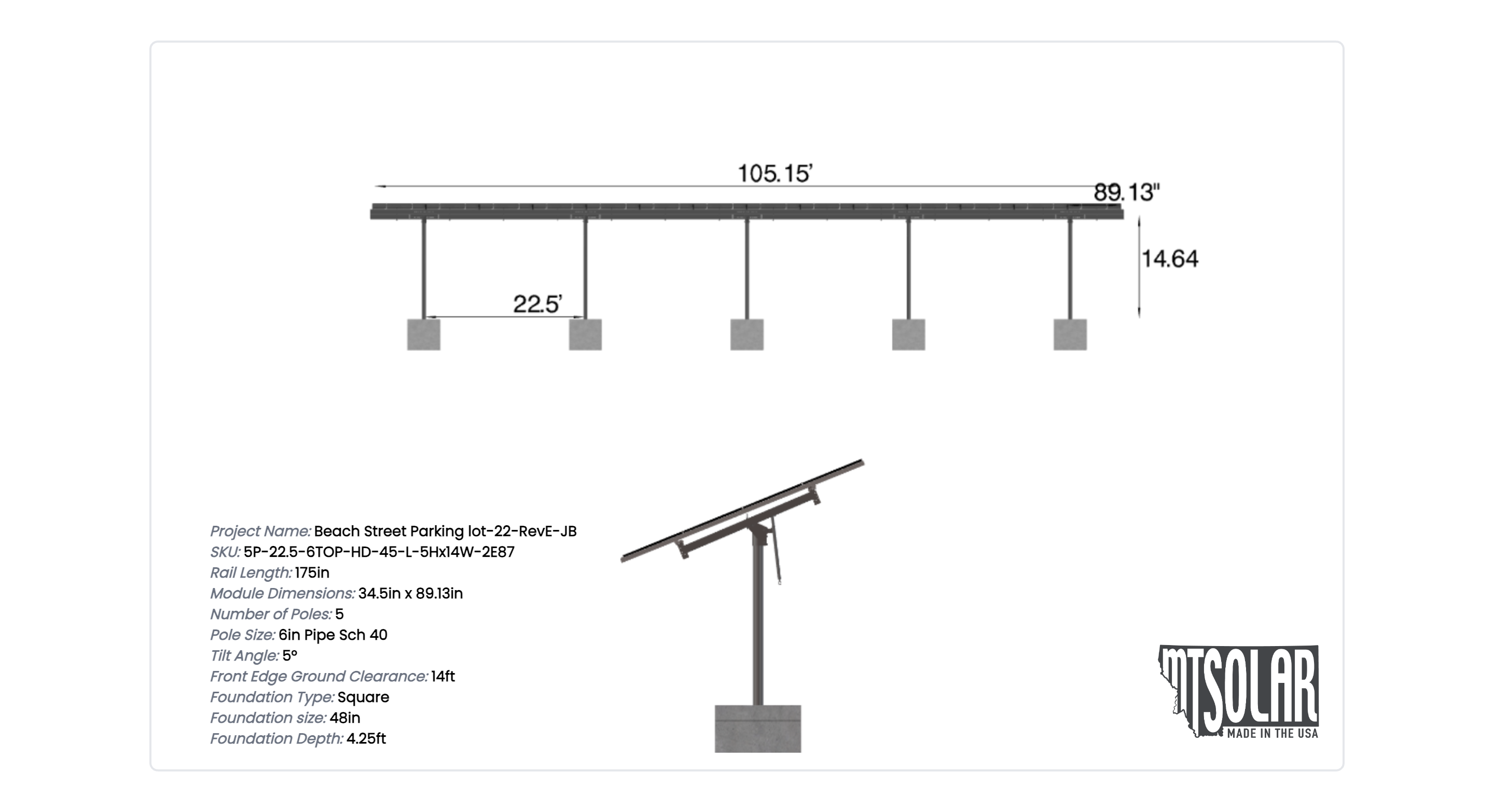

| Weight | 5473.75 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-HD-45-L-5HX14W-2E87 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.64 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1533.46 |
| ARRAY WIDTH | 105.15 |
| ARRAY HEIGHT | 14.58 |
| RAIL LENGTH | 175.00 |
| MODULE LENGTH | 89.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 15.26 |
| PROJECTED PANEL HEIGHT | 1.25 |
| WIND SPEED OVERRIDE | 108.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | BEACH, STREET, PARKING, LOT-22-REVE-JB |
| SITE ADDRESS | 122, S, BEECH, ST, CASPER, WY, 82601, USA |
| MODULE WIDTH | 34.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 26947.28 |
| TOTAL WEIGHT | 5473.75 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/03988956-3d55-4a4b-984f-b3b6c5b037f6.pdf |
|
| ID | 4094.00 |
| 3D Solar link |
