This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

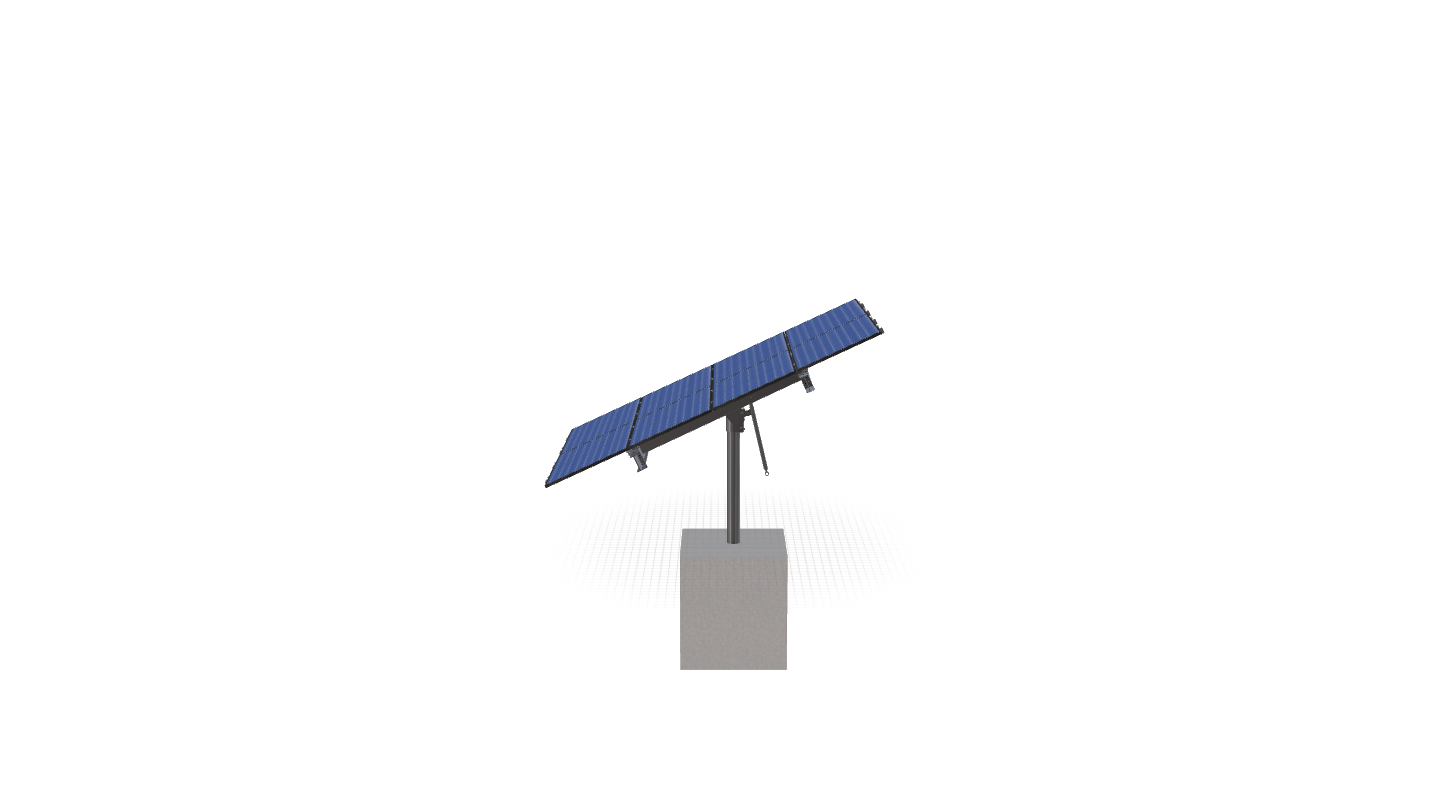

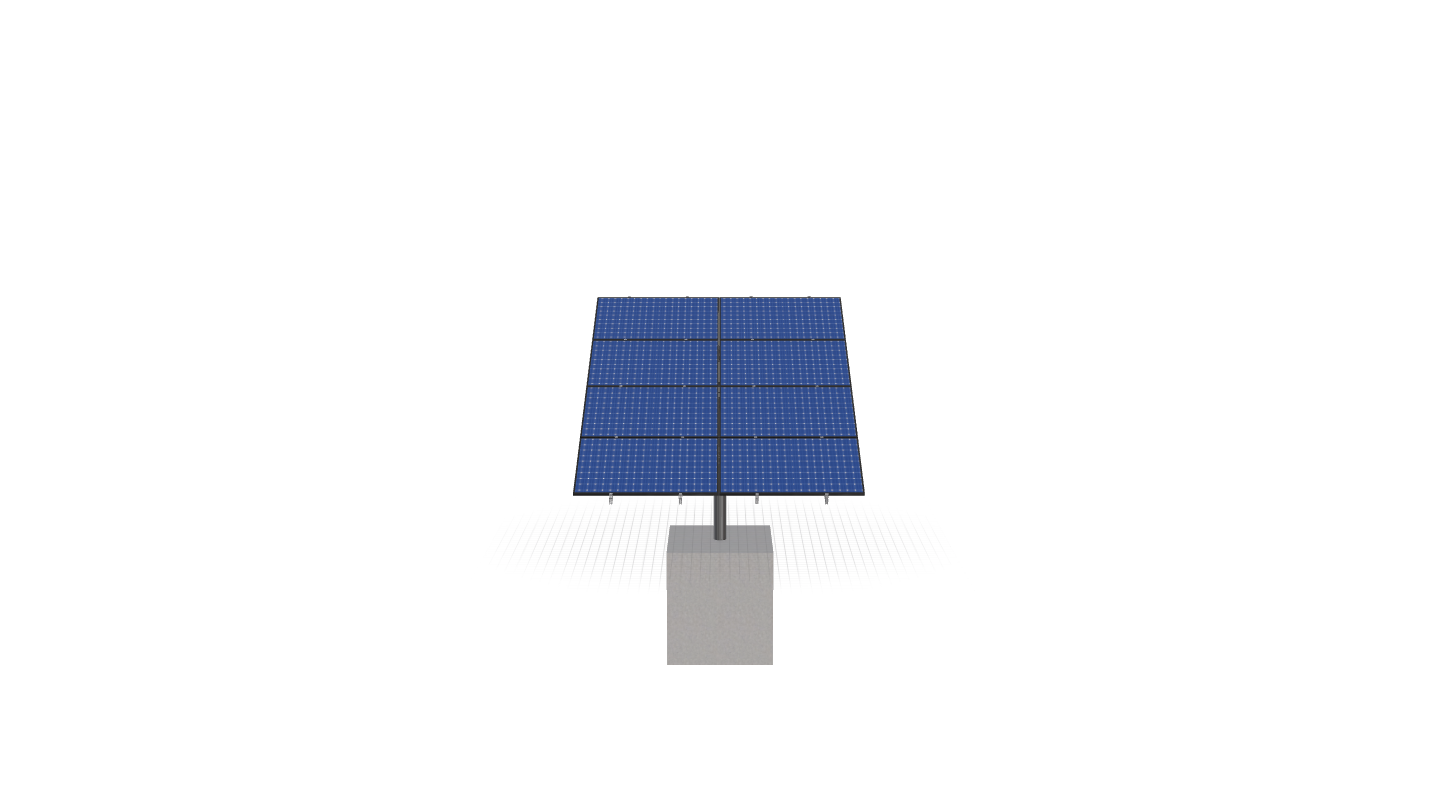

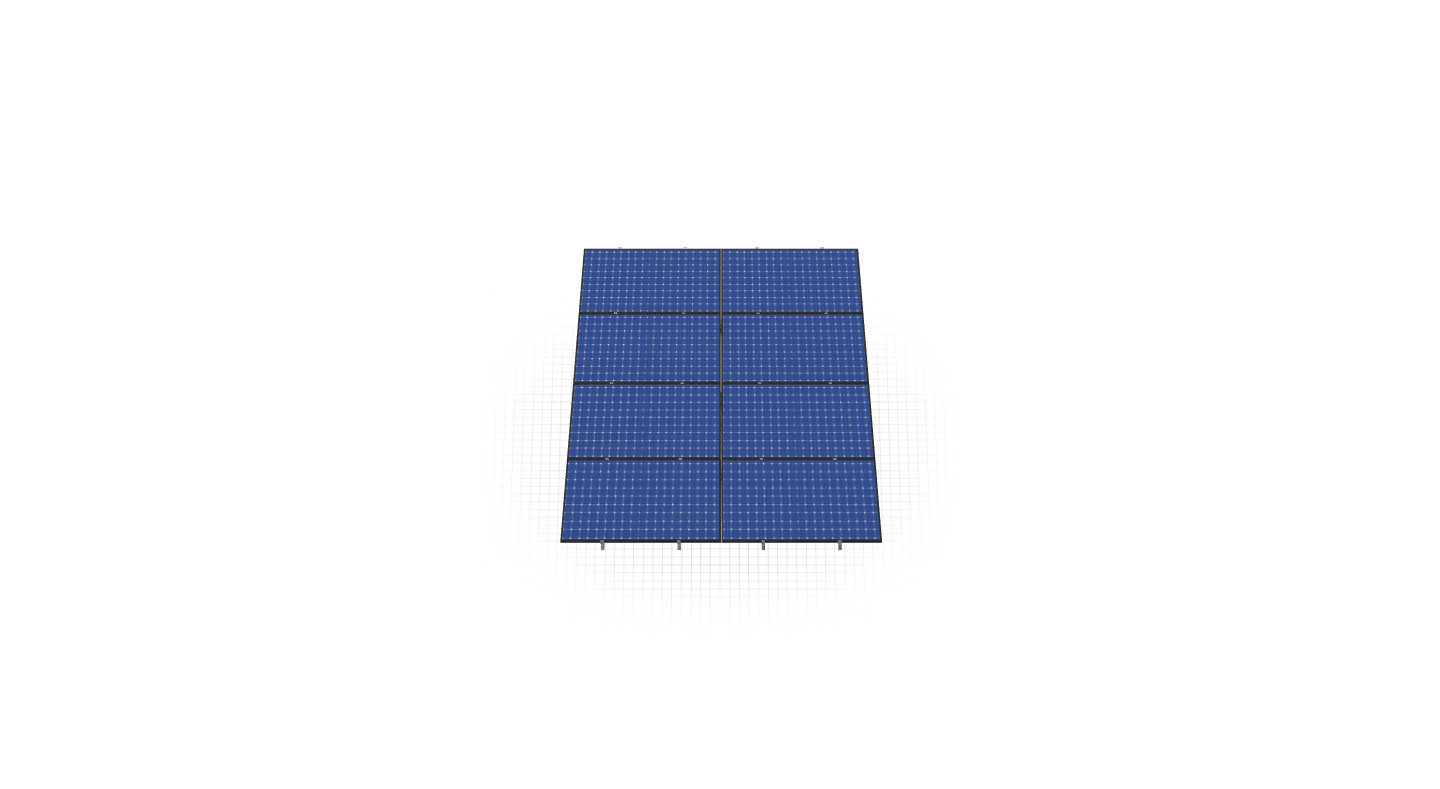

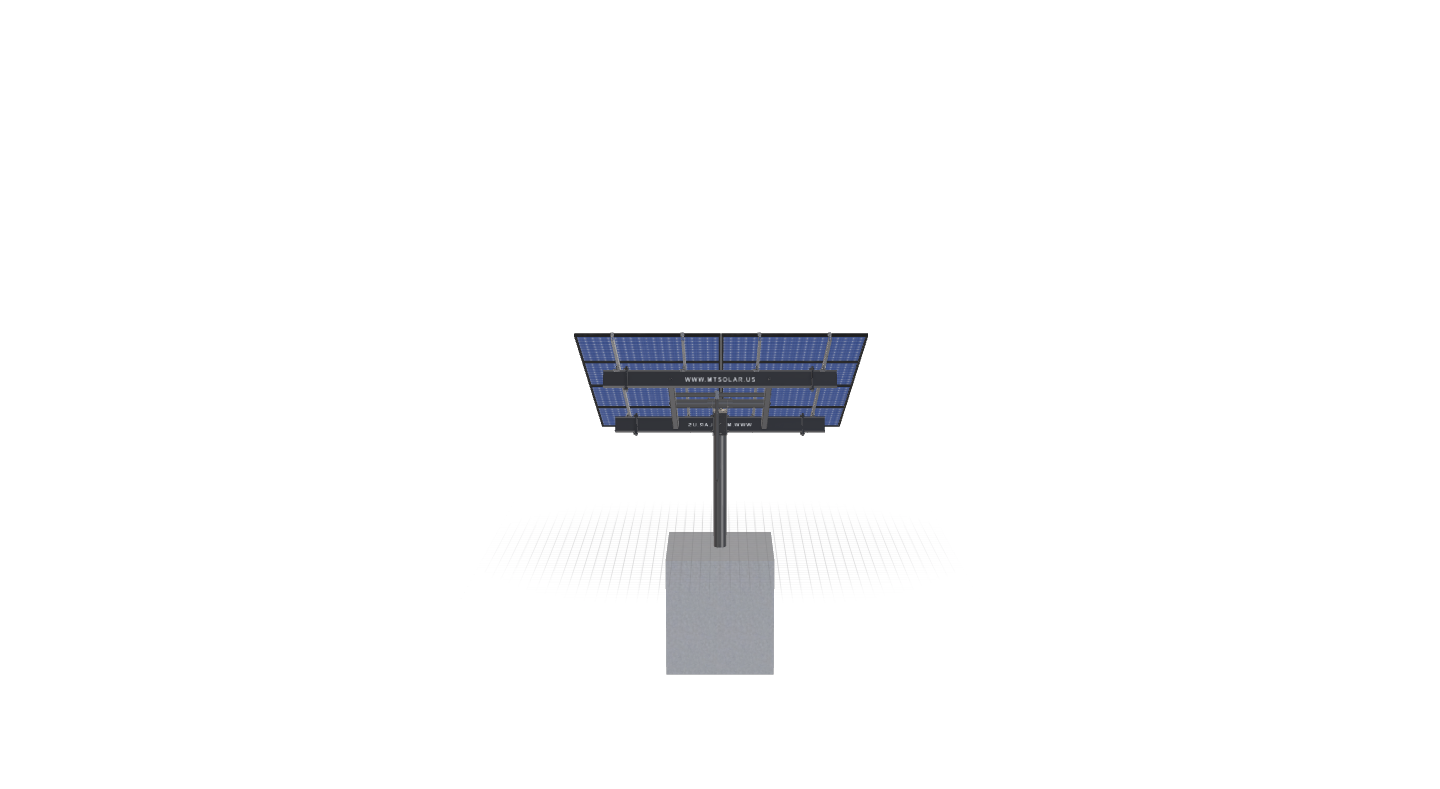

See 3D Model Here
BearatDoorLot2-RevA
$3,795.11
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 632.19 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-12-L-4HX2W-LE16 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.18 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 172.38 |
| ARRAY WIDTH | 11.47 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 9.32 |
| PROJECTED PANEL HEIGHT | 6.28 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 92.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | BEARATDOORLOT2-REVA |
| SITE ADDRESS | 4516, CAPITOL, CREEK, RD, SNOWMASS, CO, 81654, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3614.39 |
| TOTAL WEIGHT | 632.19 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/da5147e6-5407-4a0e-b950-617a550ff4ce.pdf |
|
| ID | 871.00 |
| 3D Solar link |
