Bennett

$3,200.55

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

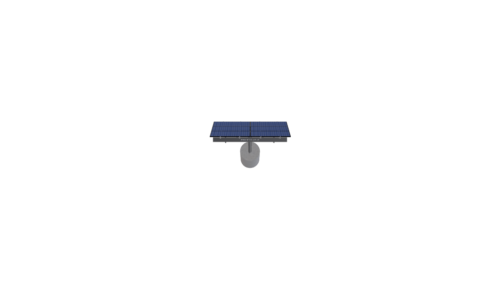

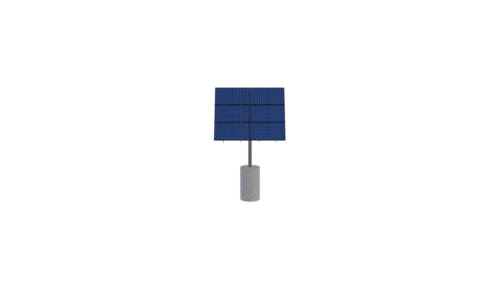

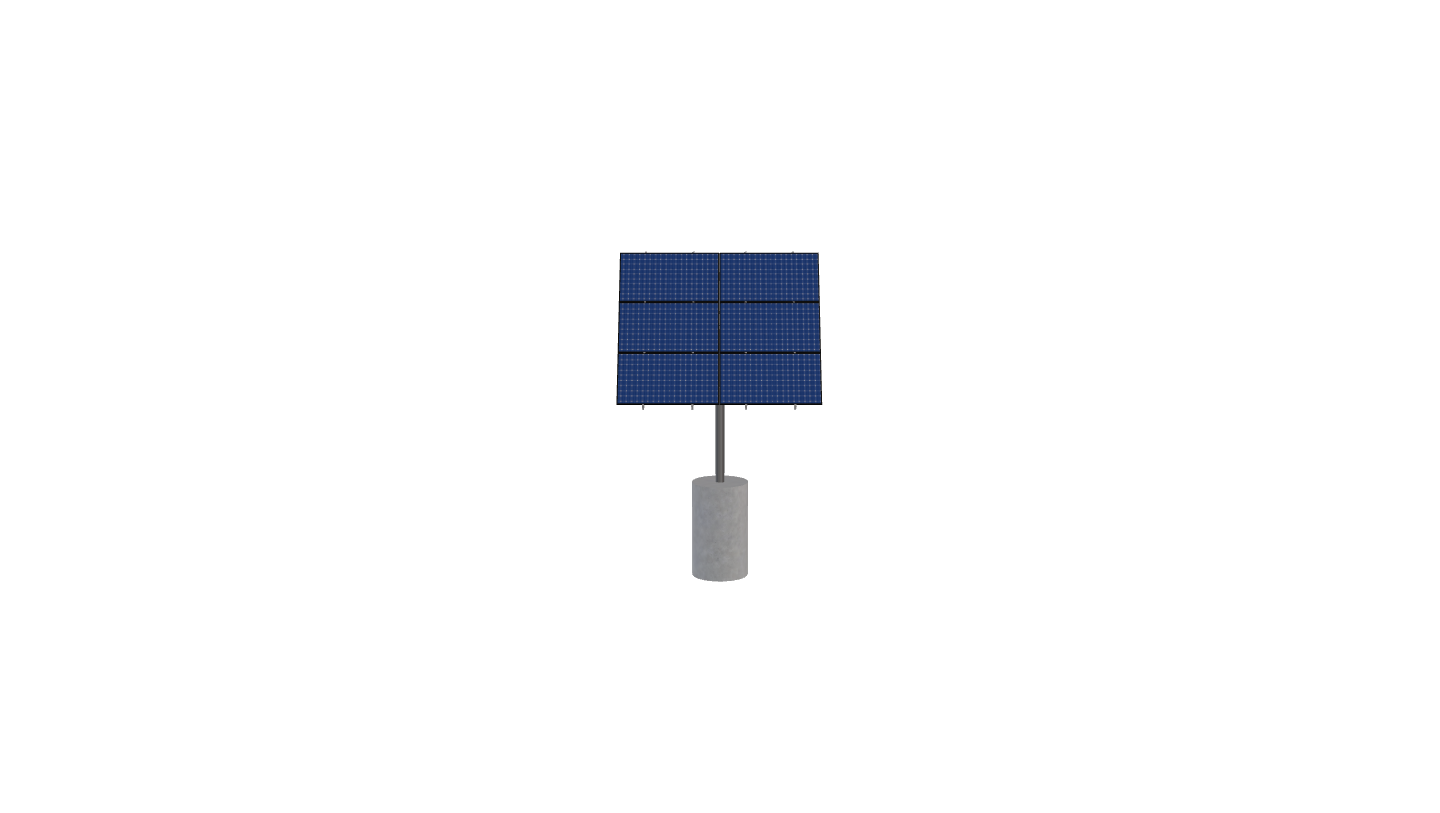

See 3D Model Here

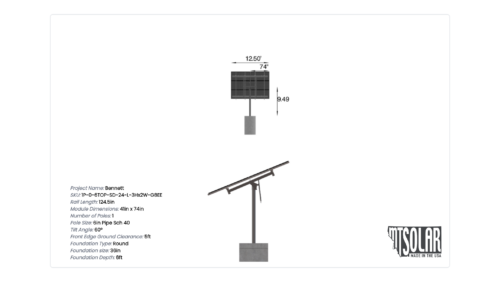

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-24-L-3Hx2W-G8EE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 548.84 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-24-L-3HX2W-G8EE

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.49

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

60.00

CANTILEVER

138.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

129.69

ARRAY WIDTH

12.50

ARRAY HEIGHT

10.38

RAIL LENGTH

124.50

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

13.93

PROJECTED PANEL HEIGHT

8.88

PROJECT ID

BENNETT

SITE ADDRESS

26375, COUNTY, RD, 17FF, SAGUACHE, CO, 81149, USA

MODULE WIDTH

41.00

NUMBER ROWS

3.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

85.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3200.55

TOTAL WEIGHT

548.84

TOTAL PALLETS

1.00
