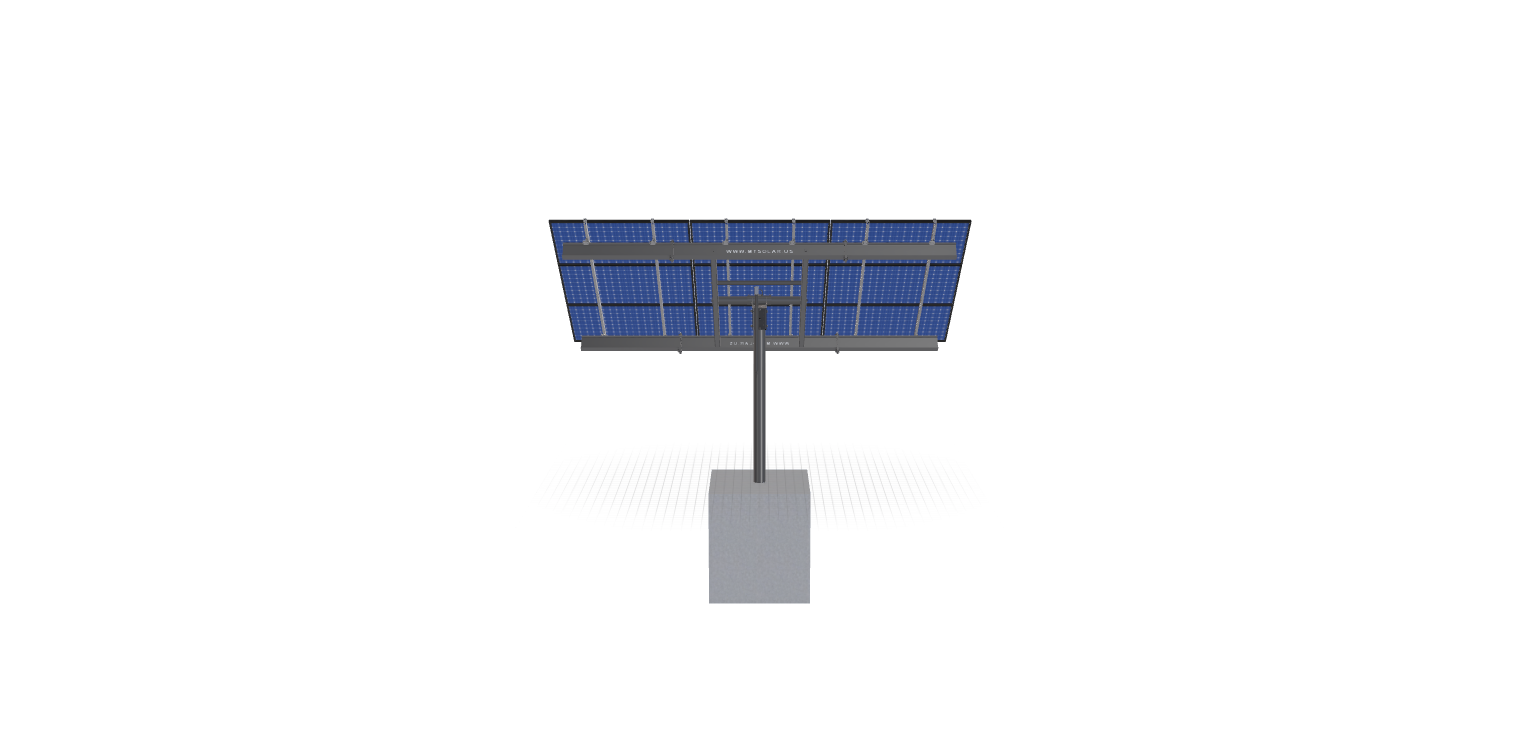

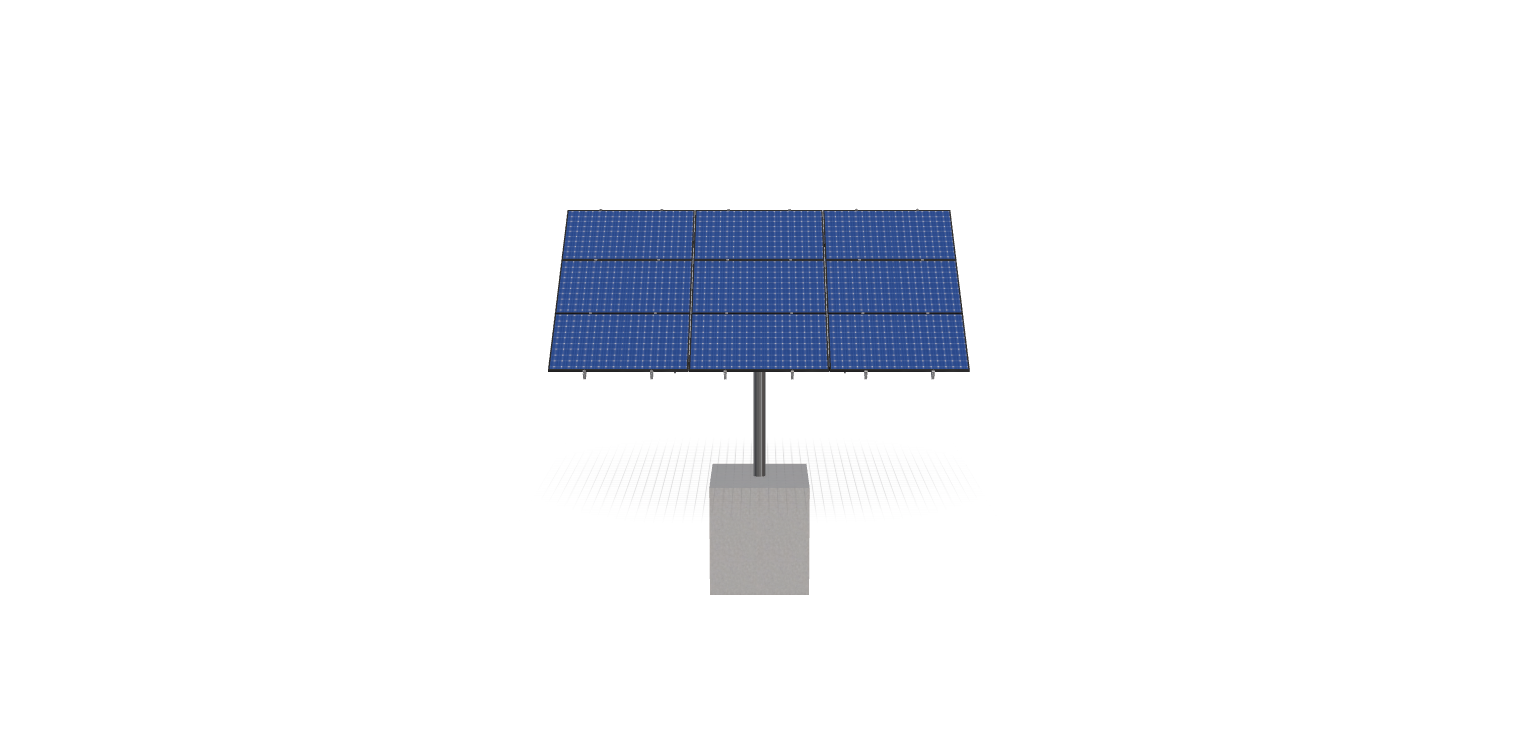

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Blacksnake Ridge RevA
$3,632.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 649.38 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-57-L-3HX3W-8127 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 8.25 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 5.00 |
TILT ANGLE | 40.00 |
CANTILEVER | 204.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 1.00 |
MODULE AREA | 184.78 |
ARRAY WIDTH | 18.25 |
ARRAY HEIGHT | 10.13 |
RAIL LENGTH | 121.50 |
MODULE LENGTH | 72.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 17.00 |
GROUND TO TOP | 11.47 |
PROJECTED PANEL HEIGHT | 6.43 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | BLACKSNAKE, RIDGE, REVA |
SITE ADDRESS | 300, W, ALDER, ST, WALLA, WALLA, WA, 99362, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 3632.20 |
TOTAL WEIGHT | 649.38 |
TOTAL PALLETS | 1.00 |
