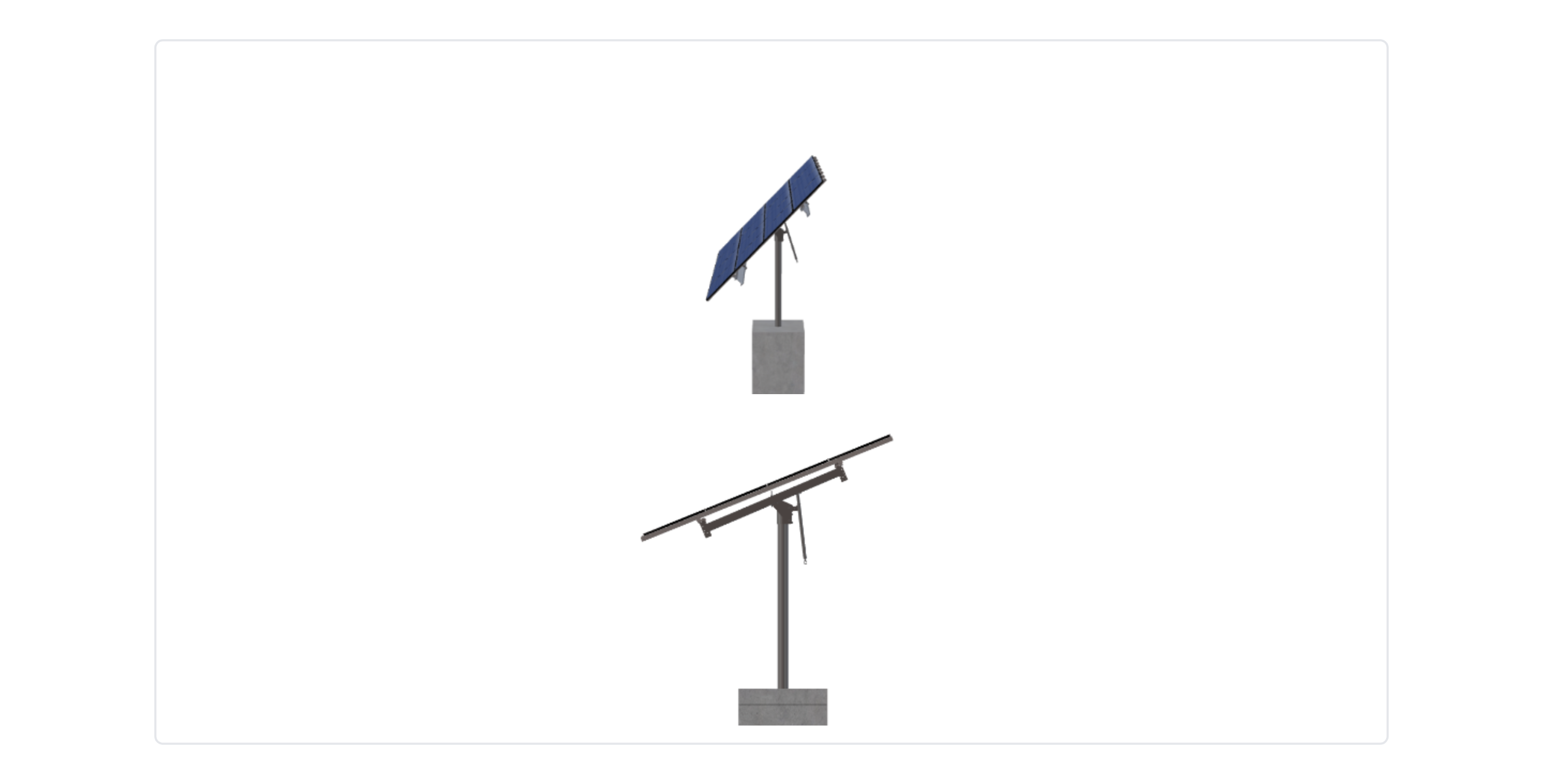

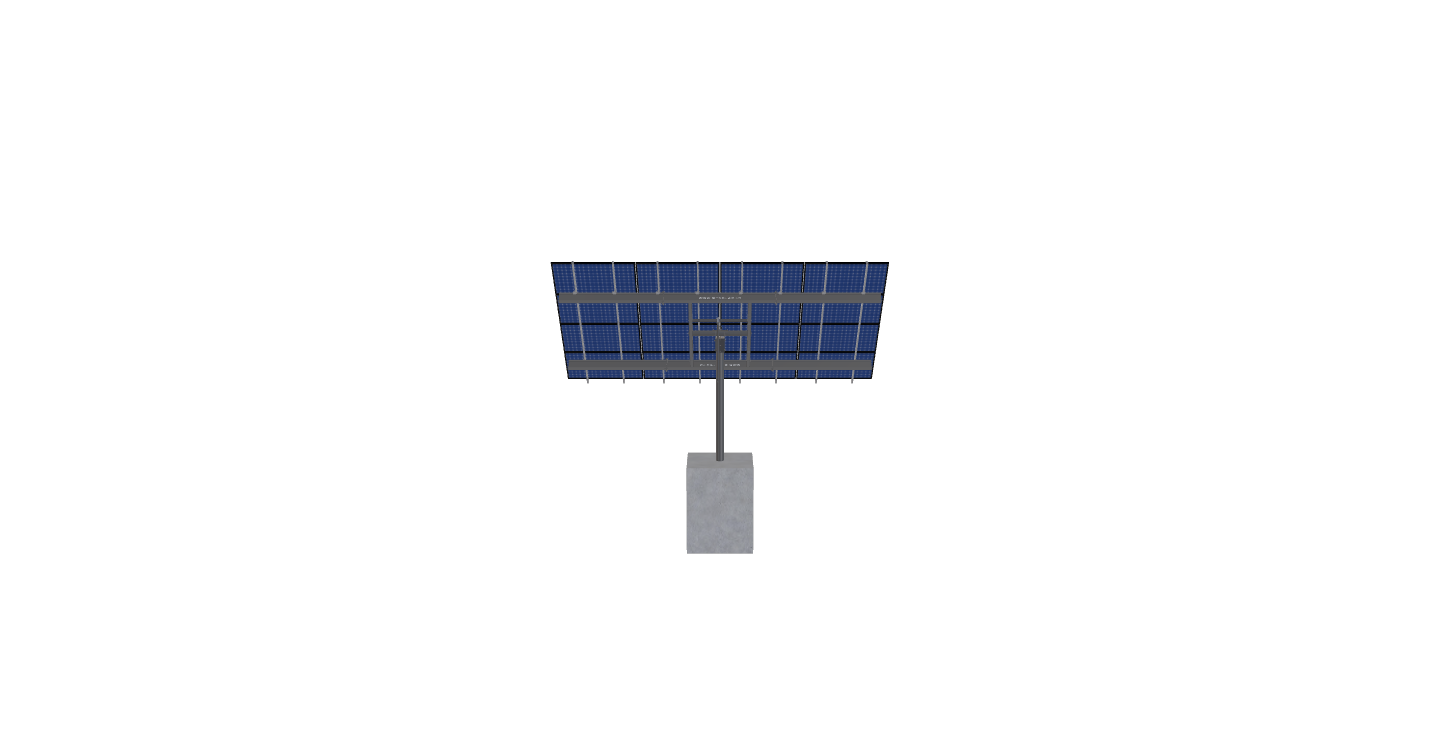

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66 inches by 40 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
BobGoodwin-JB-RevA
$5,270.08
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66 inches by 40 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 965.6899999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-84-L-4HX4W-76H9 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.86 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 301.50 |
| ARRAY WIDTH | 22.33 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 66.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 13.65 |
| PROJECTED PANEL HEIGHT | 9.59 |
| PROJECT ID | BOBGOODWIN-JB-REVA |
| SITE ADDRESS | EAST, WAKEFIELD, WAKEFIELD, NH, 03830, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| ISOLATED FOUNDATION THICKNESS | 18.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5270.08 |
| TOTAL WEIGHT | 965.69 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ab195682-944e-427c-930f-7ca2f7e6f42a.pdf |
|
| ID | 2181.00 |
| 3D Solar link |
