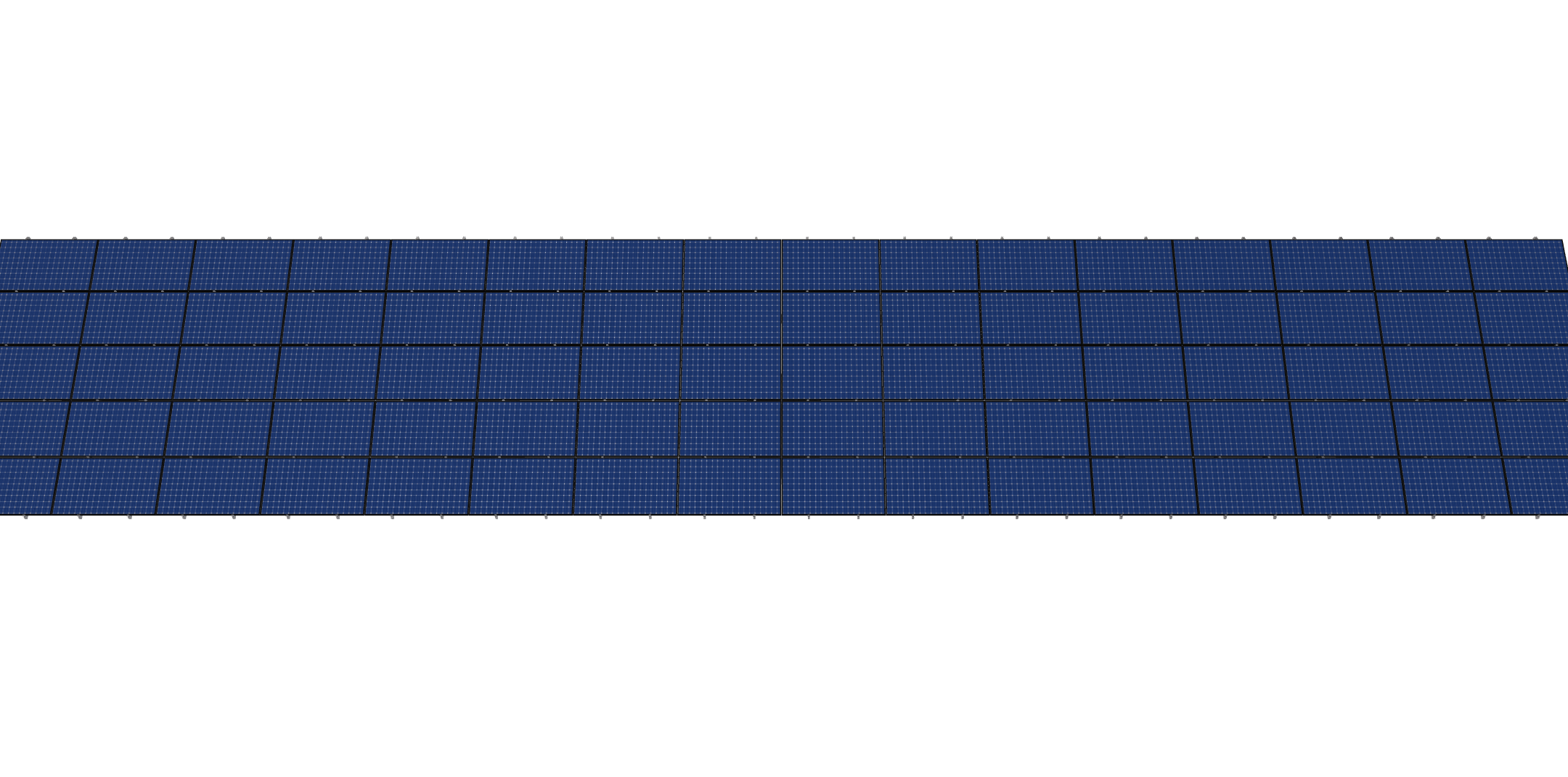

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 41.2 inches and an array layout of 16 wide by 5 high.

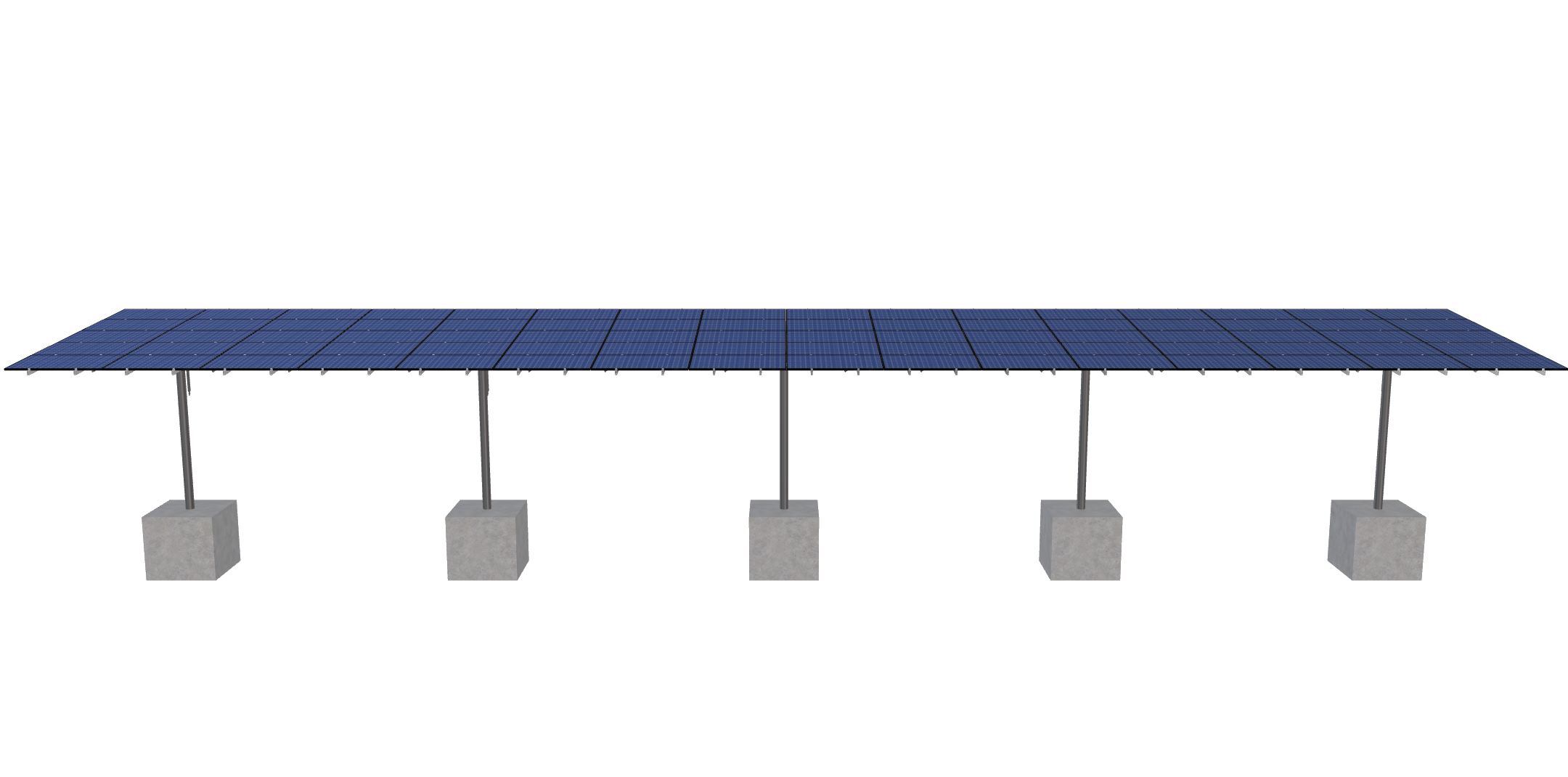

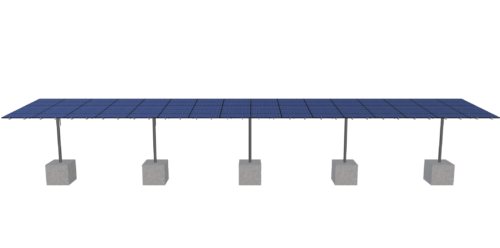

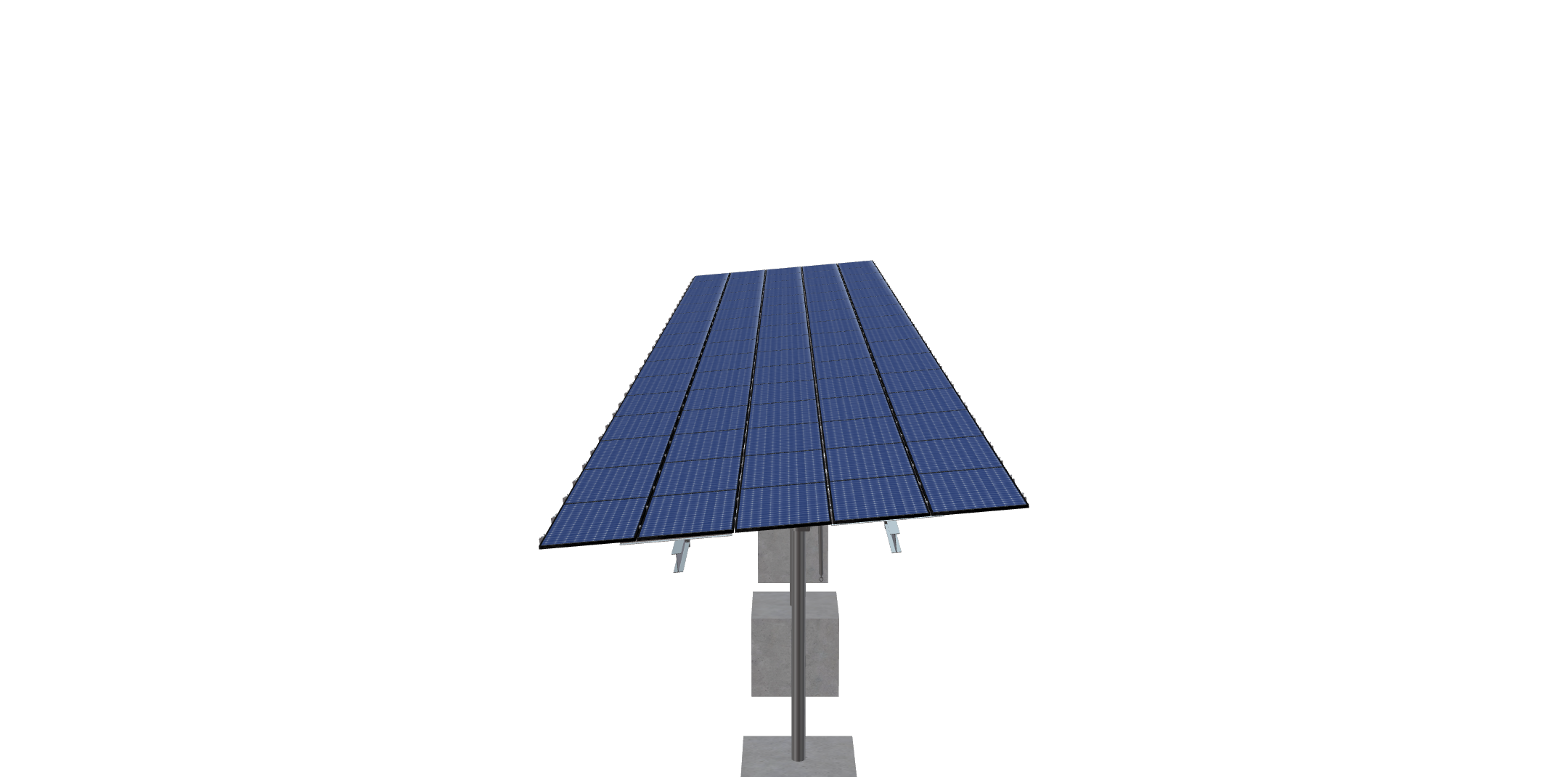

This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
BusStationGarage-JB-RevD
$29,015.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 41.2 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5456.71 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-45-L-5HX16W-C5BK |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1128.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1630.24 |
| ARRAY WIDTH | 93.83 |
| ARRAY HEIGHT | 17.38 |
| RAIL LENGTH | 208.50 |
| MODULE LENGTH | 69.37 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 94.00 |
| GROUND TO TOP | 11.51 |
| PROJECTED PANEL HEIGHT | 1.50 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | BUSSTATIONGARAGE-JB-REVD |
| SITE ADDRESS | 300, W, 3RD, ST, PUEBLO, CO, 81003, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 27633.81 |
| TOTAL WEIGHT | 5456.71 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/910c46b1-65fb-43a4-835e-c8c37027207e.pdf |
|
| ID | 2431.00 |
| 3D Solar link |
