This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.24 inches by 39.21 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

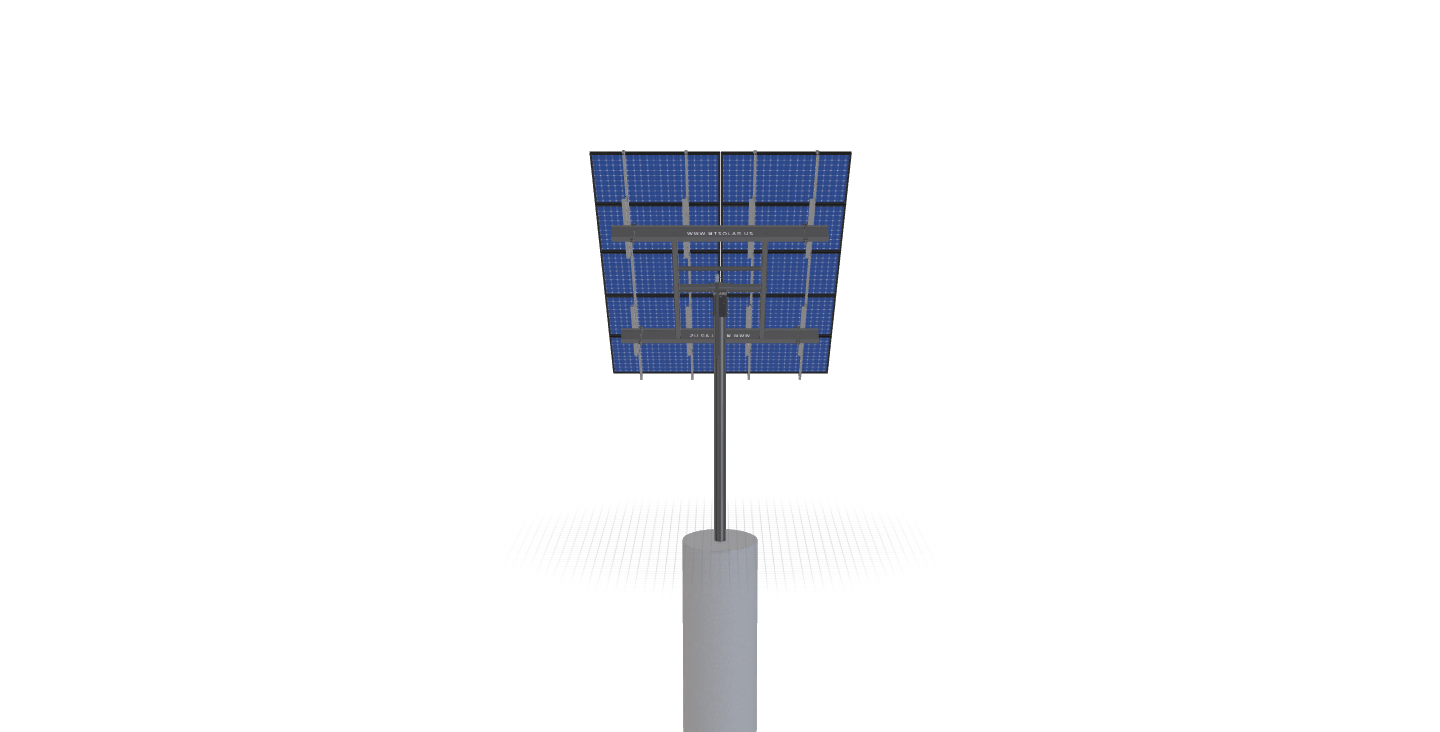

See 3D Model Here
CabinPower-RevA
$3,712.61
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.24 inches by 39.21 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 655.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-5HX2W-99K2 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.85 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 182.67 |
| ARRAY WIDTH | 11.04 |
| ARRAY HEIGHT | 16.55 |
| RAIL LENGTH | 198.55 |
| MODULE LENGTH | 65.24 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 17.63 |
| PROJECTED PANEL HEIGHT | 11.55 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | CABINPOWER-REVA |
| SITE ADDRESS | 513, US-1, HODGDON, ME, 04730, USA |
| MODULE WIDTH | 39.21 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3535.82 |
| TOTAL WEIGHT | 655.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/fe63e55f-2799-48de-8e2a-b72b7a6cf21a.pdf |
|
| ID | 1293.00 |
| 3D Solar link |
