$4,277.82

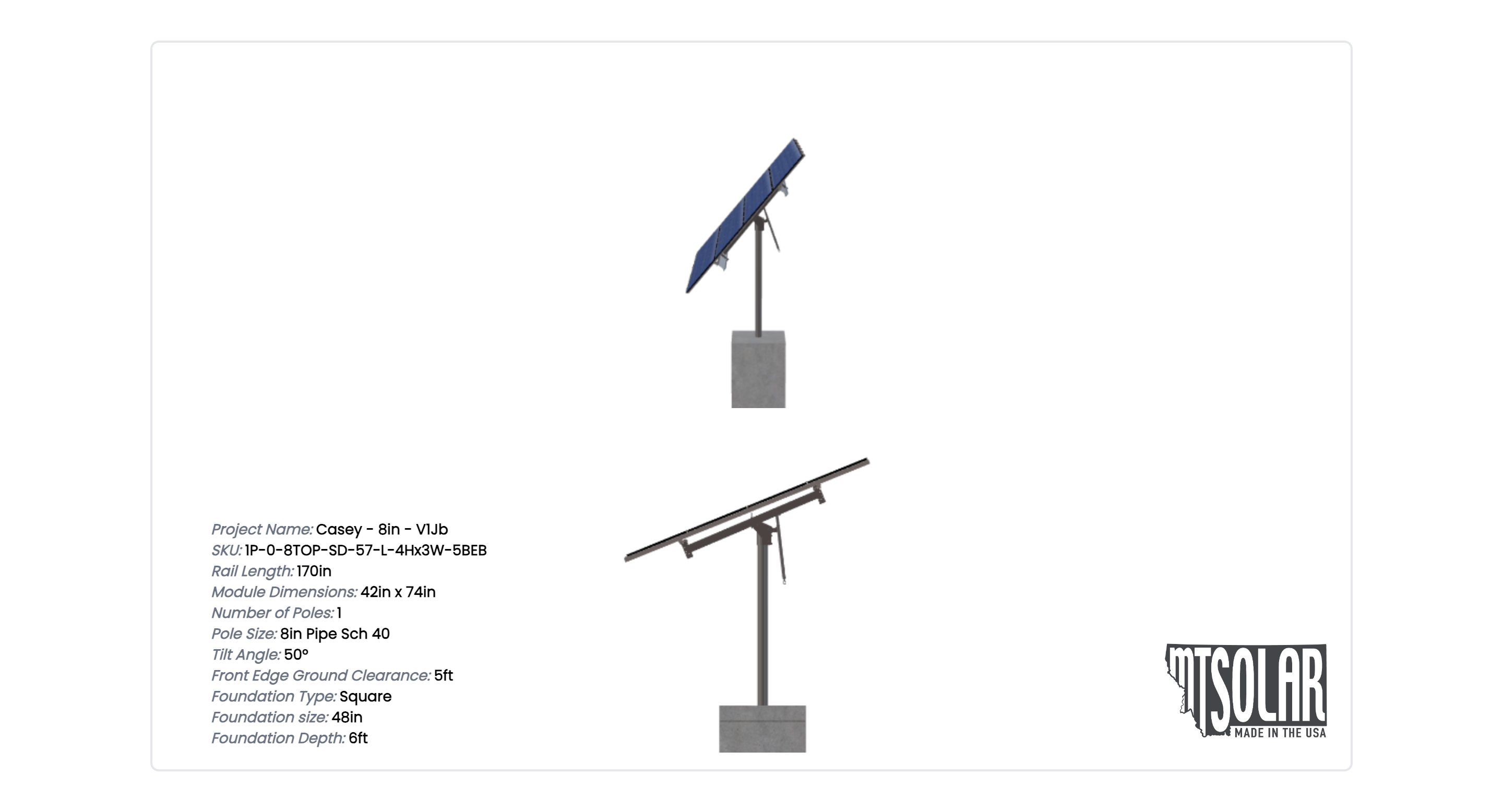

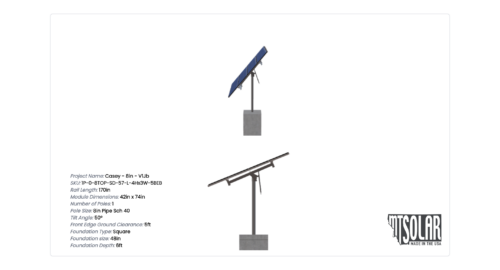

This Pole Mount is designed for modules with dimensions of 74″ by 42″ and an array layout of 4 high by 3 wide.
This mount fits on 1 – 8″ Sch 40 steel pole (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack.
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
This Pole Mount is designed for modules with dimensions of 74″ by 42″ and an array layout of 4 high by 3 wide.
This mount fits on 1 – 8″ Sch 40 steel pole (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack.
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
| Weight | 714.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-57-L-4HX3W-5BEB |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.43 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 265.63 |
| ARRAY WIDTH | 18.75 |
| ARRAY HEIGHT | 14.17 |
| RAIL LENGTH | 170.00 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 15.85 |
| PROJECTED PANEL HEIGHT | 10.85 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 36.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | CASEY, -, 8IN, -, V1JB |
| SITE ADDRESS | 8520, NIXON, GULCH, RD, MANHATTAN, MT, 59741, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 4074.11 |
| TOTAL WEIGHT | 714.66 |
| TOTAL PALLETS | 1.00 |
