This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.38 inches by 41.18 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

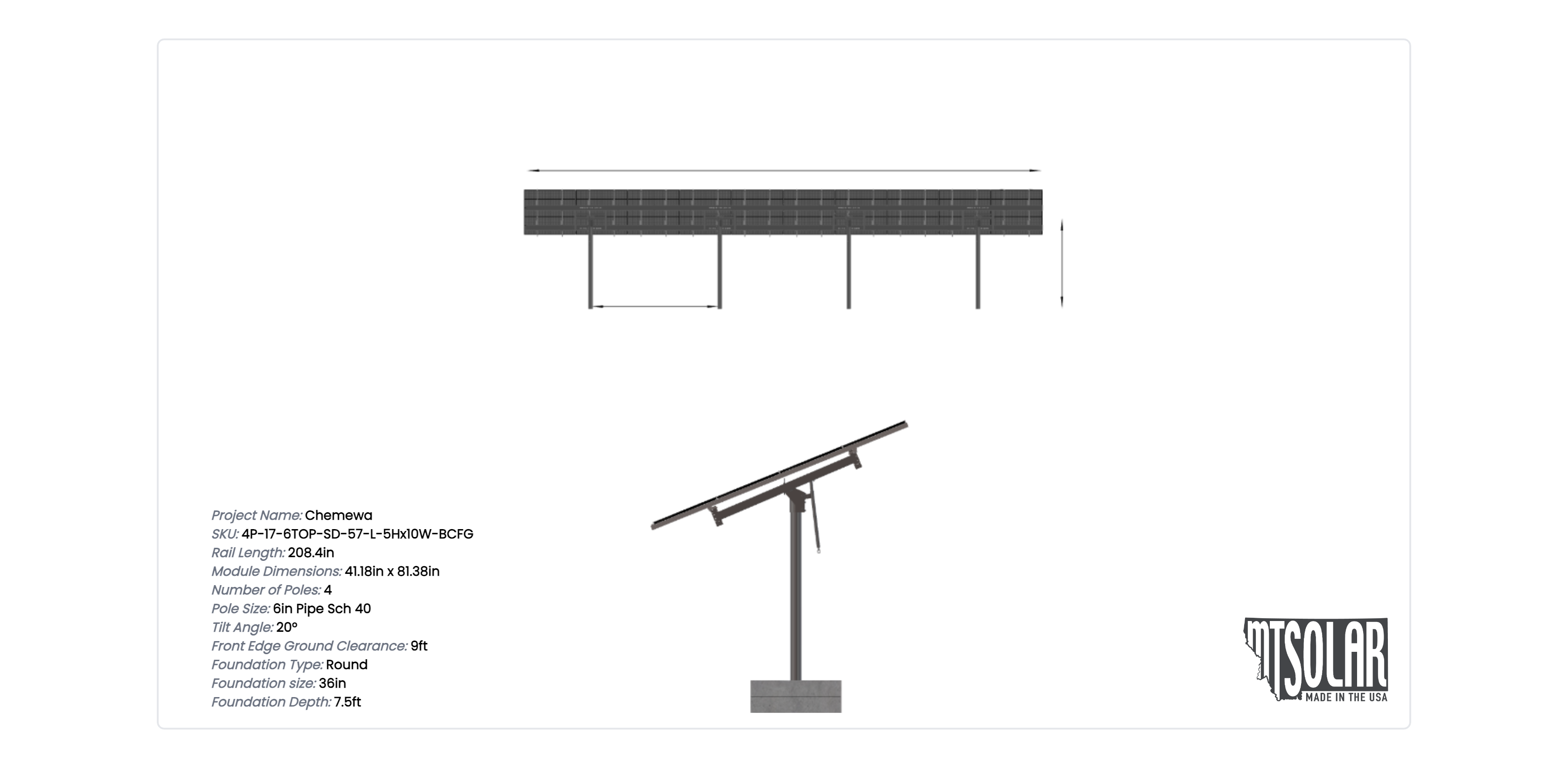

See 3D Model Here
Chemewa
$18,403.94
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.38 inches by 41.18 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3438.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-6TOP-SD-57-L-5HX10W-BCFG |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.97 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 816.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1192.22 |
| ARRAY WIDTH | 68.65 |
| ARRAY HEIGHT | 17.37 |
| RAIL LENGTH | 208.40 |
| MODULE LENGTH | 81.38 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.00 |
| GROUND TO TOP | 14.94 |
| PROJECTED PANEL HEIGHT | 5.94 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ZACH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | CHEMEWA |
| SITE ADDRESS | SALEM, OR, USA |
| MODULE WIDTH | 41.18 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17527.56 |
| TOTAL WEIGHT | 3438.40 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/919f0257-7fcf-4c90-98b4-2a09c0a1a8a9.pdf |
|
| ID | 8258.00 |
| 3D Solar link |
