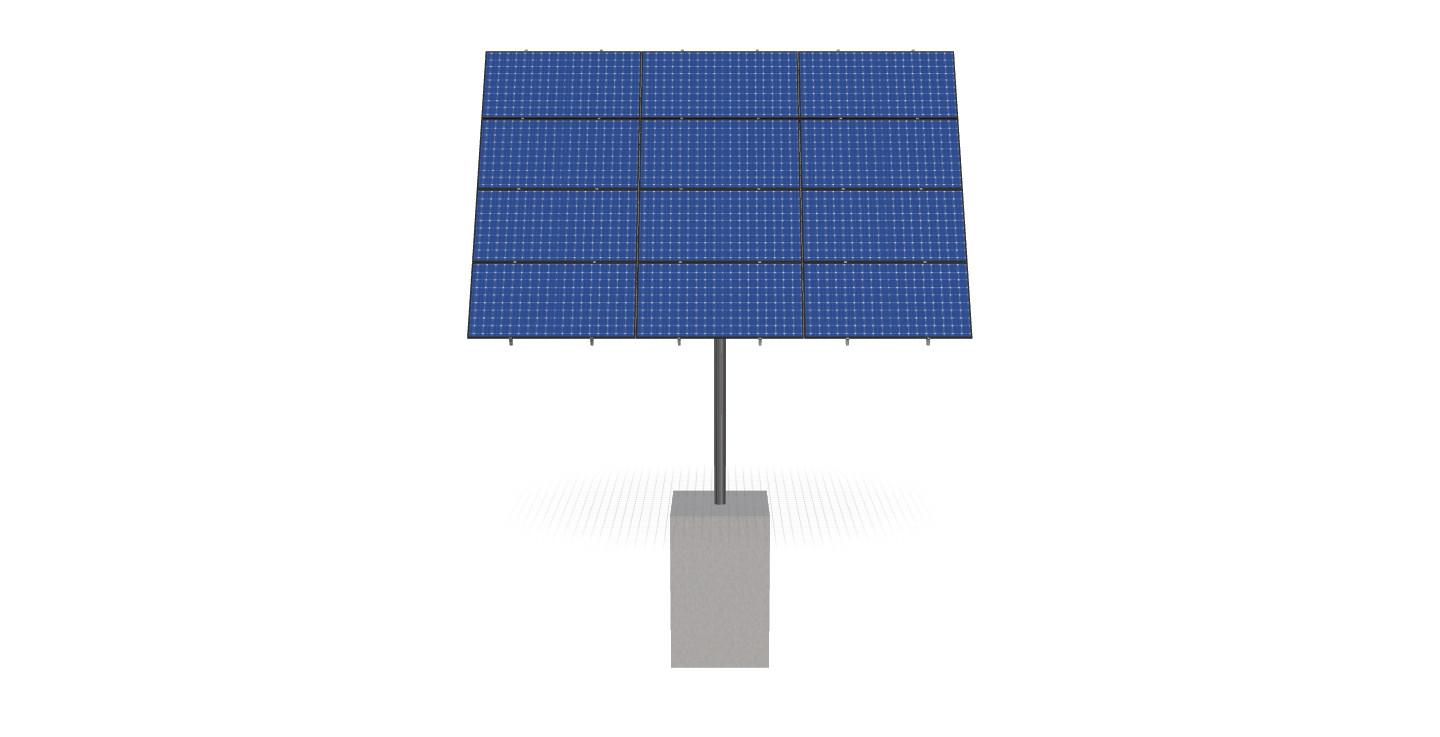

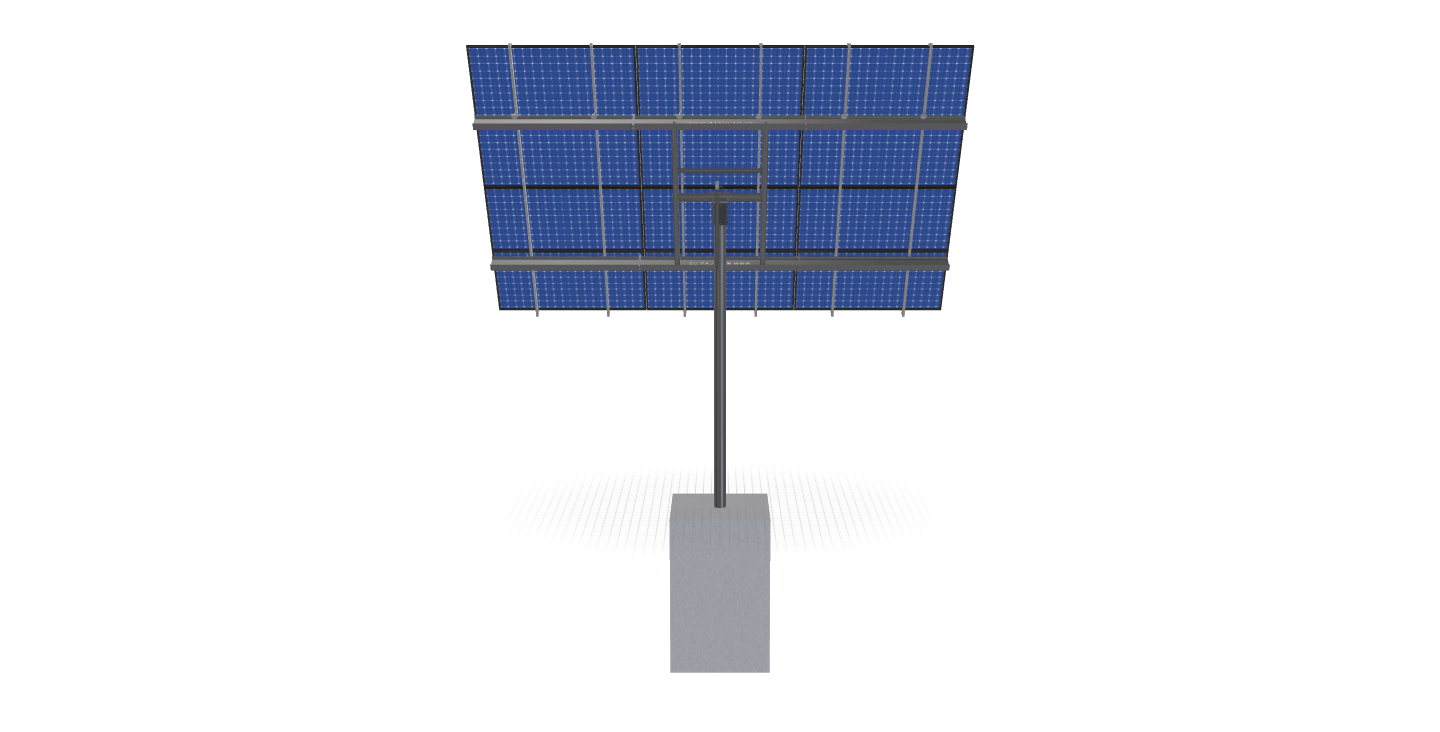

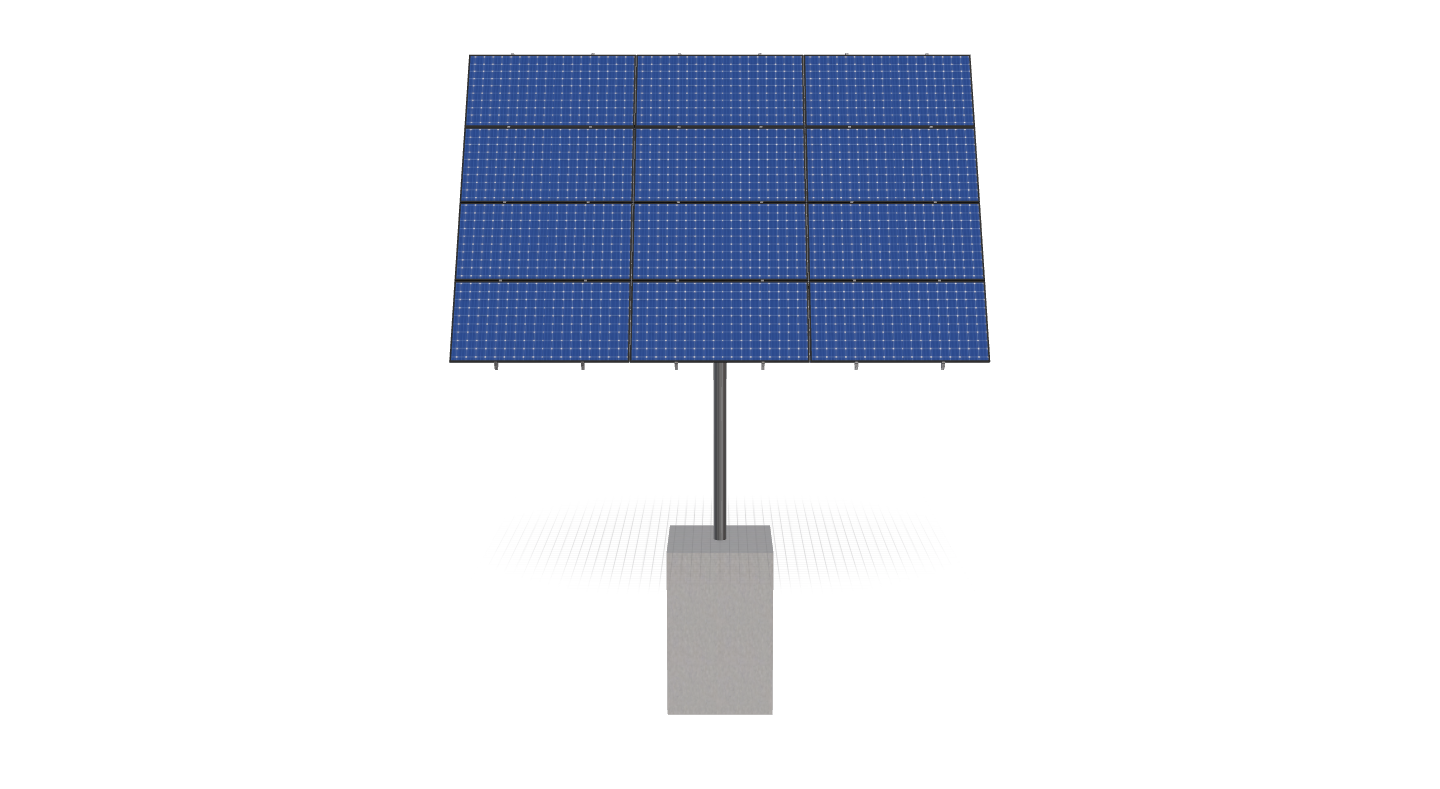

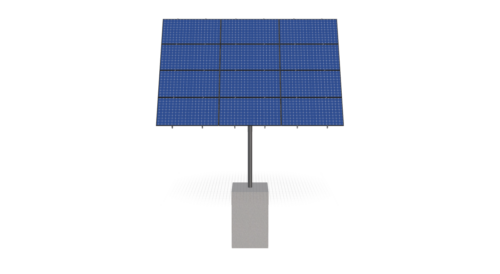

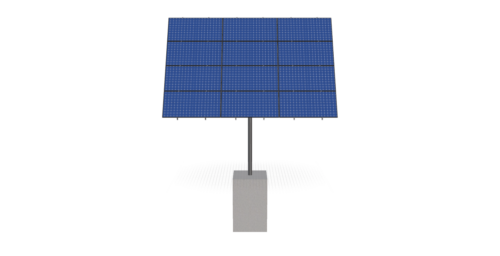

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.1 inches by 43.39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Chesuncook-RevA
$5,565.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.1 inches by 43.39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1054.1100000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-84-L-4HX3W-7LI1 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 14.33 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 1.00 |
| MODULE AREA | 318.57 |
| ARRAY WIDTH | 21.77 |
| ARRAY HEIGHT | 14.63 |
| RAIL LENGTH | 175.56 |
| MODULE LENGTH | 86.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 20.60 |
| PROJECTED PANEL HEIGHT | 12.53 |
| PROJECT ID | CHESUNCOOK-REVA |
| SITE ADDRESS | 8, PLEASANT, ST, GREENVILLE, ME, 04441, USA |
| MODULE WIDTH | 43.39 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 123.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 5565.04 |
| TOTAL WEIGHT | 1054.11 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/0214fb9e-7727-4eae-b0b5-4cd37739bede.pdf |
|
| ID | 944.00 |
| 3D Solar link |
