This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.5 inches by 40.9 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

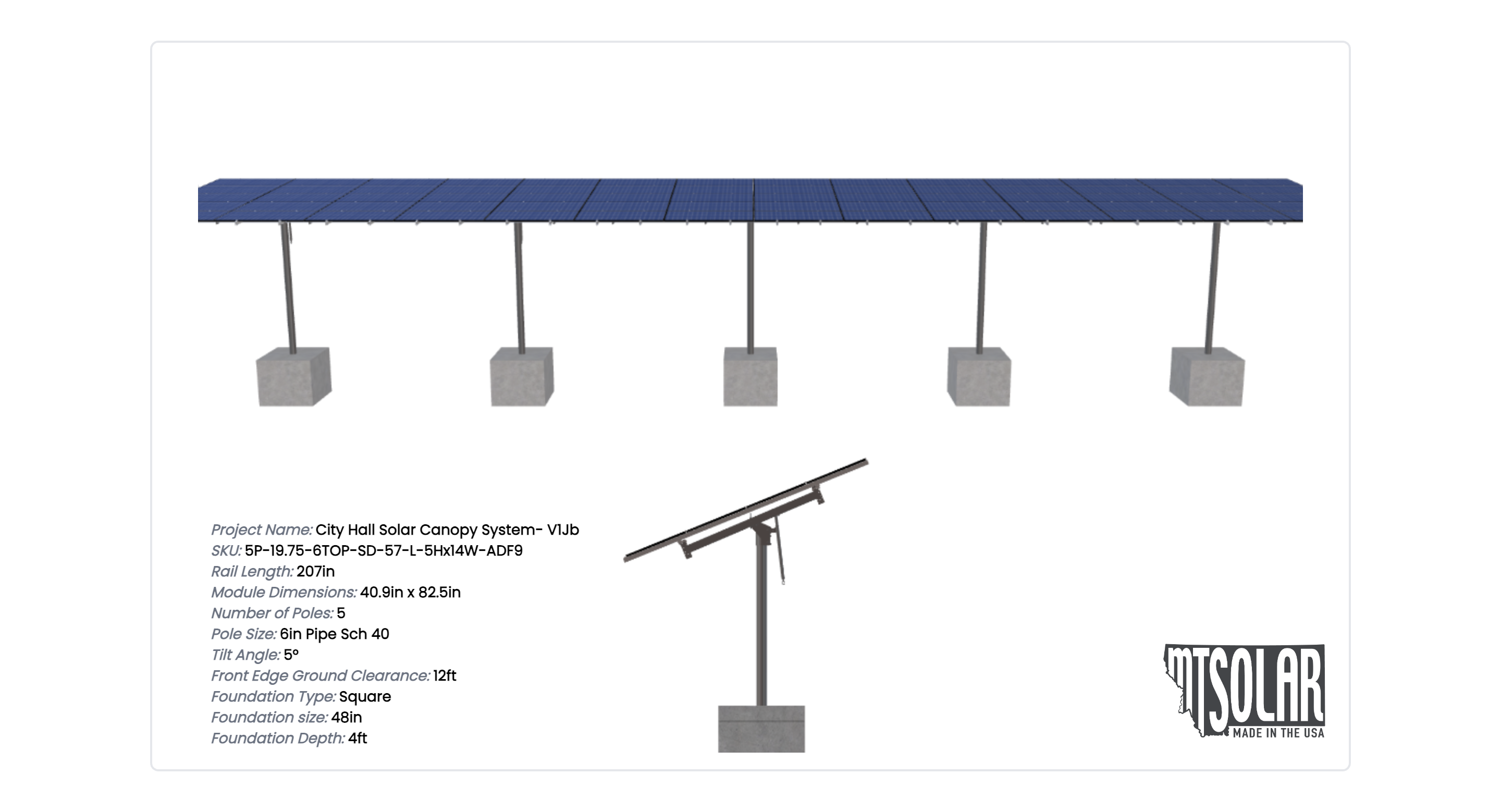

City Hall Solar Canopy System- V1Jb
$24,629.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.5 inches by 40.9 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4654.16 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-SD-57-L-5HX14W-ADF9 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.75 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1680.44 |
| ARRAY WIDTH | 97.42 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 82.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 13.49 |
| PROJECTED PANEL HEIGHT | 1.49 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | CITY, HALL, SOLAR, CANOPY, SYSTEM-, V1JB |
| SITE ADDRESS | 601, CARMEN, DR, CAMARILLO, CA, 93010, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23456.46 |
| TOTAL WEIGHT | 4654.16 |
| TOTAL PALLETS | 5.00 |
