This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Cozy Home Community-RevC-JB
$10,190.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

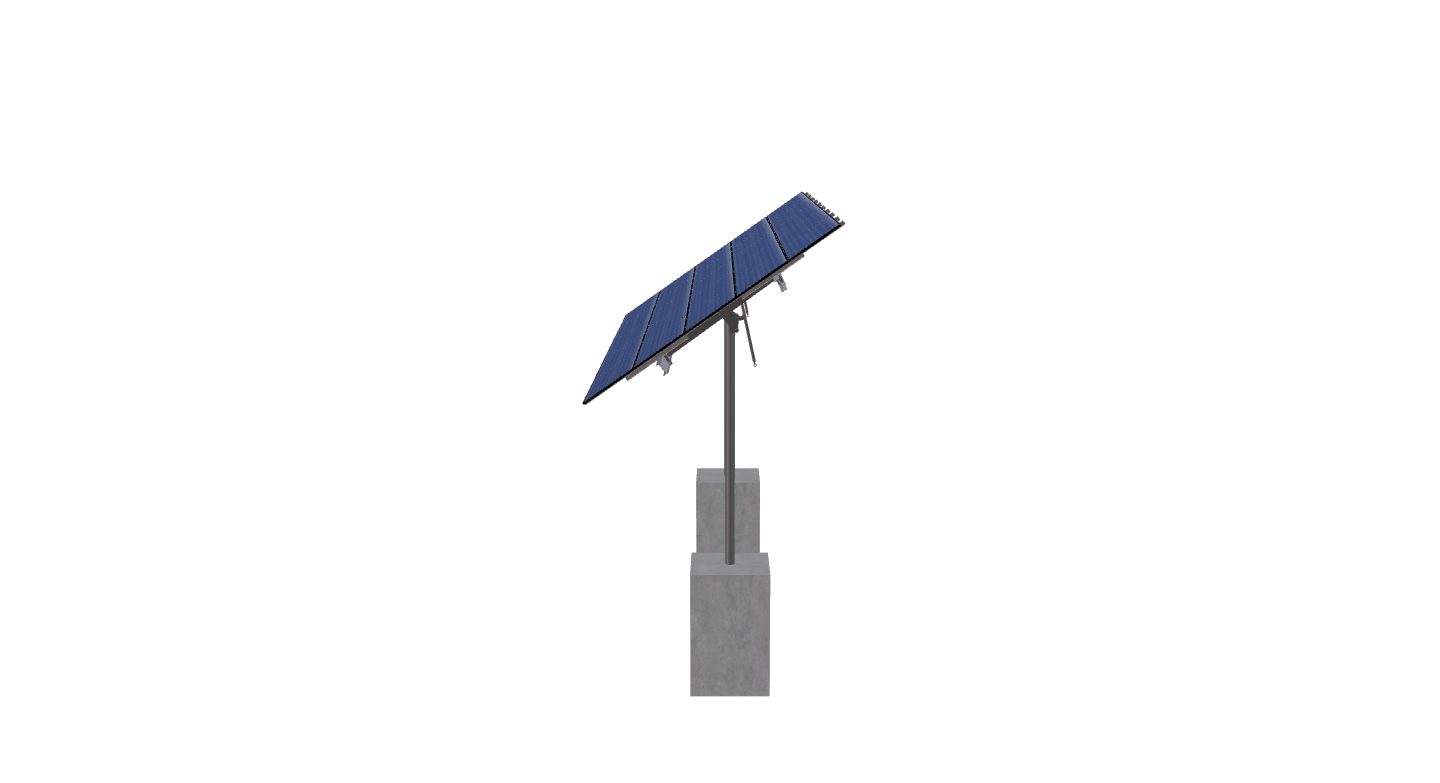

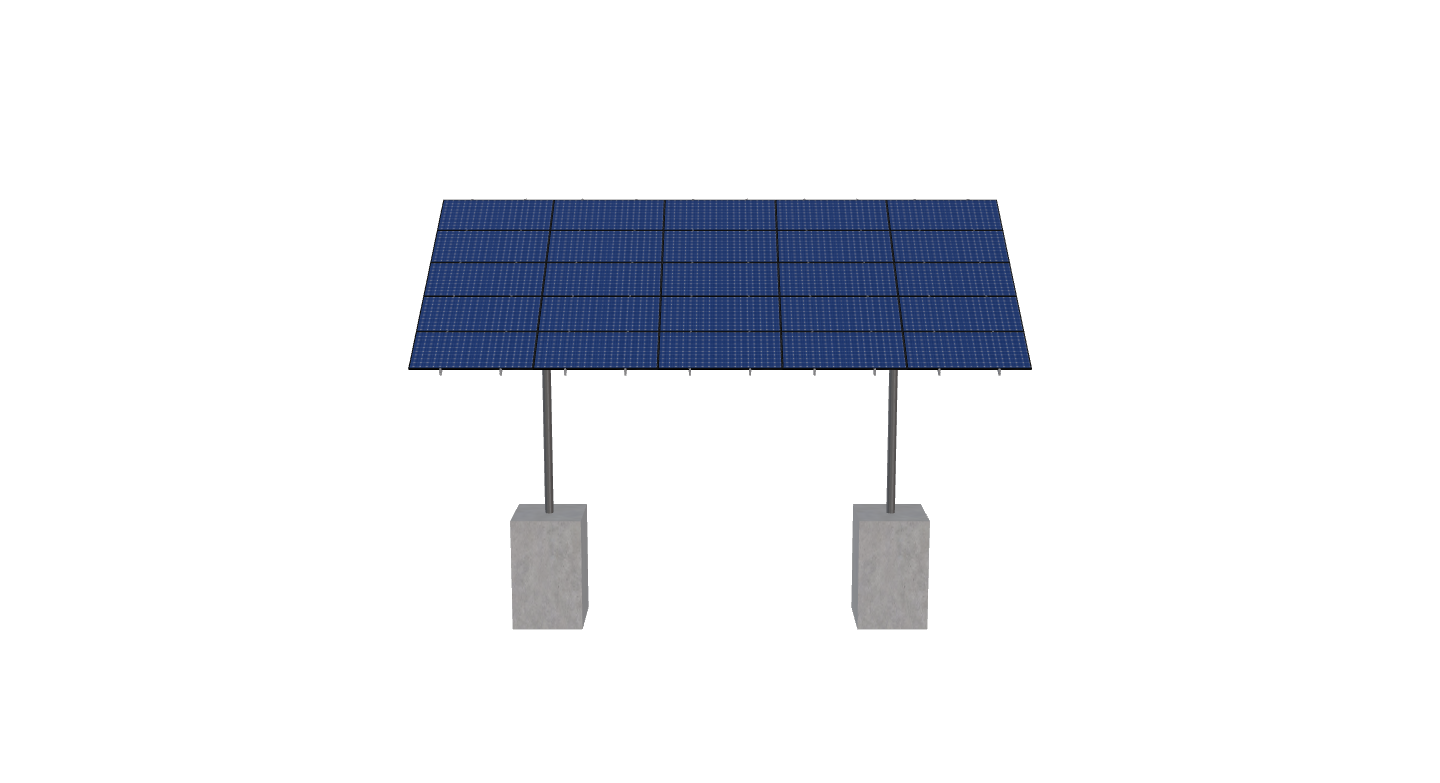

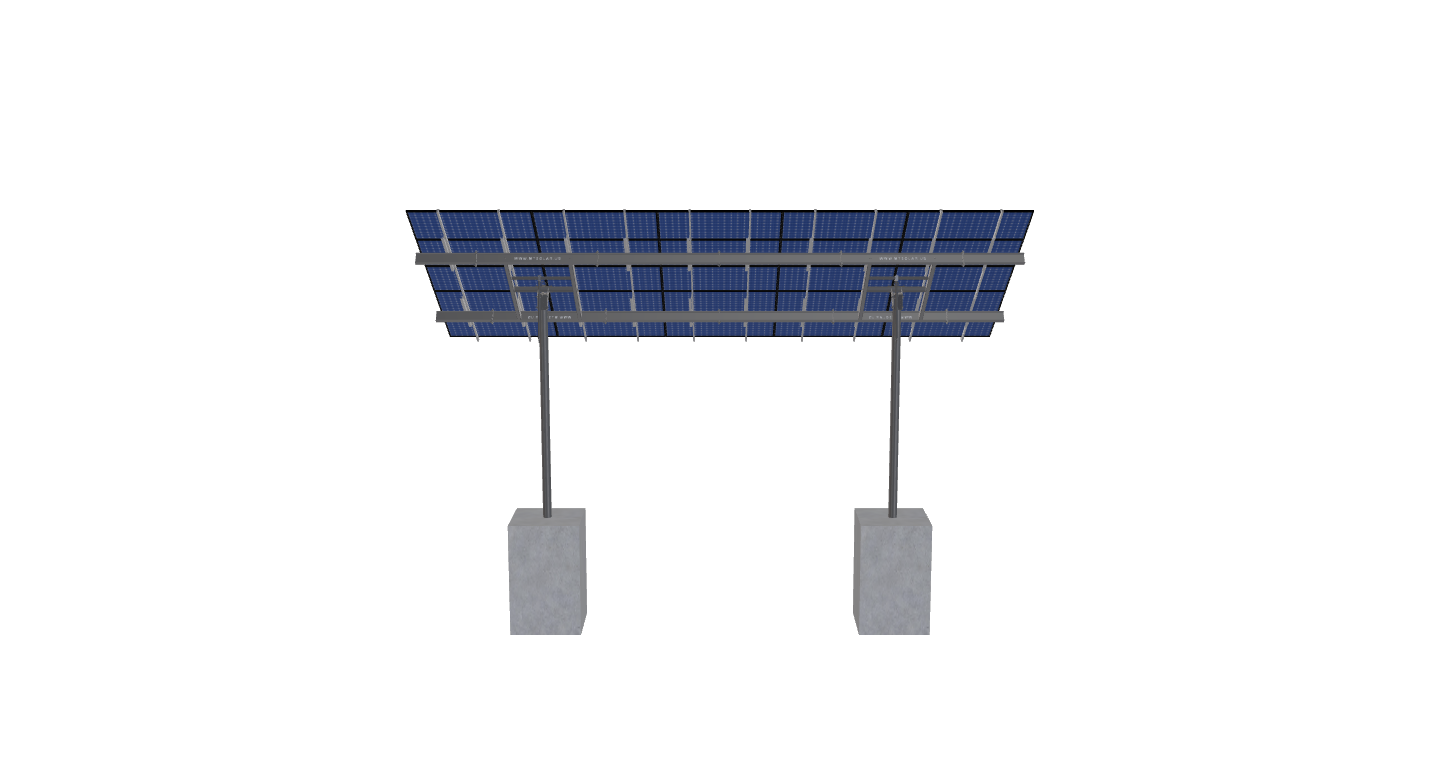

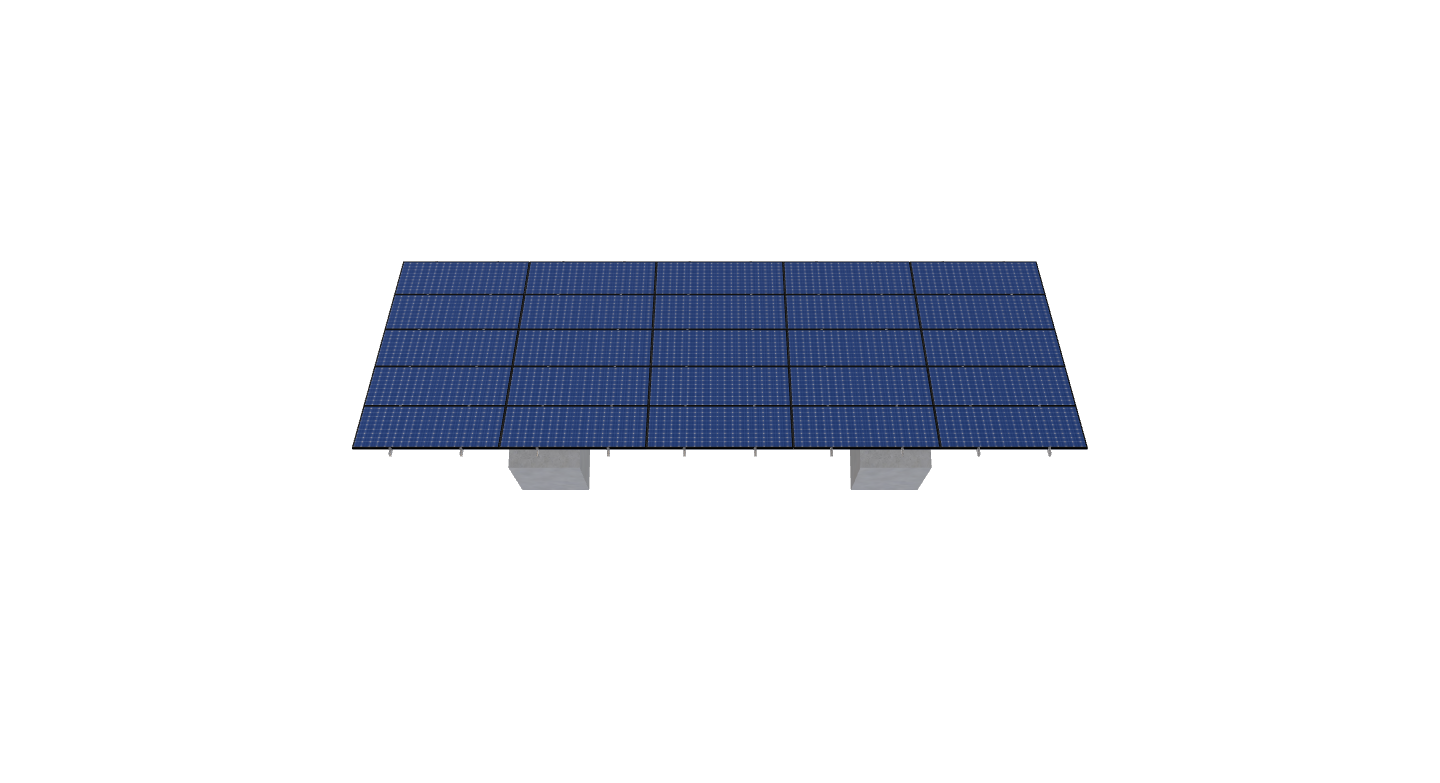

See 3D Model Here
Additional information

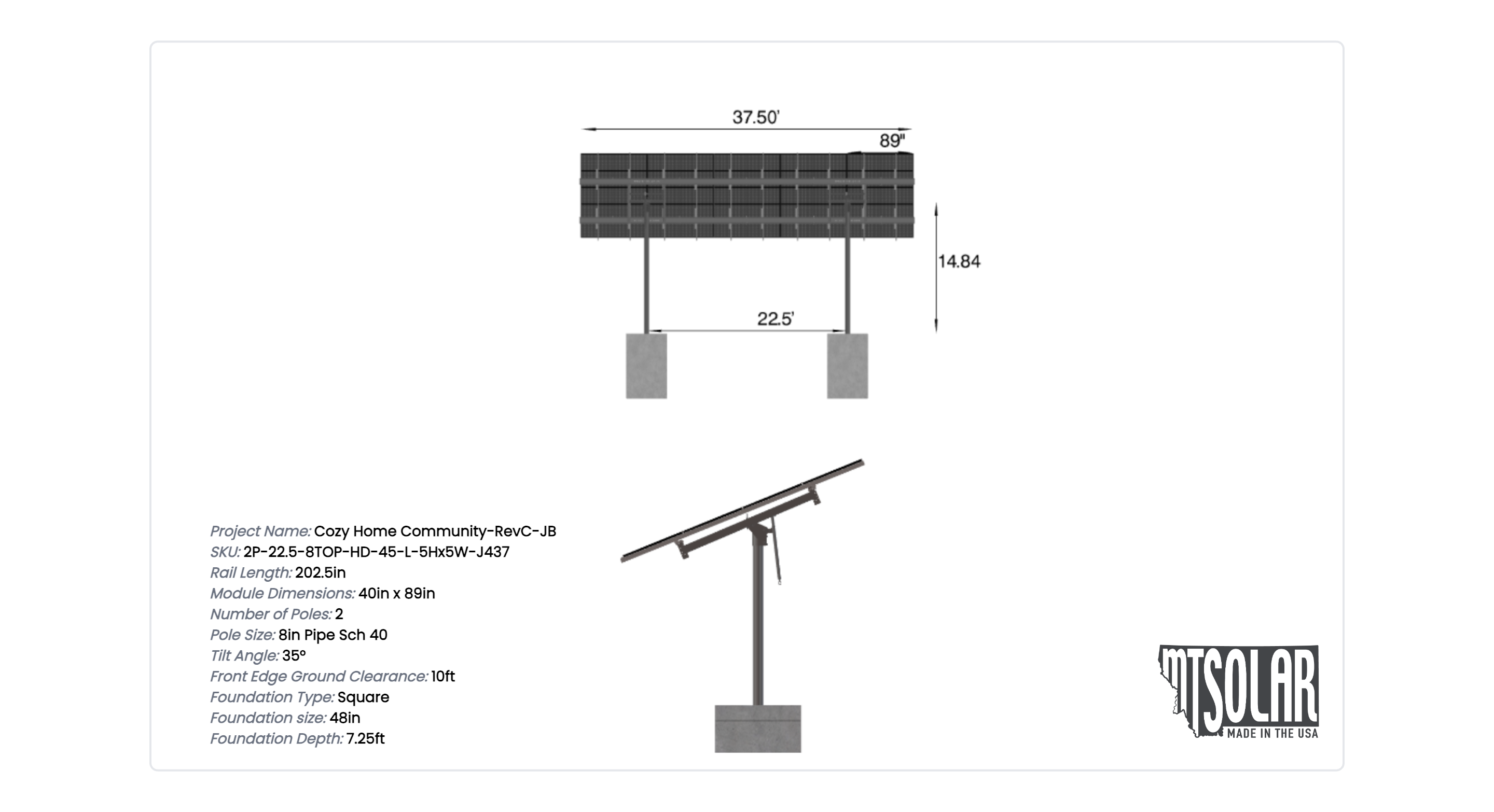

| Weight | 2051.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-HD-45-L-5HX5W-J437 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.84 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 632.81 |
| ARRAY WIDTH | 37.50 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 89.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 19.62 |
| PROJECTED PANEL HEIGHT | 9.56 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | COZY, HOME, COMMUNITY-REVC-JB |
| SITE ADDRESS | SLIPPERY, ROCK, PA, 16057, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10190.74 |
| TOTAL WEIGHT | 2051.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/904c33e2-6474-4abc-8934-4667d6318509.pdf |
|
| ID | 4134.00 |
| 3D Solar link |
