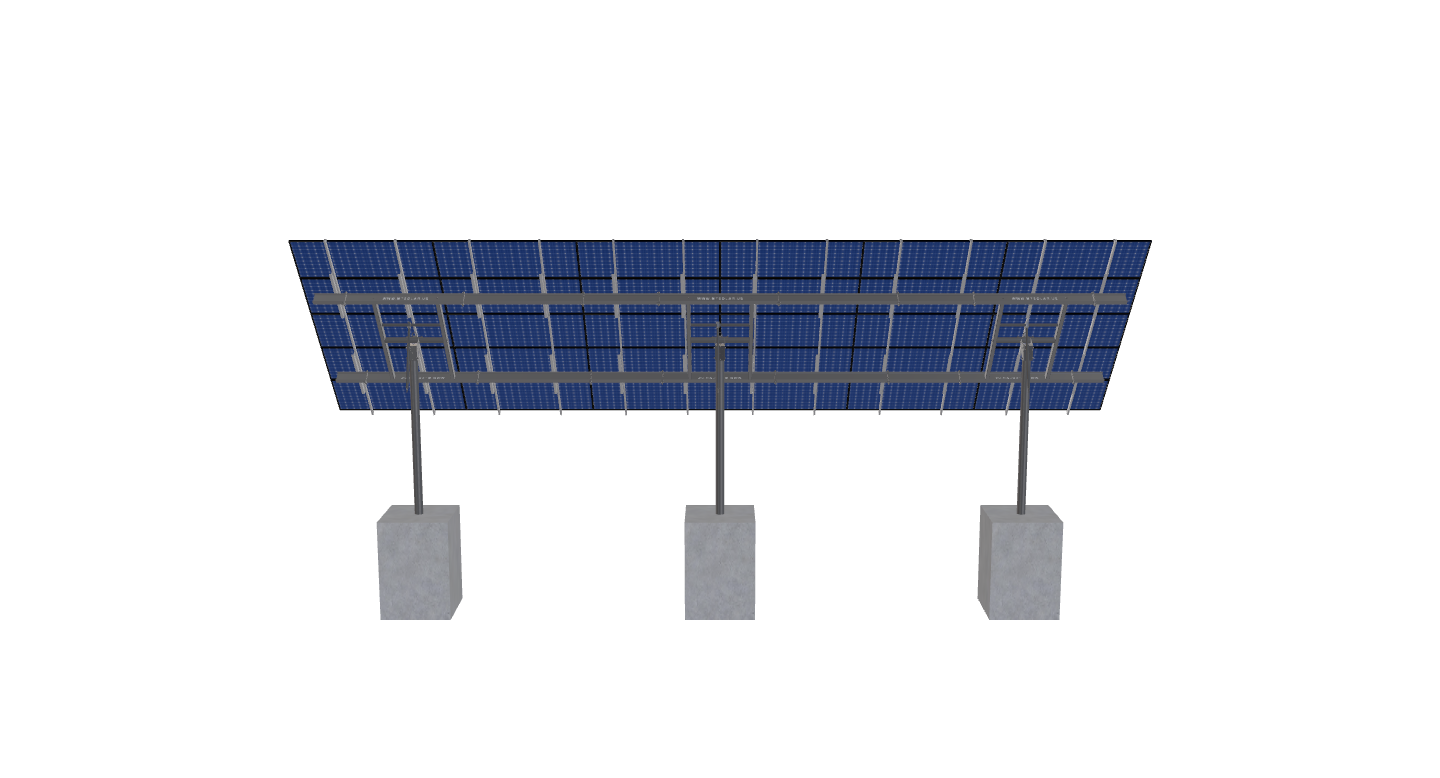

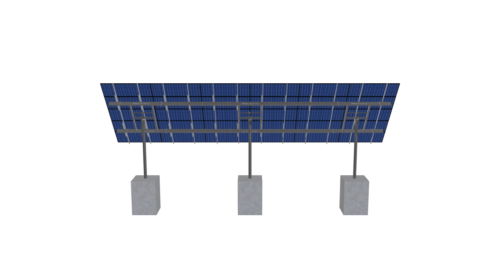

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 104.88 inches by 39.76 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

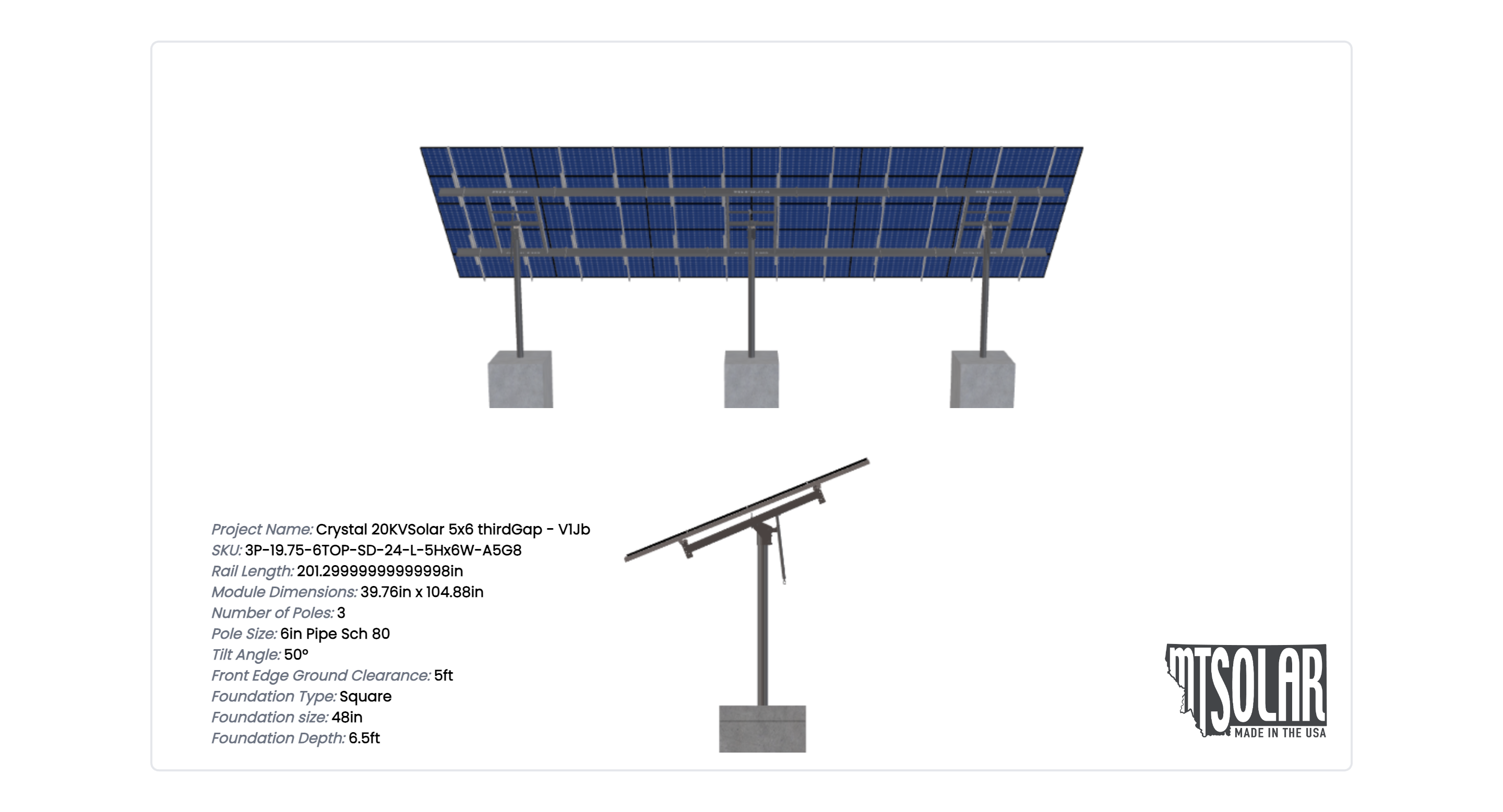

See 3D Model Here
Crystal 20KVSolar 5×6 thirdGap – V1Jb
$12,907.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 104.88 inches by 39.76 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2420.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-24-L-5HX6W-A5G8 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.43 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 888.07 |
| ARRAY WIDTH | 52.94 |
| ARRAY HEIGHT | 16.77 |
| RAIL LENGTH | 201.30 |
| MODULE LENGTH | 104.88 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 17.85 |
| PROJECTED PANEL HEIGHT | 12.85 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | CRYSTAL, 20KV, SOLAR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6162621738.00 |
| PROJECT ID | CRYSTAL, 20KVSOLAR, 5X6, THIRDGAP, -, V1JB |
| SITE ADDRESS | COLBY, RD, CRYSTAL, MI, 48818, USA |
| MODULE INFO | 20KV |
| MODULE WIDTH | 39.76 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12907.48 |
| TOTAL WEIGHT | 2420.64 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/a06cb4fc-39df-4ed6-90a8-4bd2b0109c7b.pdf |
|
| ID | 10999.00 |
| 3D Solar link |
