Dan Savage

$3,200.55

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

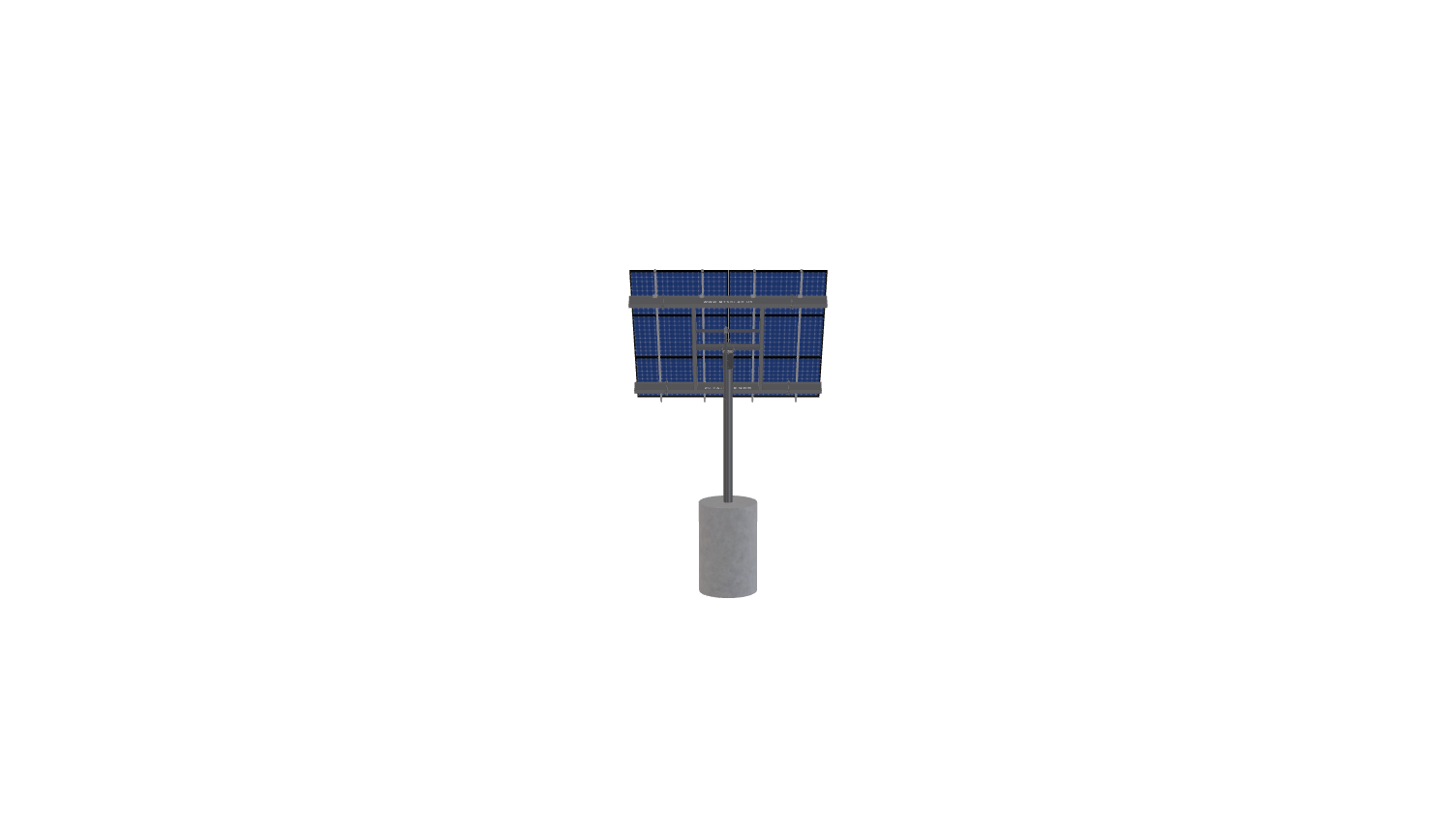

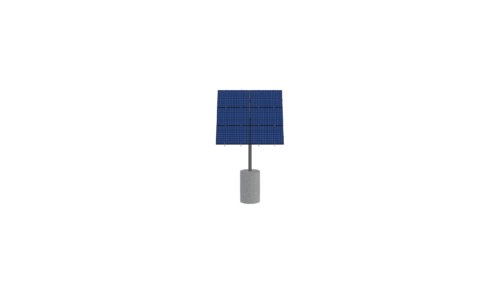

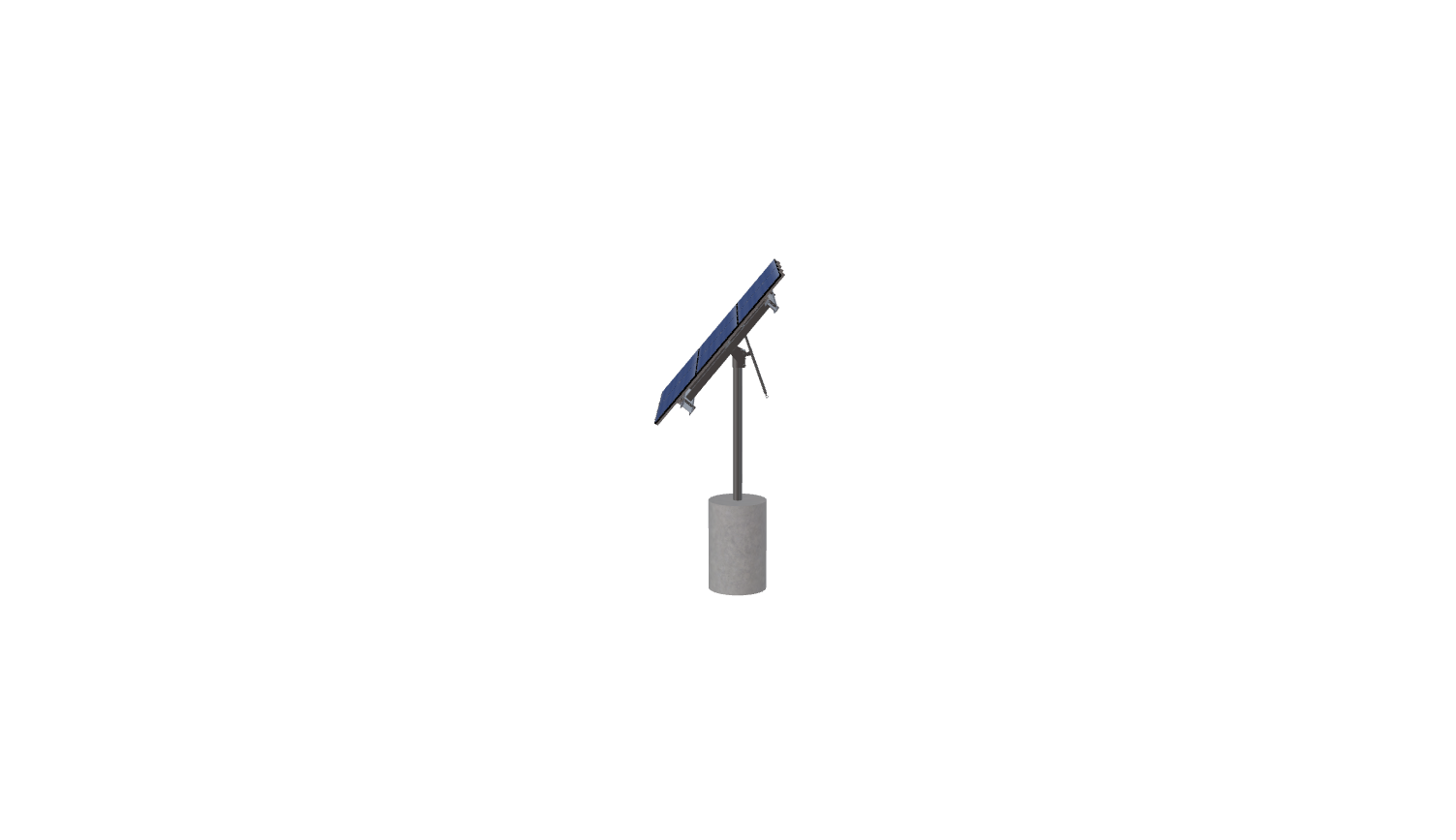

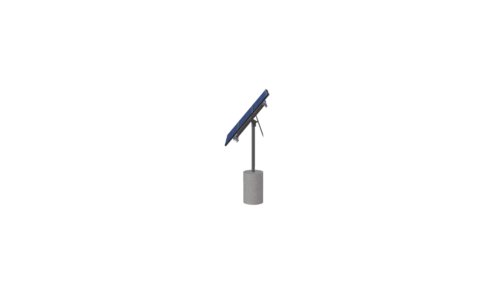

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-24-L-3Hx2W-8374 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 548.84 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-24-L-3HX2W-8374

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.36

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

50.00

CANTILEVER

138.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

130.81

ARRAY WIDTH

11.50

ARRAY HEIGHT

11.38

RAIL LENGTH

136.50

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

13.67

PROJECTED PANEL HEIGHT

8.62

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

60.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DAN, SAVAGE

SITE ADDRESS

RIFLE, CO, 81650, USA

MODULE WIDTH

45.00

NUMBER ROWS

3.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

3200.55

TOTAL WEIGHT

548.84

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/5e0e595a-f9ad-486e-88a1-0a617b4659c7.pdf

ID

6704.00
