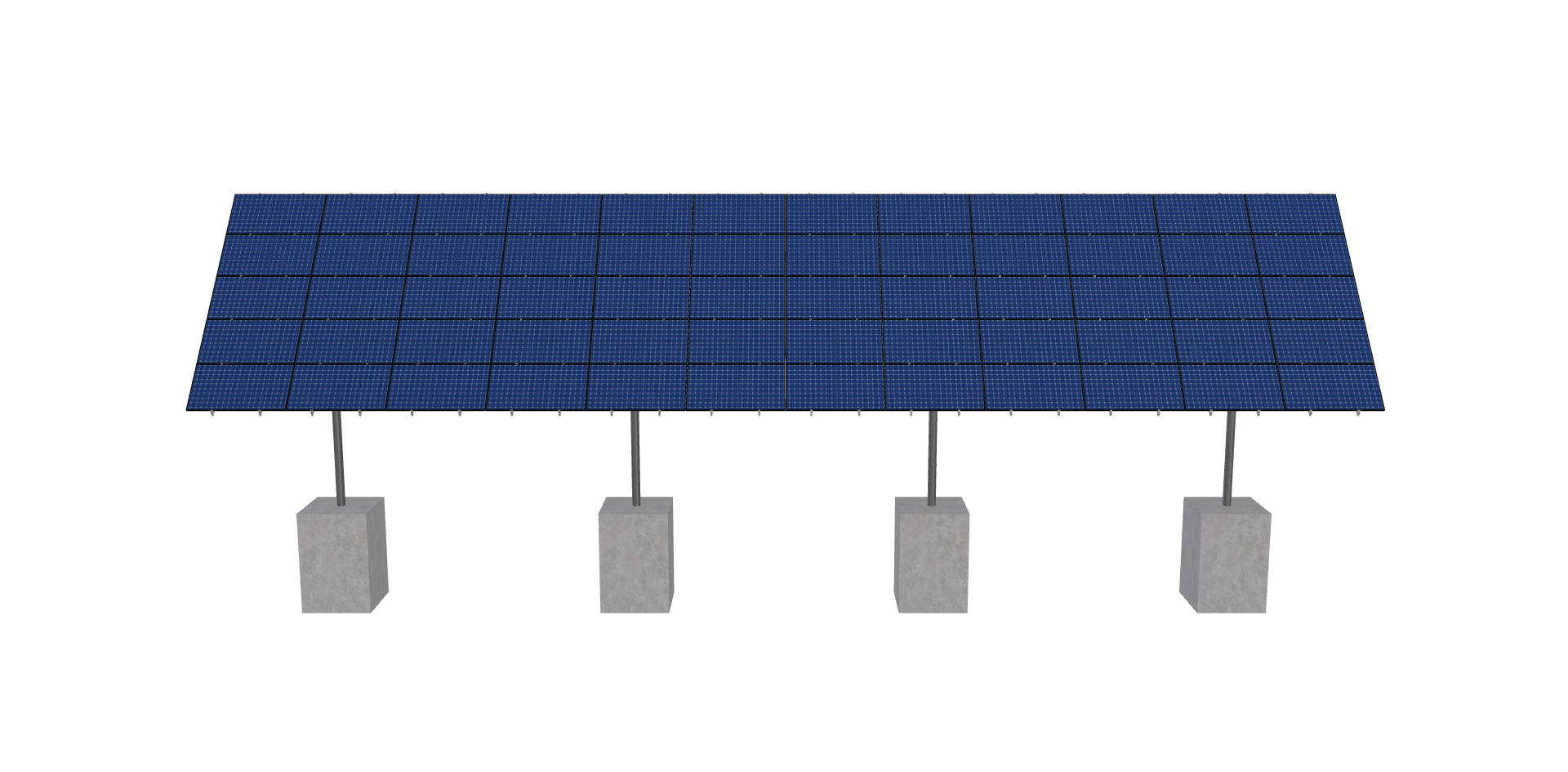

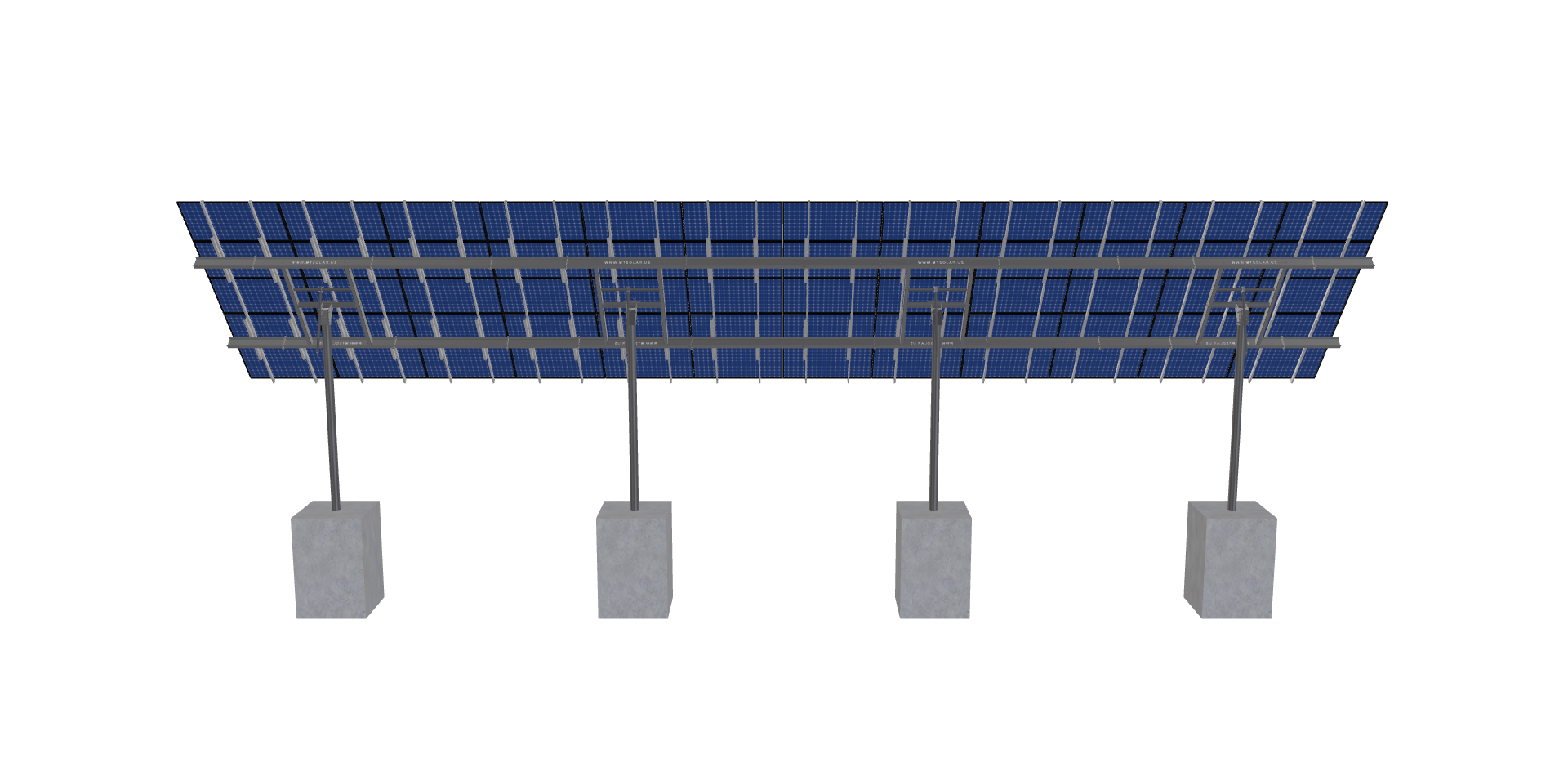

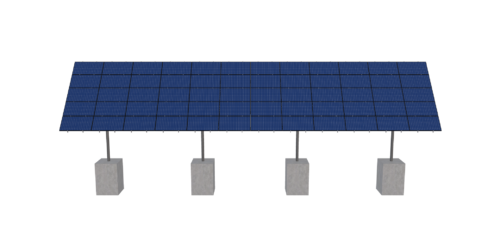

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.7 inches by 40.6 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Daniel Andresen 1470
$18,962.96
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.7 inches by 40.6 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3753.7799999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-45-L-5HX12W-8K53 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.56 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1279.24 |
| ARRAY WIDTH | 74.70 |
| ARRAY HEIGHT | 17.13 |
| RAIL LENGTH | 205.50 |
| MODULE LENGTH | 73.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 20.04 |
| PROJECTED PANEL HEIGHT | 12.96 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | DANIEL, ANDRESEN, 1470 |
| SITE ADDRESS | 1470, MN-6, REMER, MN, 56672, USA |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18962.96 |
| TOTAL WEIGHT | 3753.78 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/78482fa3-cca0-4847-9954-c68ea42cfbb2.pdf |
|
| ID | 5014.00 |
| 3D Solar link |
