This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 40 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 4in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

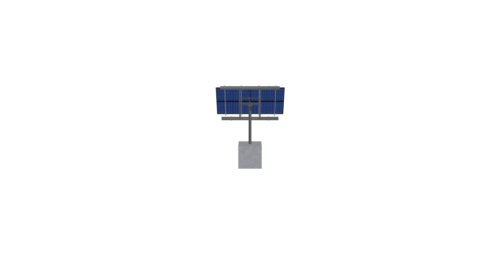

See 3D Model Here
DaveM-JB-RevC
$3,214.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 40 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 4in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 529.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-24-L-2HX2W-2H55 |
| DUTY SIZE | SD |
| POLE SIZE | 4IN, PIPE, SCH, 80 |
| PRODUCT TYPE | CYBER |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.92 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 91.13 |
| ARRAY WIDTH | 13.50 |
| ARRAY HEIGHT | 6.75 |
| RAIL LENGTH | 81.00 |
| MODULE LENGTH | 80.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 10.81 |
| PROJECTED PANEL HEIGHT | 5.77 |
| WIND SPEED OVERRIDE | 102.00 |
| SNOW LOAD OVERRIDE | 73.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | DAVEM-JB-REVC |
| SITE ADDRESS | 6989, CENTERVILLE, RD, EAGLE, NY, 14024, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 2.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3061.28 |
| TOTAL WEIGHT | 529.92 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/7d0eee86-7cd3-40ea-b013-88e41336162f.pdf |
|
| ID | 2008.00 |
| 3D Solar link |
