This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Dustin J Eleva 460WBi
$17,526.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

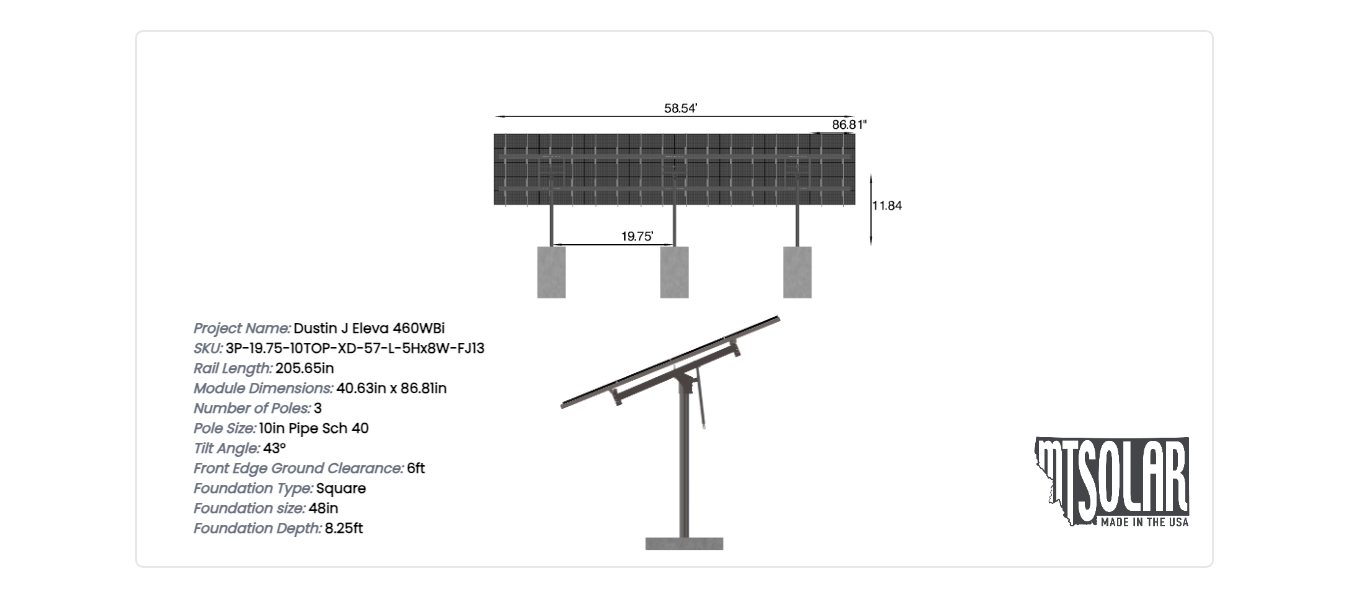

| Weight | 3544.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-XD-57-L-5HX8W-FJ13 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.84 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 43.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1003.23 |
| ARRAY WIDTH | 58.54 |
| ARRAY HEIGHT | 17.14 |
| RAIL LENGTH | 205.65 |
| MODULE LENGTH | 86.81 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 17.62 |
| PROJECTED PANEL HEIGHT | 11.55 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | DUSTIN, J, ELEVA, 460WBI |
| SITE ADDRESS | N46696, HOLDEN, RD, ELEVA, WI, 54738, USA |
| MODULE WIDTH | 40.63 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17526.38 |
| TOTAL WEIGHT | 3544.37 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/7102d6f6-5a78-45b6-8942-dbac464699d1.pdf |
|
| ID | 2505.00 |
| 3D Solar link |
