This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.7 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

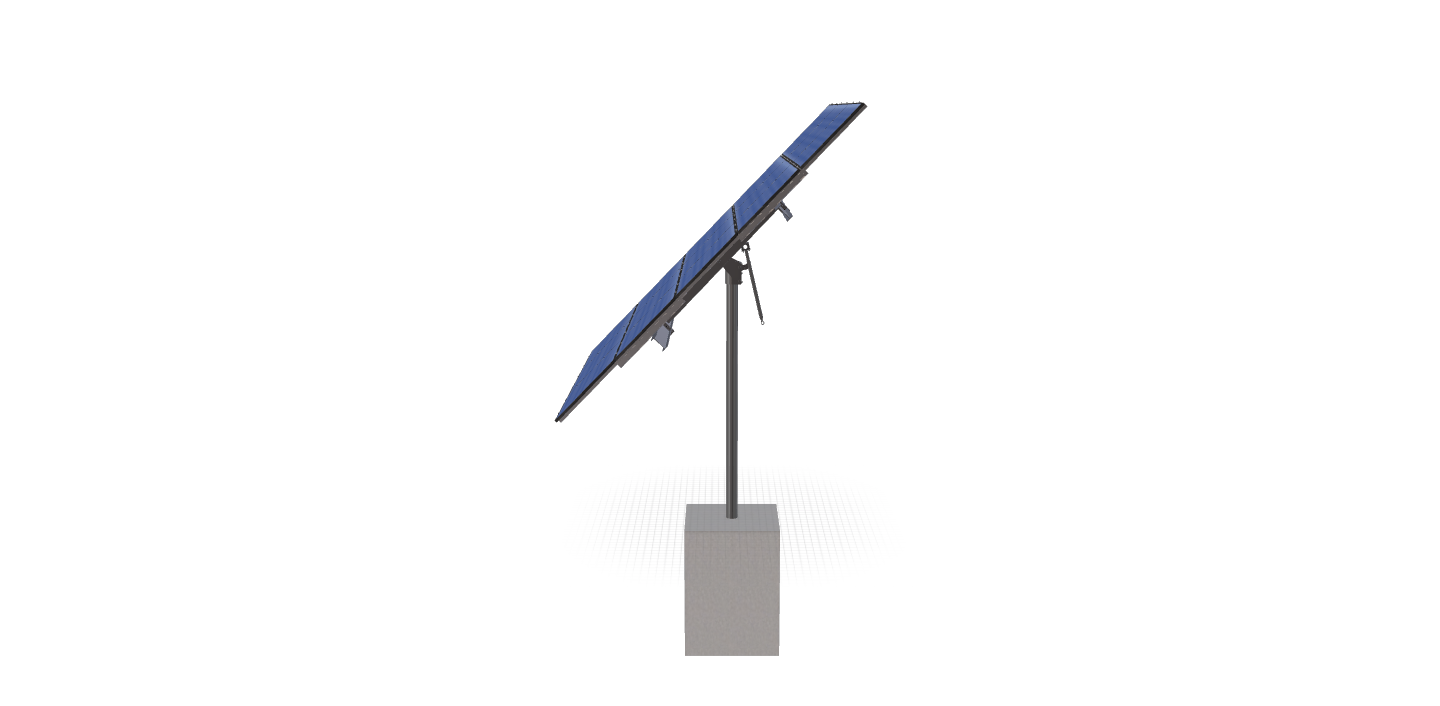

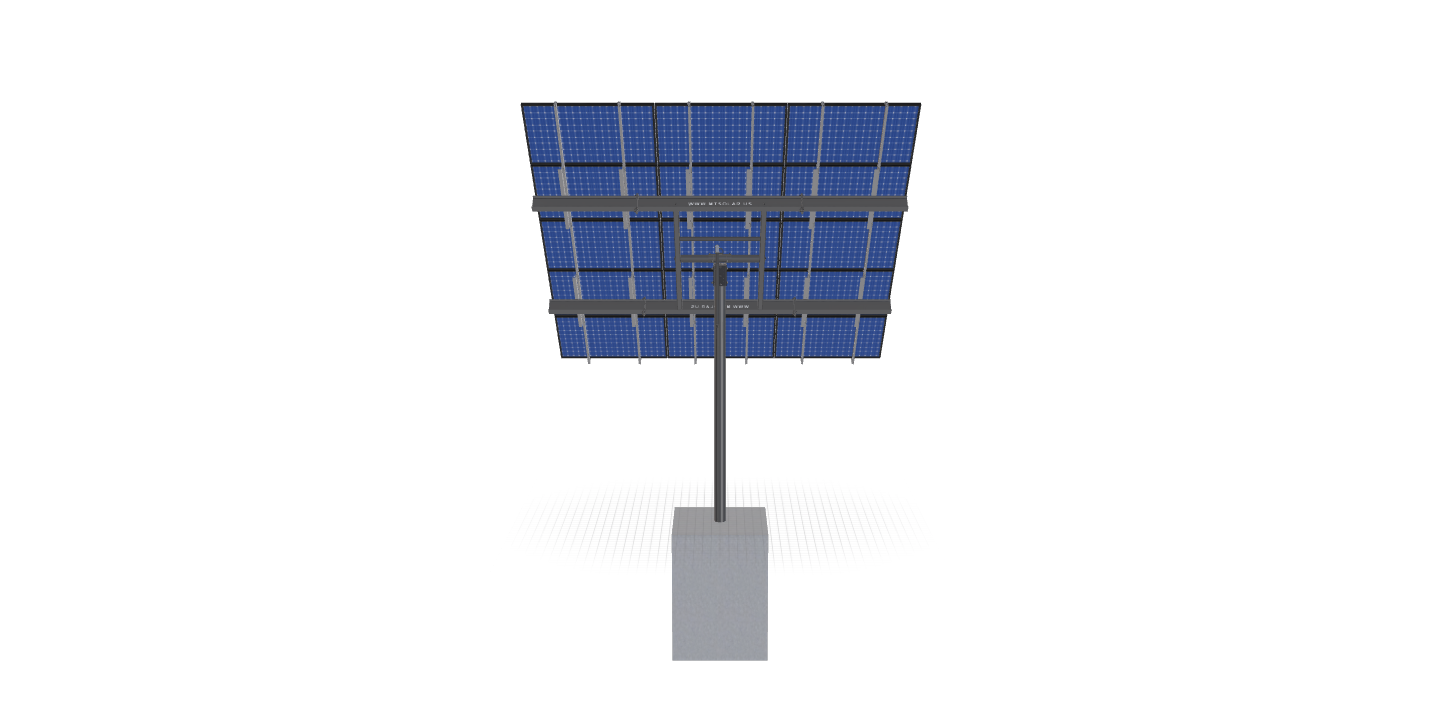

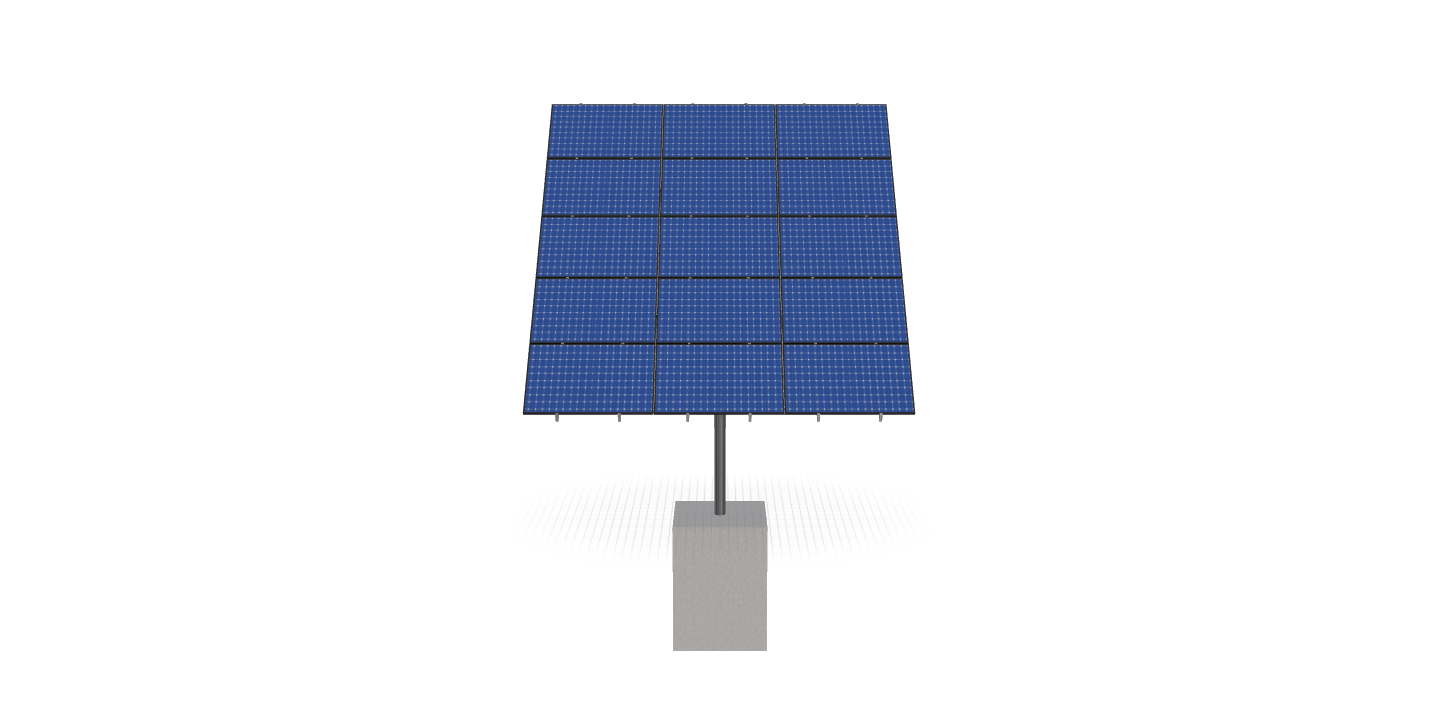

See 3D Model Here
E1500A
$4,549.18
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.7 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 892.3199999999999 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-57-L-5HX3W-HK84 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 12.77 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 6.25 |
TILT ANGLE | 46.00 |
CANTILEVER | 204.00 |
GROUND CLEARANCE | 6.00 |
NO POLES | 1.00 |
MODULE AREA | 323.93 |
ARRAY WIDTH | 17.20 |
ARRAY HEIGHT | 18.83 |
RAIL LENGTH | 226.00 |
MODULE LENGTH | 67.80 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 17.00 |
GROUND TO TOP | 19.47 |
PROJECTED PANEL HEIGHT | 13.40 |
PROJECT ID | E1500A |
SITE ADDRESS | 31880, MOON, RIDGE, CT, SCAPPOOSE, OR, 97056, USA |
MODULE WIDTH | 44.70 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
WIND SPEED OVERRIDE | 96.00 |
SNOW LOAD OVERRIDE | 36.00 |
DIRECT SNOW LOAD | FALSE |
TOTAL PRICE | 4549.18 |
TOTAL WEIGHT | 892.32 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/88b0efbf-9697-49ec-8a70-f60a5bf39174.pdf |
|
ID | 1272.00 |
3D Solar link |
