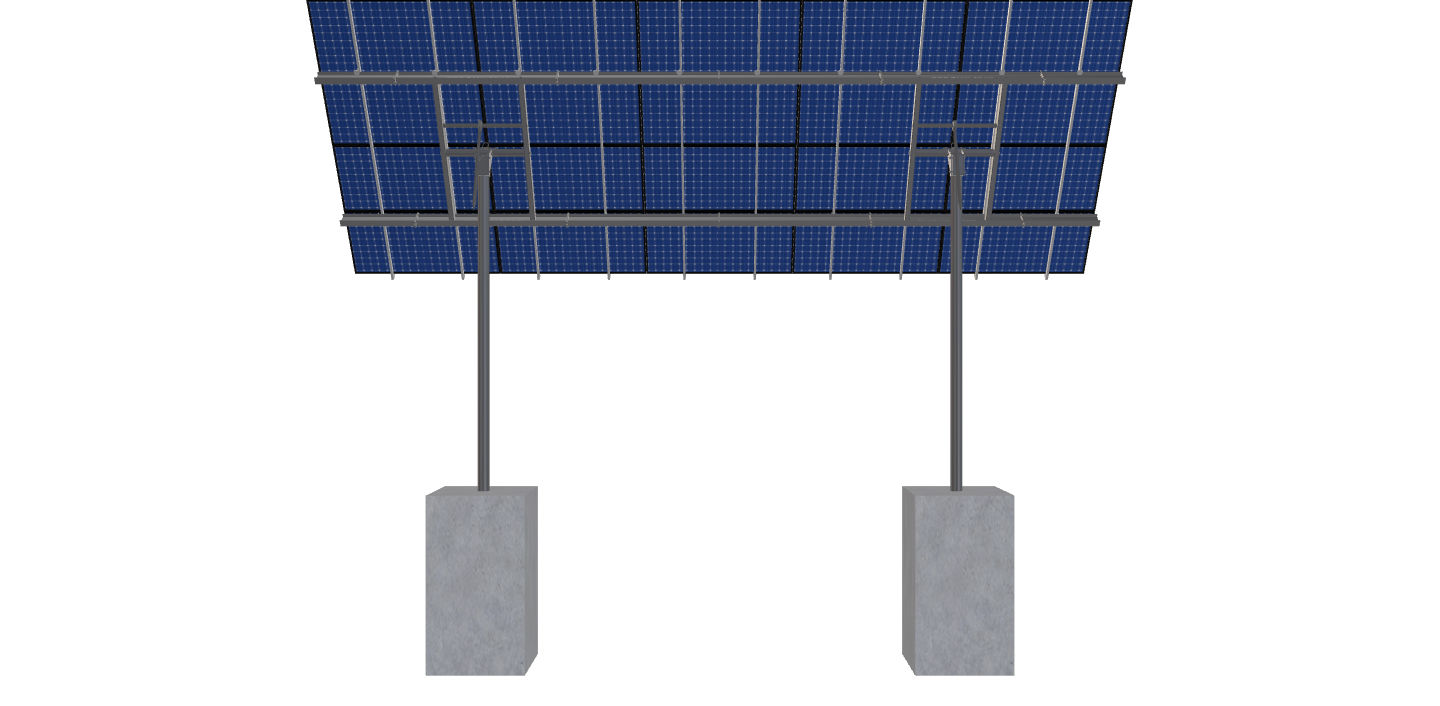

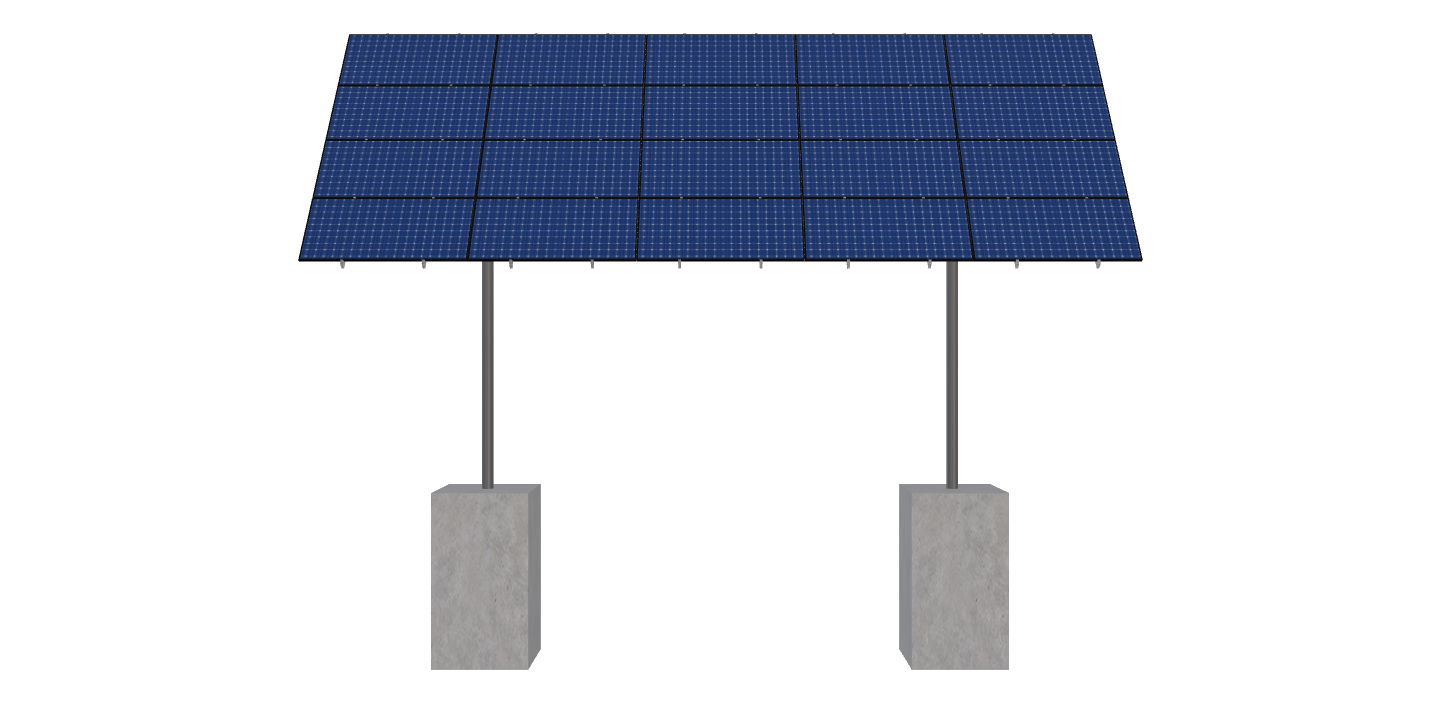

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Elk Creek SPS2 4×5 55D 10C
$10,397.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1962.7999999999997 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-8TOP-XD-45-L-4HX5W-36LB |
DUTY SIZE | XD |
POLE SIZE | 8IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 16.16 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 8.25 |
TILT ANGLE | 55.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 2.00 |
MODULE AREA | 568.70 |
ARRAY WIDTH | 37.79 |
ARRAY HEIGHT | 15.05 |
RAIL LENGTH | 180.60 |
MODULE LENGTH | 89.69 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 22.26 |
PROJECTED PANEL HEIGHT | 12.19 |
WIND SPEED OVERRIDE | 100.00 |
SNOW LOAD OVERRIDE | 152.00 |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | ELK, CREEK, SPS2, 4X5, 55D, 10C |
SITE ADDRESS | 2222+22, COLLEGE, CITY, CA, 95912, USA |
MODULE WIDTH | 44.65 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 5.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 10397.49 |
TOTAL WEIGHT | 1962.80 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/141bf418-e9ae-447a-b9b2-e2c1bbea5505.pdf |
|
ID | 1498.00 |
3D Solar link |
