Elk Creek SPS2 5×6 50D

$15,100.60

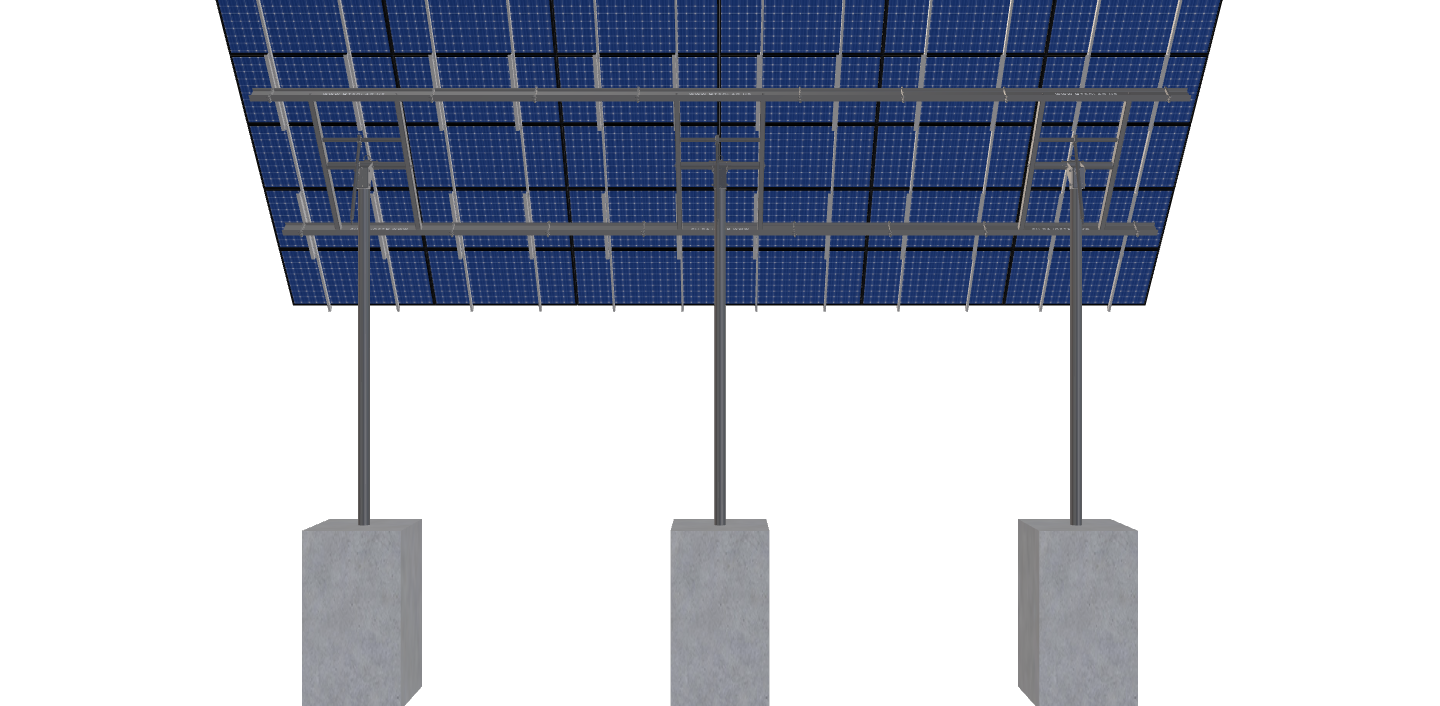

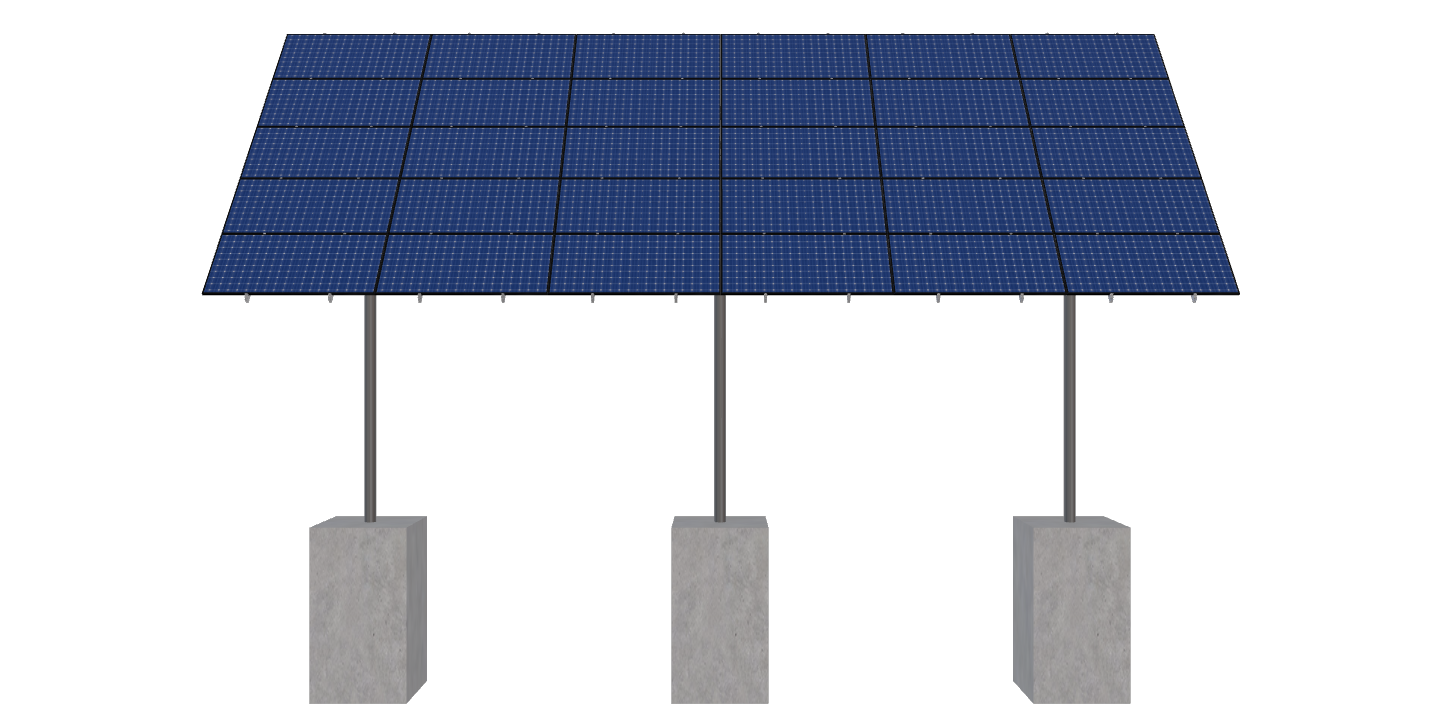

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 3P-17-8TOP-XD-12-L-5Hx6W-93LF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2984.49 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-8TOP-XD-12-L-5HX6W-93LF

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

17.21

WING SPAN

12.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

50.00

CANTILEVER

522.00

GROUND CLEARANCE

10.00

NO POLES

3.00

MODULE AREA

853.05

ARRAY WIDTH

45.34

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

89.69

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

43.50

GROUND TO TOP

24.33

PROJECTED PANEL HEIGHT

14.25

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

152.00

DIRECT SNOW LOAD

FALSE

PROJECT ID

ELK, CREEK, SPS2, 5X6, 50D

SITE ADDRESS

2222+22, COLLEGE, CITY, CA, 95912, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

15100.60

TOTAL WEIGHT

2984.49

TOTAL PALLETS

3.00
