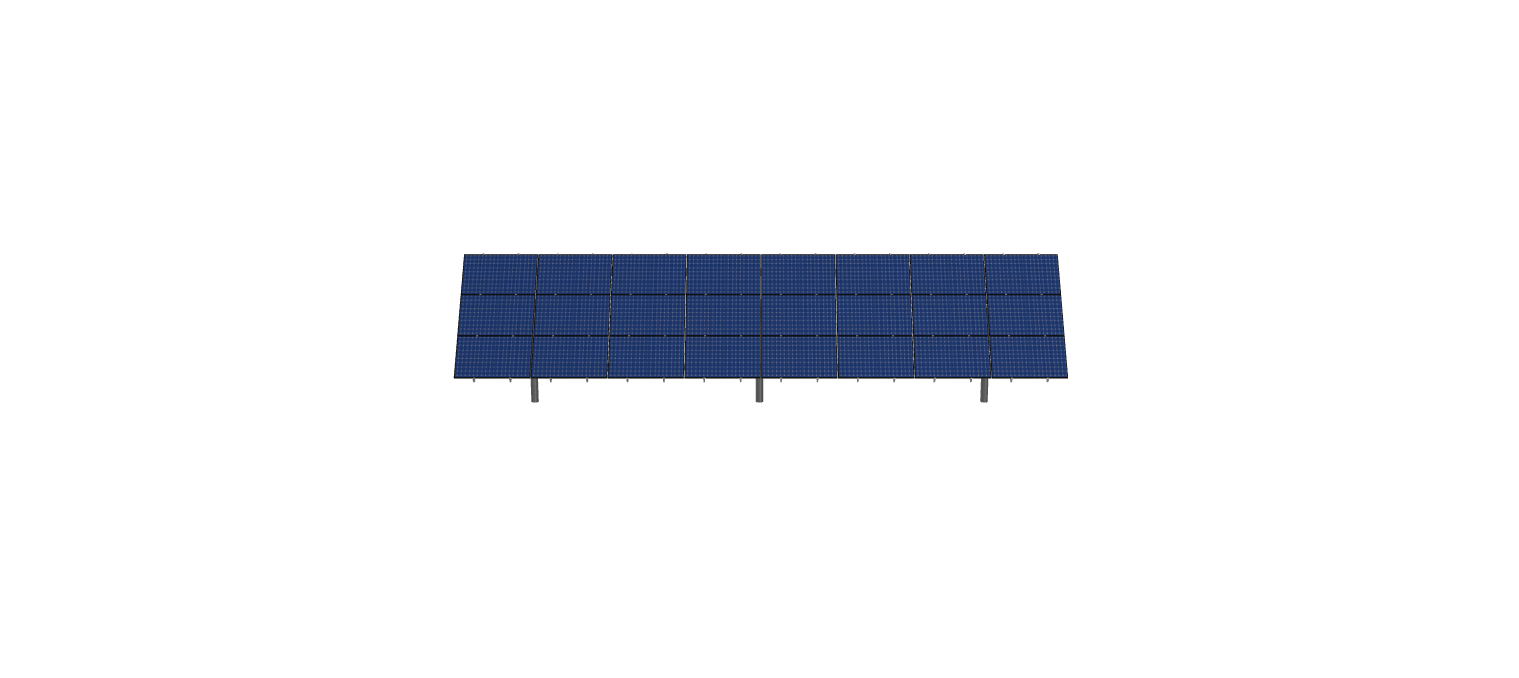

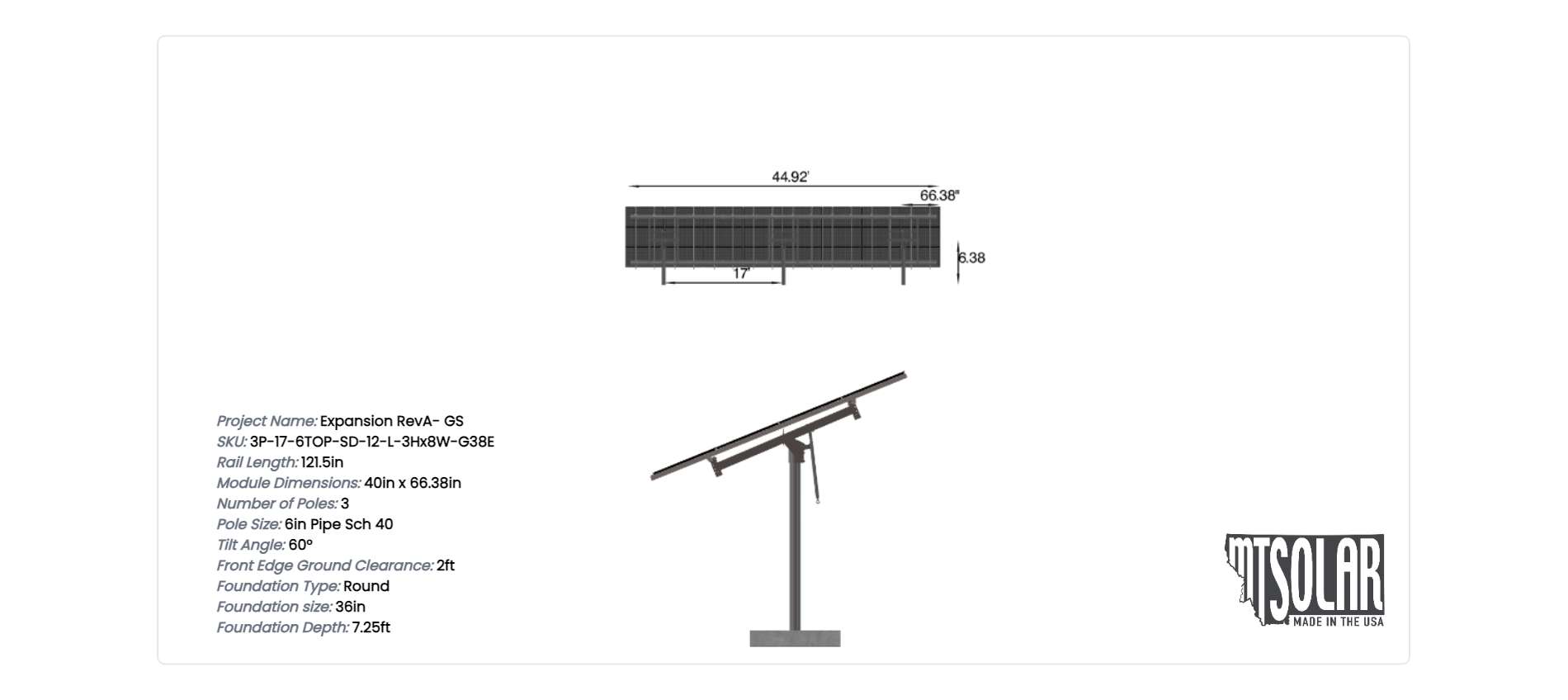

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.38 inches by 40 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Expansion RevA- GS
$10,957.80
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.38 inches by 40 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1916.3600000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-12-L-3HX8W-G38E |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 6.38 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.25 |

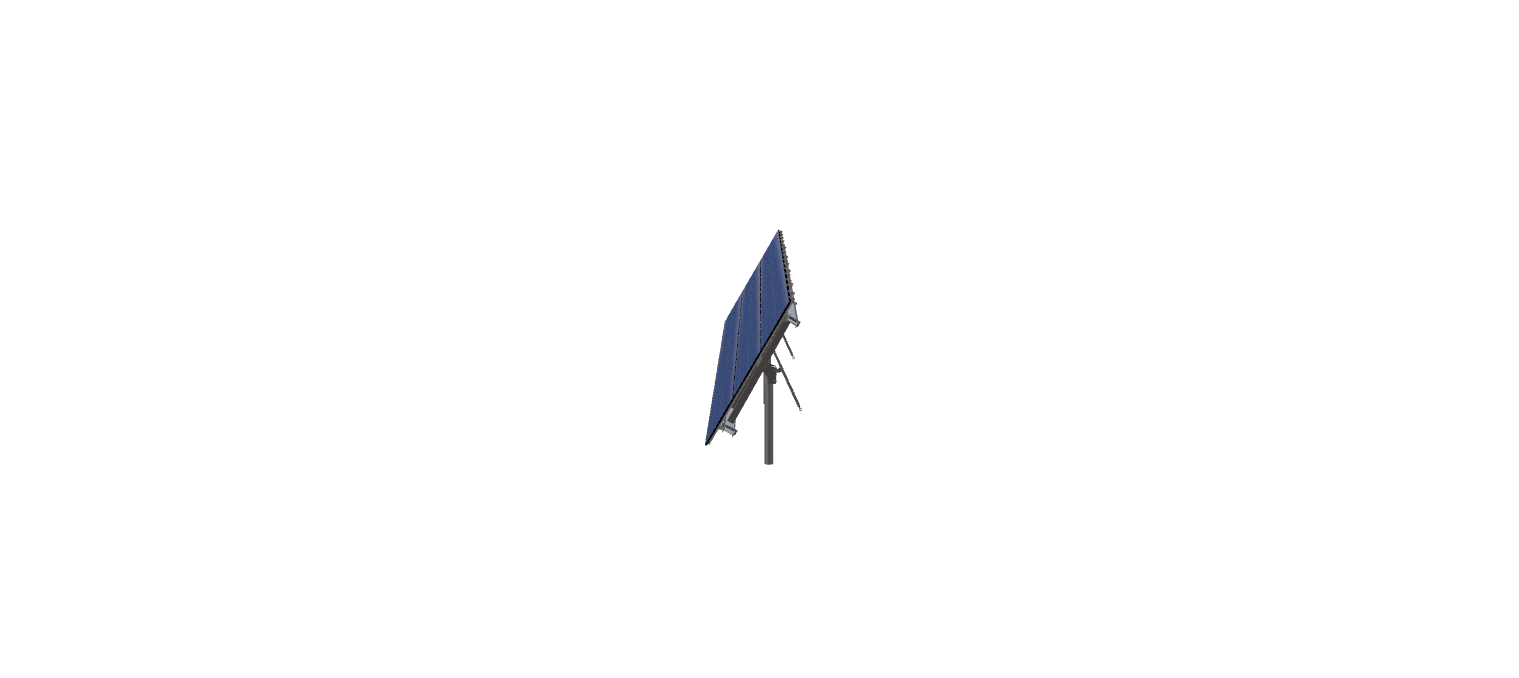

| TILT ANGLE | 60.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 3.00 |
| MODULE AREA | 454.81 |
| ARRAY WIDTH | 44.92 |
| ARRAY HEIGHT | 10.13 |
| RAIL LENGTH | 121.50 |
| MODULE LENGTH | 66.38 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 10.71 |
| PROJECTED PANEL HEIGHT | 8.66 |
| PROJECT ID | EXPANSION, REVA-, GS |
| SITE ADDRESS | 1225, FREDS, MOUNTAIN, RD, RENO, NV, 89508, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 10957.80 |
| TOTAL WEIGHT | 1916.36 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/31eb2955-9800-4123-b281-5185c9bab5fb.pdf |
|
| ID | 2123.00 |
| 3D Solar link |
