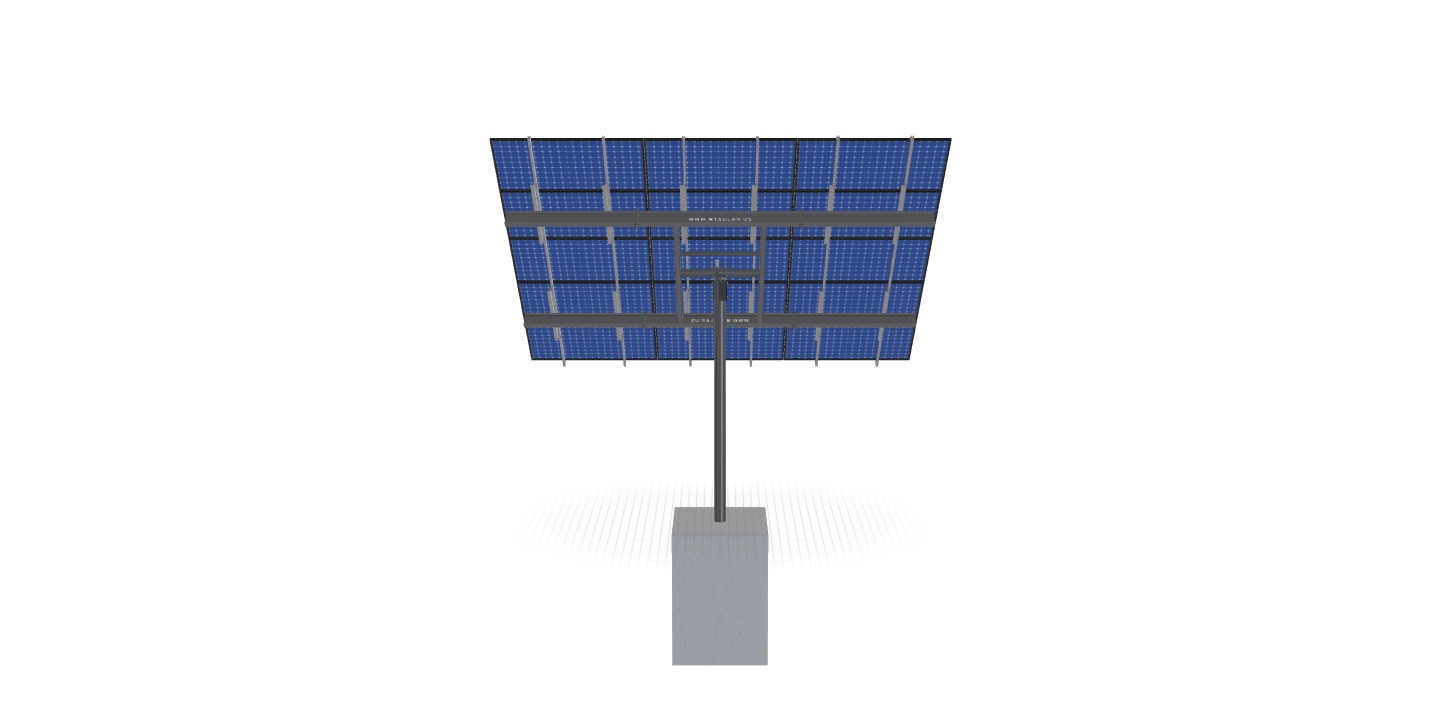

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.5 inches by 40 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Fenix Farm Road B
$6,193.47
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.5 inches by 40 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1193.8700000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-72-L-5HX3W-9G12 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.07 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 339.61 |
| ARRAY WIDTH | 20.13 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 79.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 18.06 |
| PROJECTED PANEL HEIGHT | 11.99 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 53.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | FENIX, FARM, ROAD, B |
| SITE ADDRESS | 65, FARM, RD, SHERBORN, MA, 01770, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 5898.54 |
| TOTAL WEIGHT | 1193.87 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/44e382fd-ad69-4c8f-9d89-85cadc362fa0.pdf |
|
| ID | 1429.00 |
| 3D Solar link |
