Fletcher-Area2-RevC-JB

$17,320.21

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

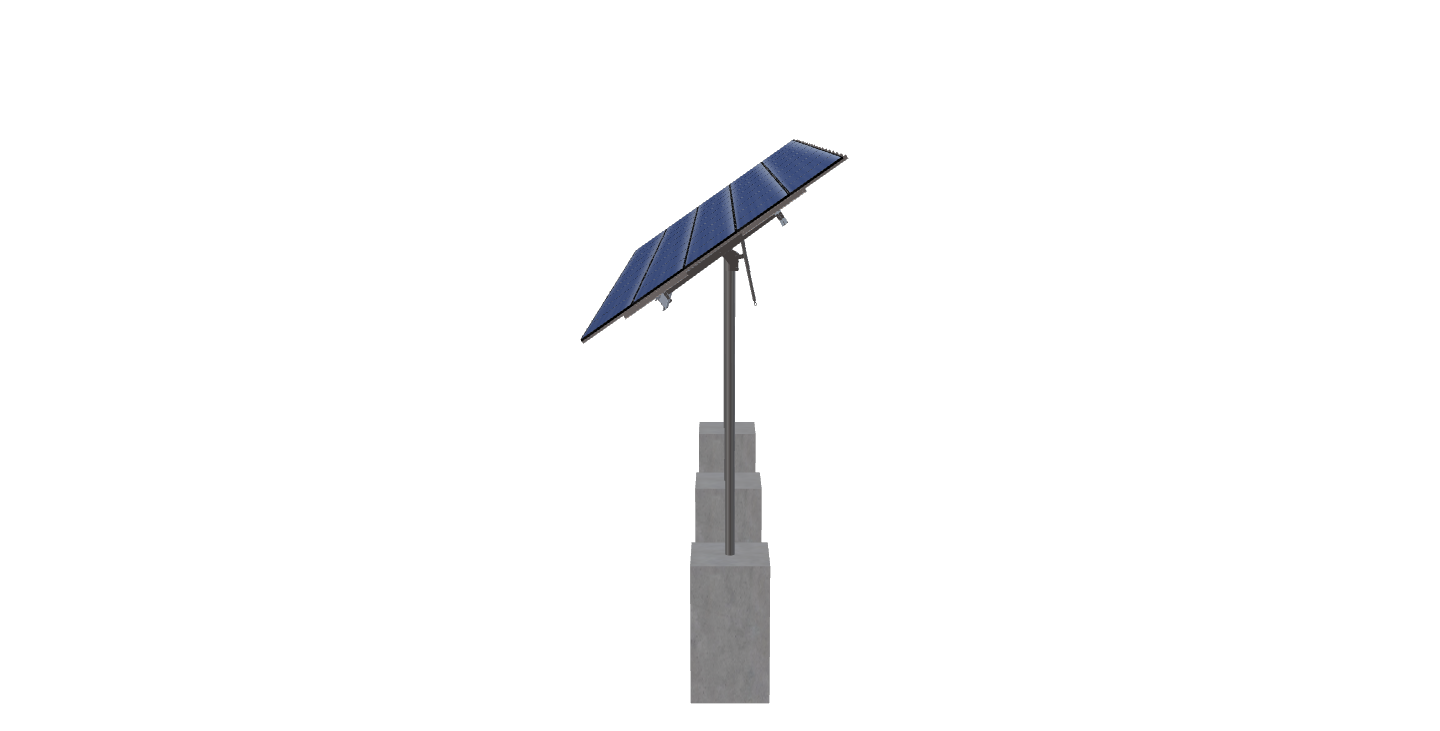

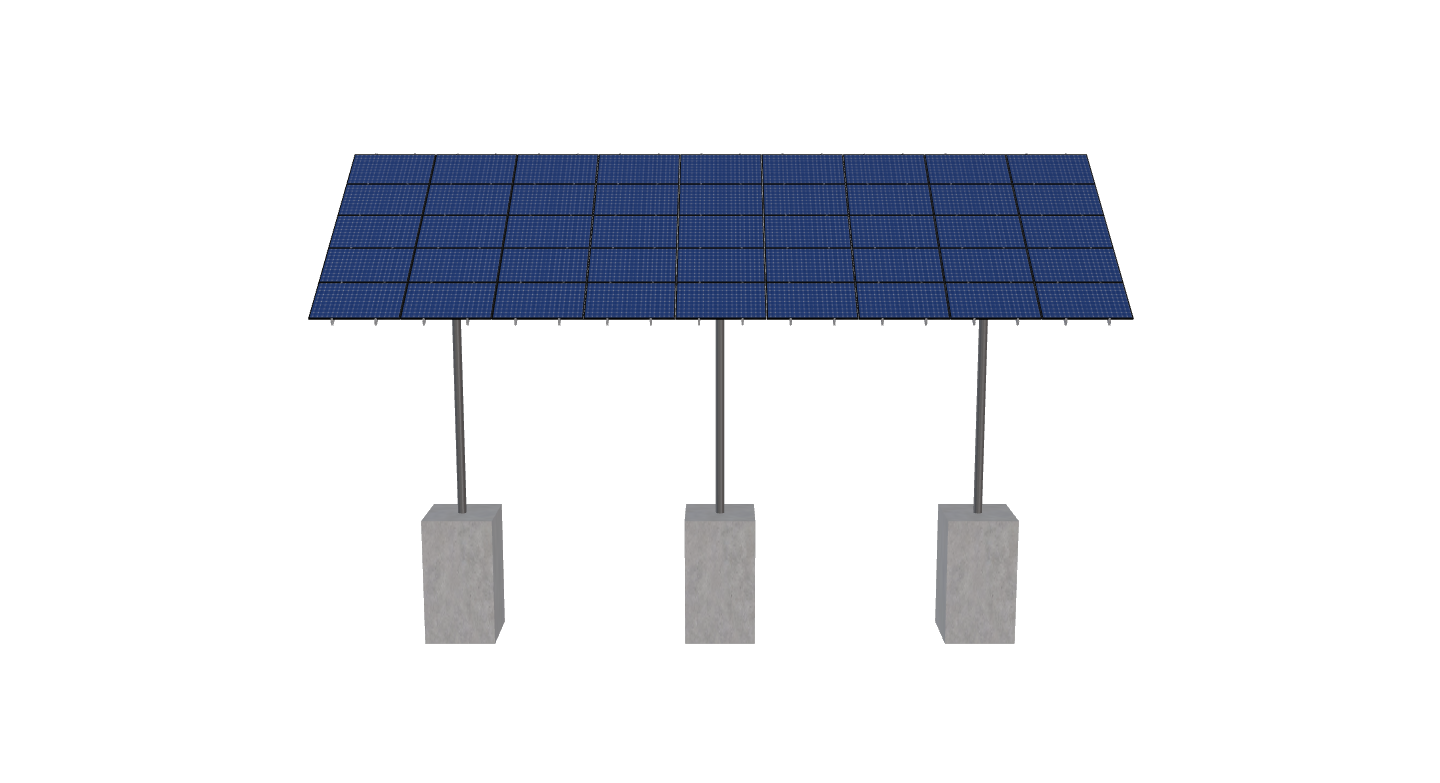

See 3D Model Here

SKU: 3P-17-10TOP-XD-45-L-5Hx9W-DDI0 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3465.81 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-10TOP-XD-45-L-5HX9W-DDI0

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

17.84

WING SPAN

45.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

35.00

CANTILEVER

588.00

GROUND CLEARANCE

13.00

NO POLES

3.00

MODULE AREA

835.31

ARRAY WIDTH

49.50

ARRAY HEIGHT

16.88

RAIL LENGTH

202.50

MODULE LENGTH

65.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

49.00

GROUND TO TOP

22.62

PROJECTED PANEL HEIGHT

9.56

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

90.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

FLETCHER-AREA2-REVC-JB

SITE ADDRESS

80, MAIN, ST, PARIS, ME, 04281, USA

MODULE WIDTH

40.00

NUMBER ROWS

5.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

17320.21

TOTAL WEIGHT

3465.81

TOTAL PALLETS

3.00
