This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

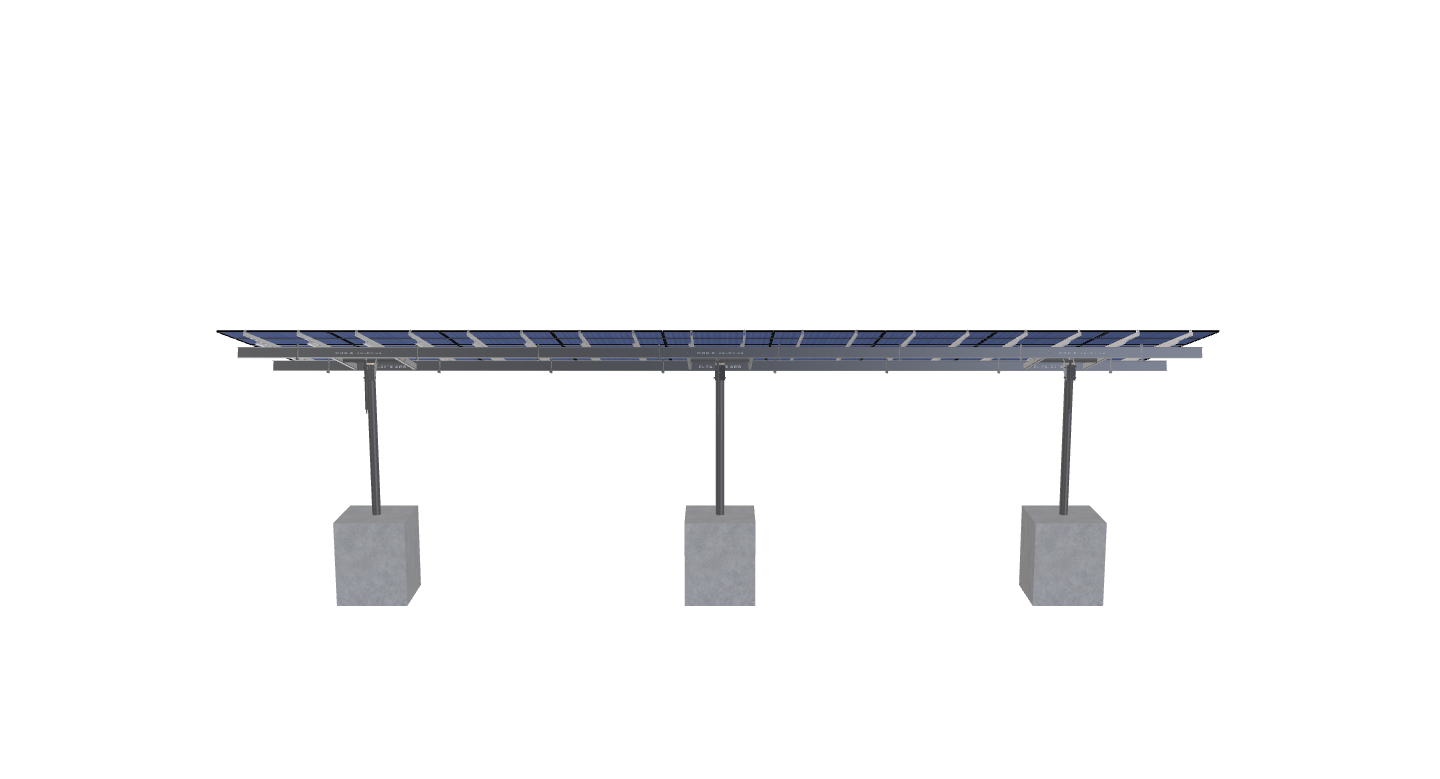

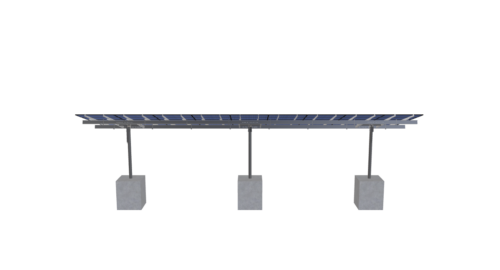

See 3D Model Here
Forest Ridge Apartments-45mods-JB
$15,113.07
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

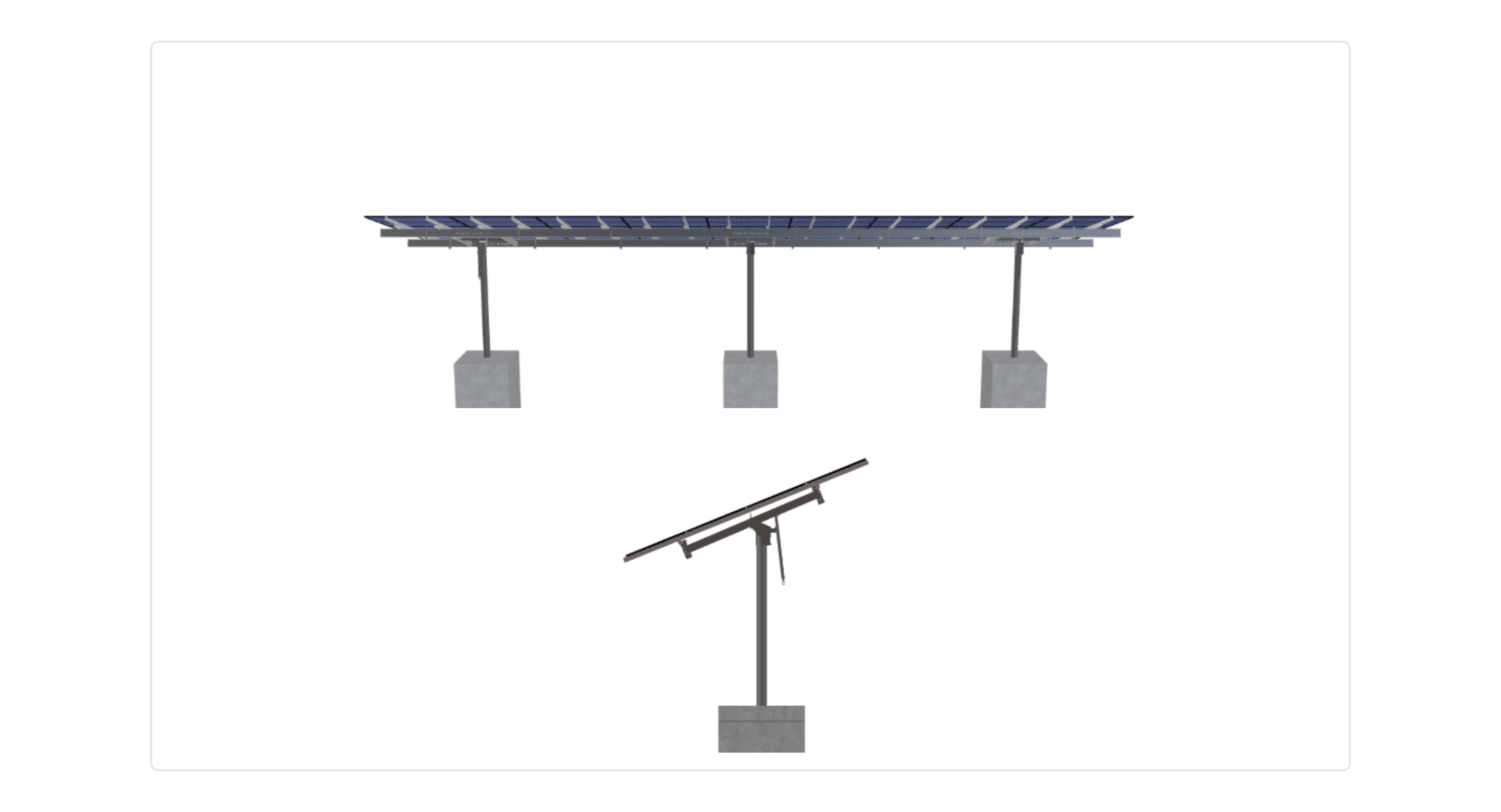

See 3D Model Here
Additional information
| Weight | 2886.96 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-SD-45-L-5HX9W-1AIE |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.18 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1012.50 |
| ARRAY WIDTH | 60.00 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 79.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 12.34 |
| PROJECTED PANEL HEIGHT | 4.31 |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 8.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | FOREST, RIDGE, APARTMENTS-45MODS-JB |
| SITE ADDRESS | 899, PITTS, RD, HATTIESBURG, MS, 39402, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14502.93 |
| TOTAL WEIGHT | 2886.96 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/8546423b-e2c2-434f-8d33-a15548a921a9.pdf |
|
| ID | 4763.00 |
| 3D Solar link |
