This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.976 inches by 41.14 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

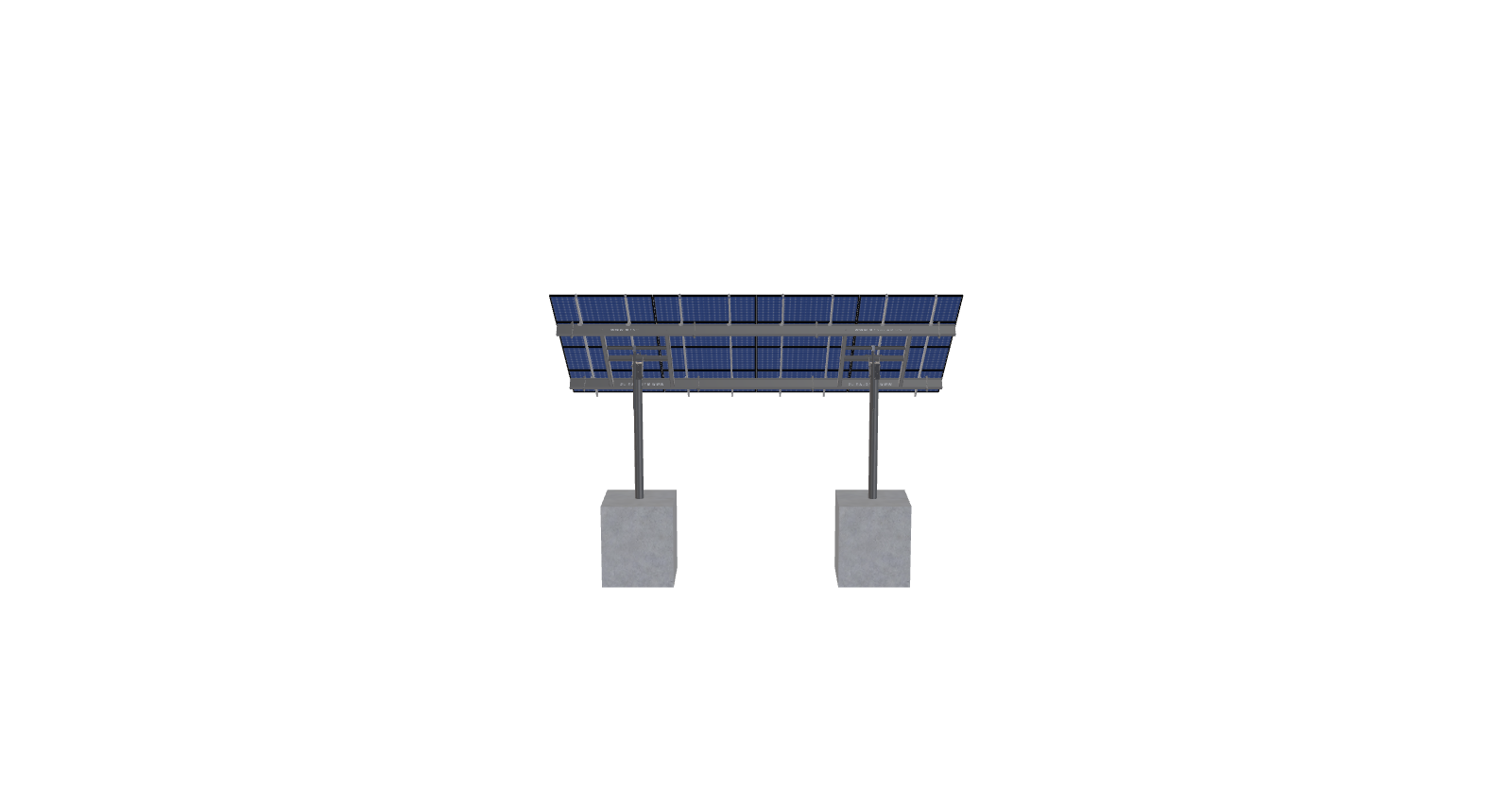

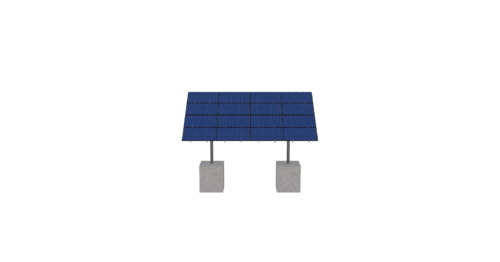

See 3D Model Here
Forks-RevB-CU
$7,031.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.976 inches by 41.14 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1155.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-12-L-4HX4W-3K52 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 8.98 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 346.89 |
| ARRAY WIDTH | 24.99 |
| ARRAY HEIGHT | 13.88 |
| RAIL LENGTH | 166.56 |
| MODULE LENGTH | 73.98 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 12.91 |
| PROJECTED PANEL HEIGHT | 7.87 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | FORKS-REVB-CU |
| SITE ADDRESS | US-287, LIVERMORE, CO, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6696.38 |
| TOTAL WEIGHT | 1155.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/0d0327ca-247e-4575-b15f-1bb59f940c7c.pdf |
|
| ID | 4830.00 |
| 3D Solar link |
