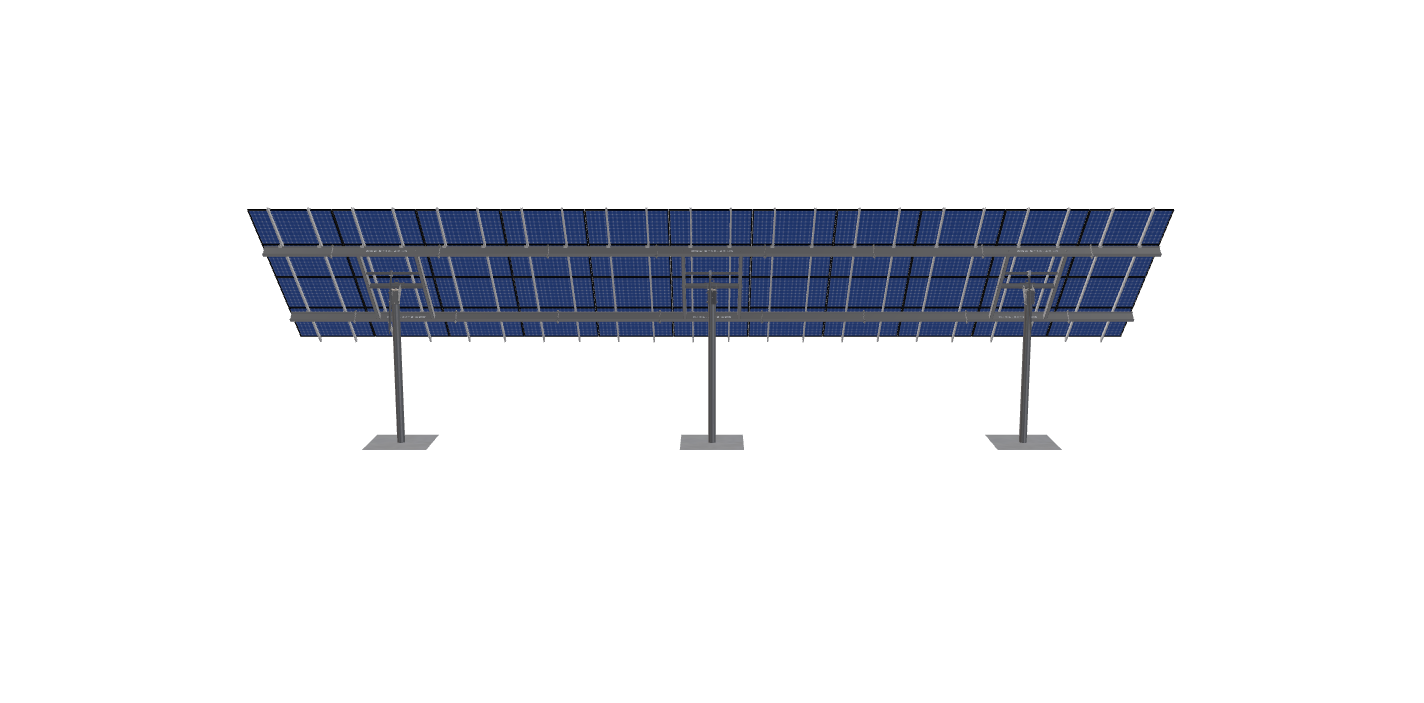

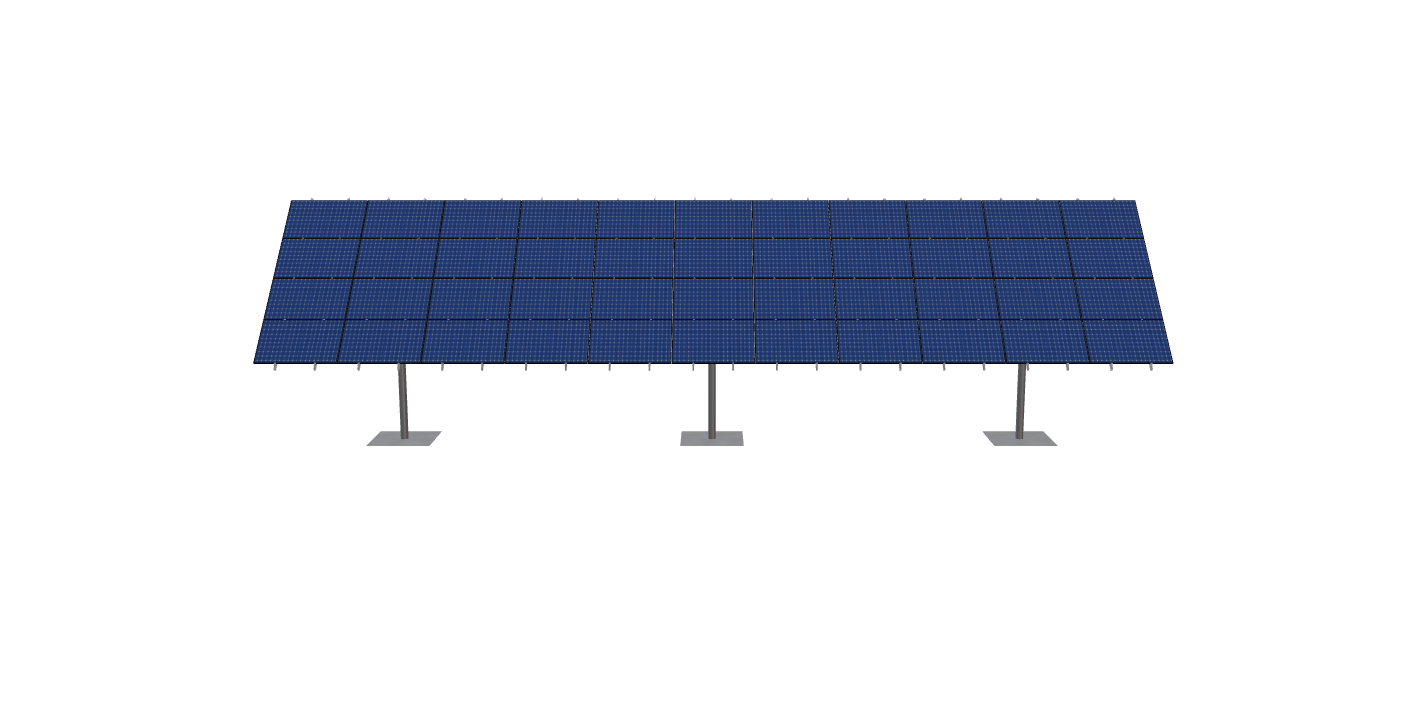

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.75 inches by 44.675 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
FOURIE Eng 87mph 4psf 45deg Exp B
$16,668.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.75 inches by 44.675 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2922.83 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-57-L-4HX11W-D1JK |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.32 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 948.99 |
| ARRAY WIDTH | 63.02 |
| ARRAY HEIGHT | 15.06 |
| RAIL LENGTH | 185.00 |
| MODULE LENGTH | 67.75 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 16.65 |
| PROJECTED PANEL HEIGHT | 10.65 |
| WIND SPEED OVERRIDE | 87.00 |
| SNOW LOAD OVERRIDE | 4.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | FOURIE, ENG, 87MPH, 4PSF, 45DEG, EXP, B |
| SITE ADDRESS | 116, TARTAN, WAY, FAIRFIELD, CA, 94534, USA |
| MODULE INFO | AXITEC, 440 |
| MODULE WIDTH | 44.67 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16668.92 |
| TOTAL WEIGHT | 2922.83 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/8f9d9098-7773-480f-b515-37368f14dffe.pdf |
|
| ID | 13963.00 |
| 3D Solar link |
