This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.3 inches by 39.2 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

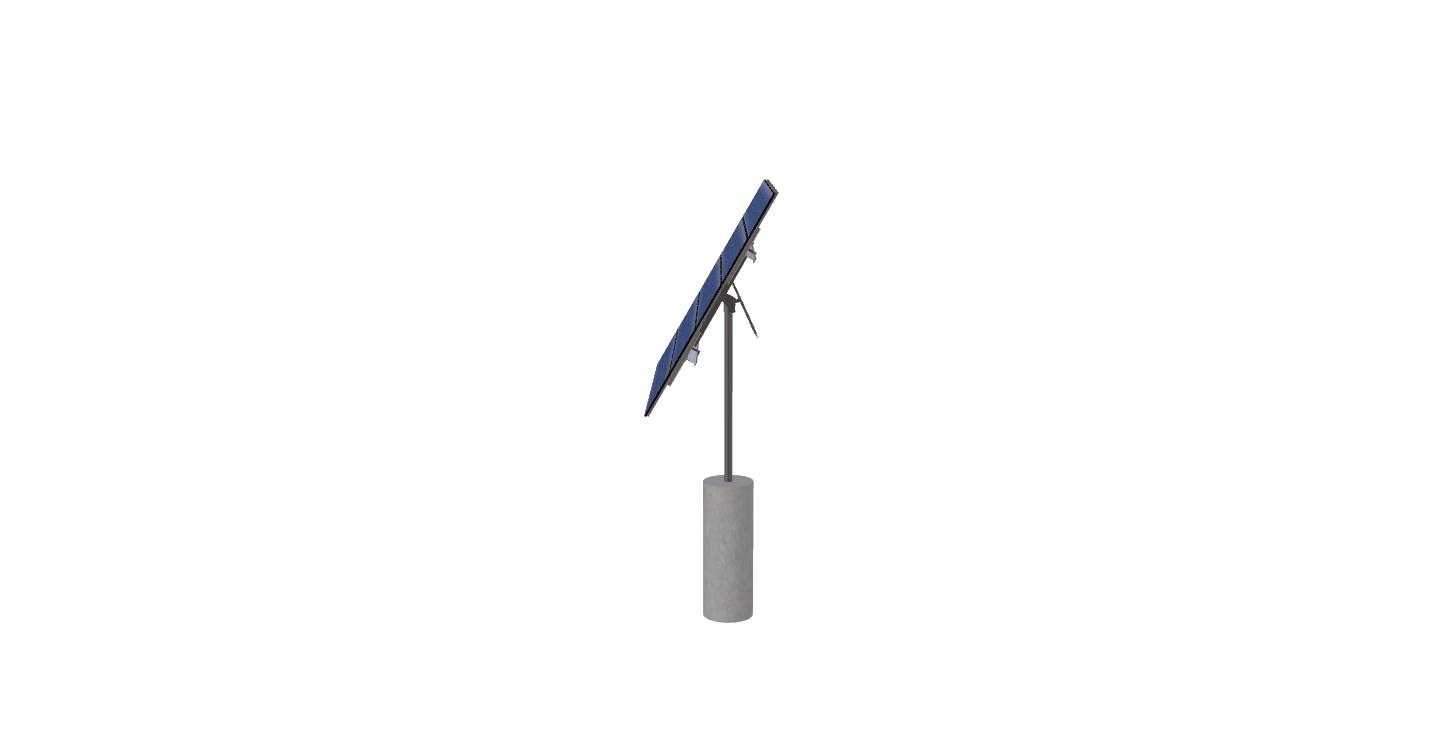

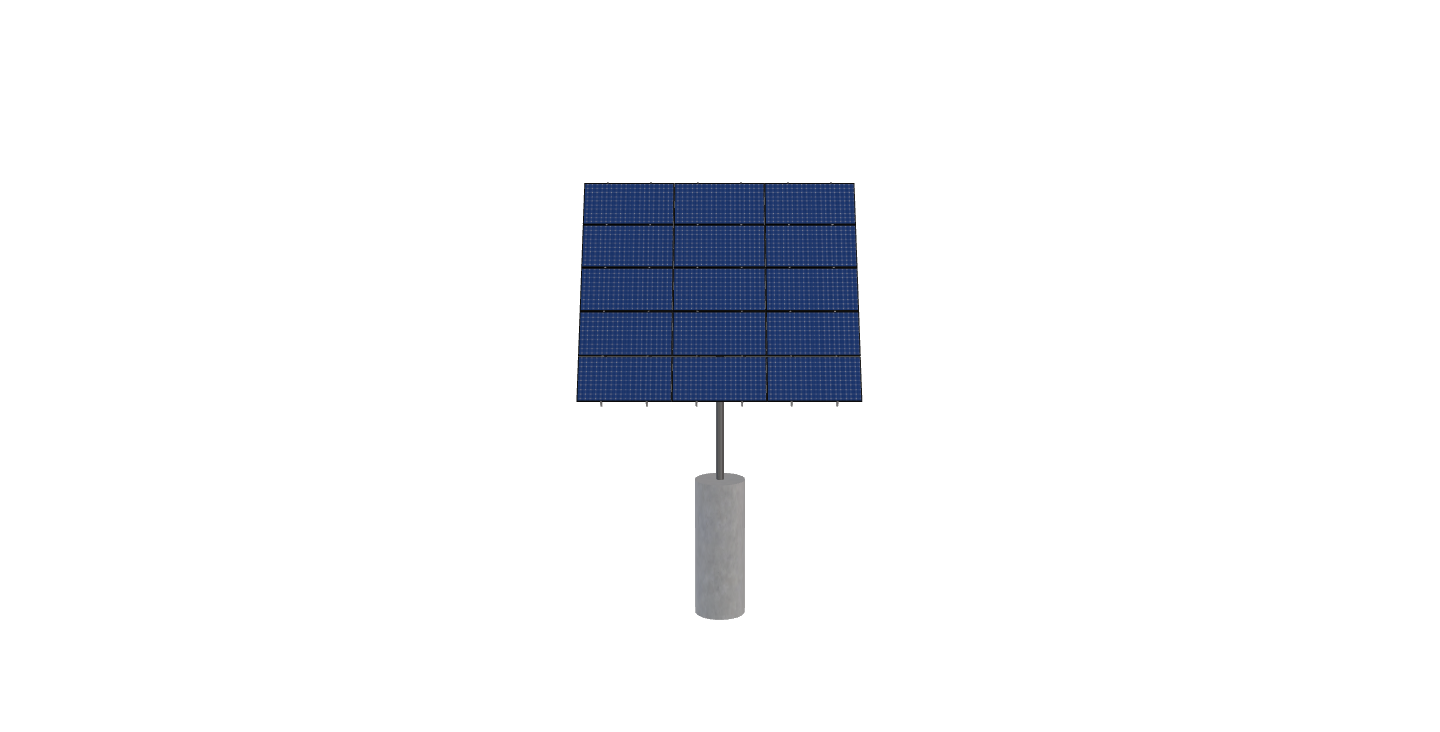

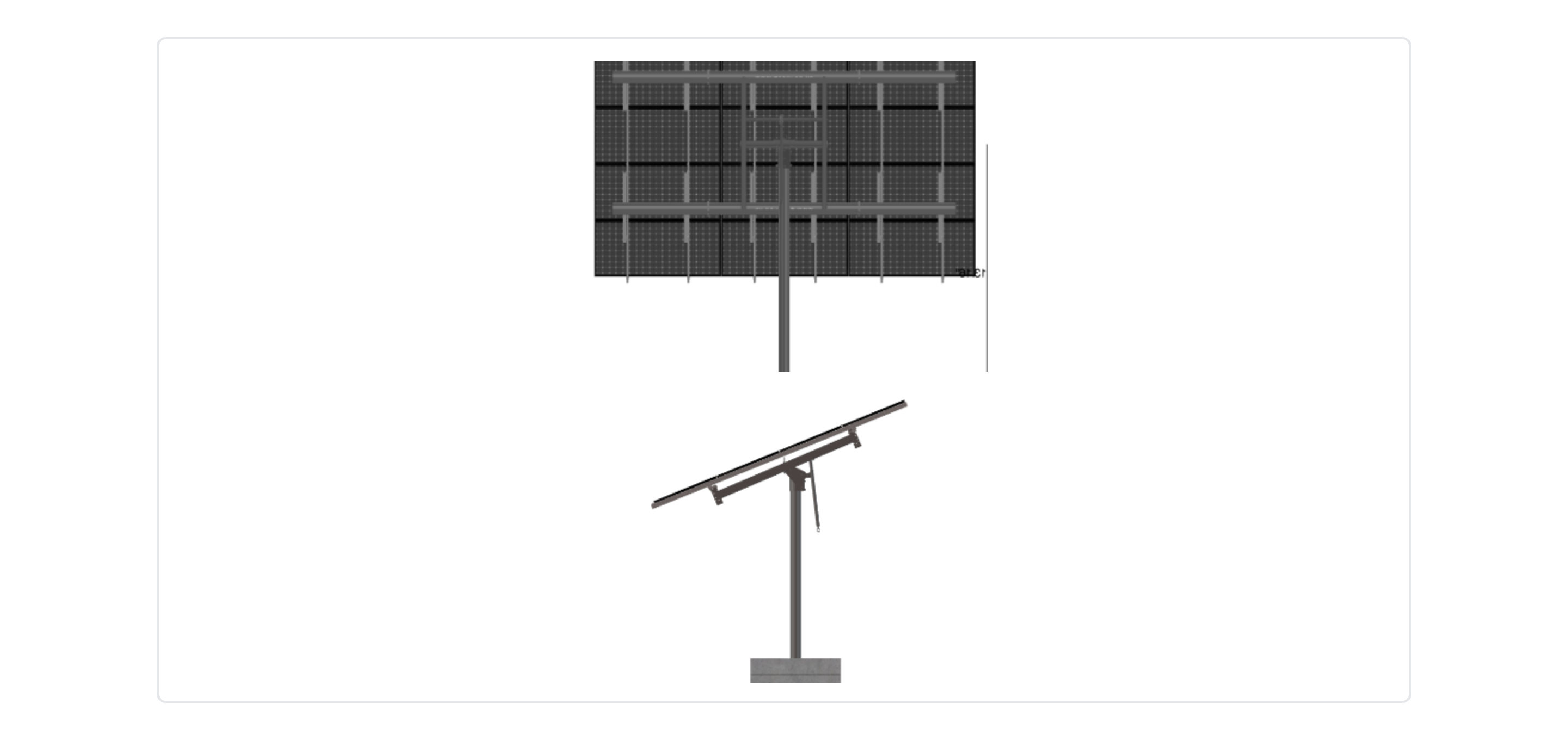

See 3D Model Here
FrancisSeigers-JB-RevA
$4,854.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.3 inches by 39.2 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 907.3199999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-57-L-5HX3W-445L |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 13.16 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 315.53 |
| ARRAY WIDTH | 19.07 |
| ARRAY HEIGHT | 16.54 |
| RAIL LENGTH | 198.50 |
| MODULE LENGTH | 75.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 20.24 |
| PROJECTED PANEL HEIGHT | 14.15 |
| PROJECT ID | FRANCISSEIGERS-JB-REVA |
| SITE ADDRESS | 9748, EGYPT, RD, BOONVILLE, NY, 13309, USA |
| MODULE WIDTH | 39.20 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 132.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4622.99 |
| TOTAL WEIGHT | 907.32 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/86b4be3a-b508-4b48-a2c0-48ed935cd8ab.pdf |
|
| ID | 2001.00 |
| 3D Solar link |
