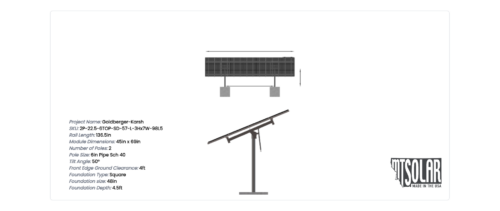

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 45 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

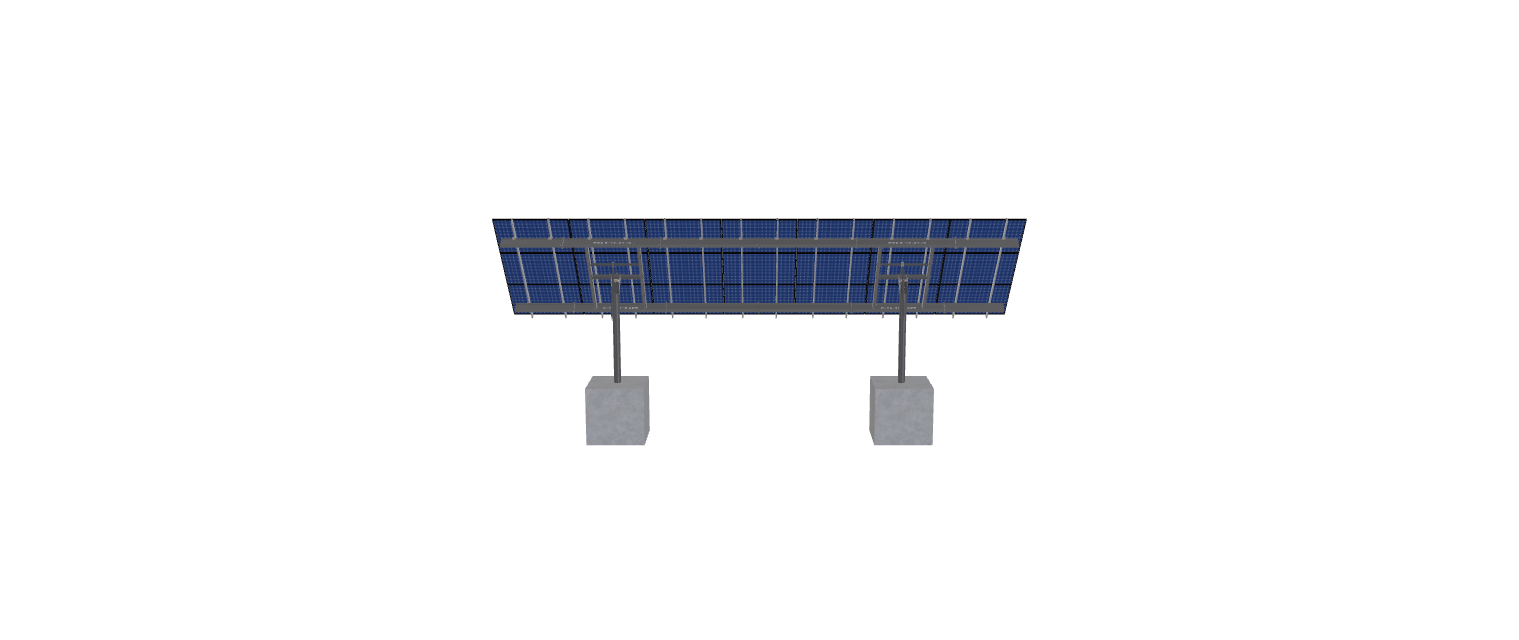

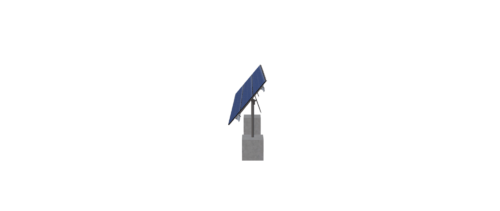

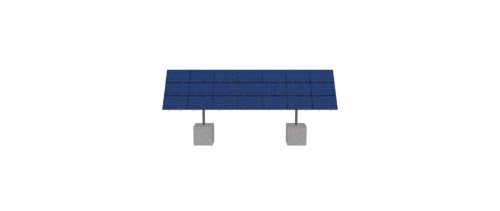

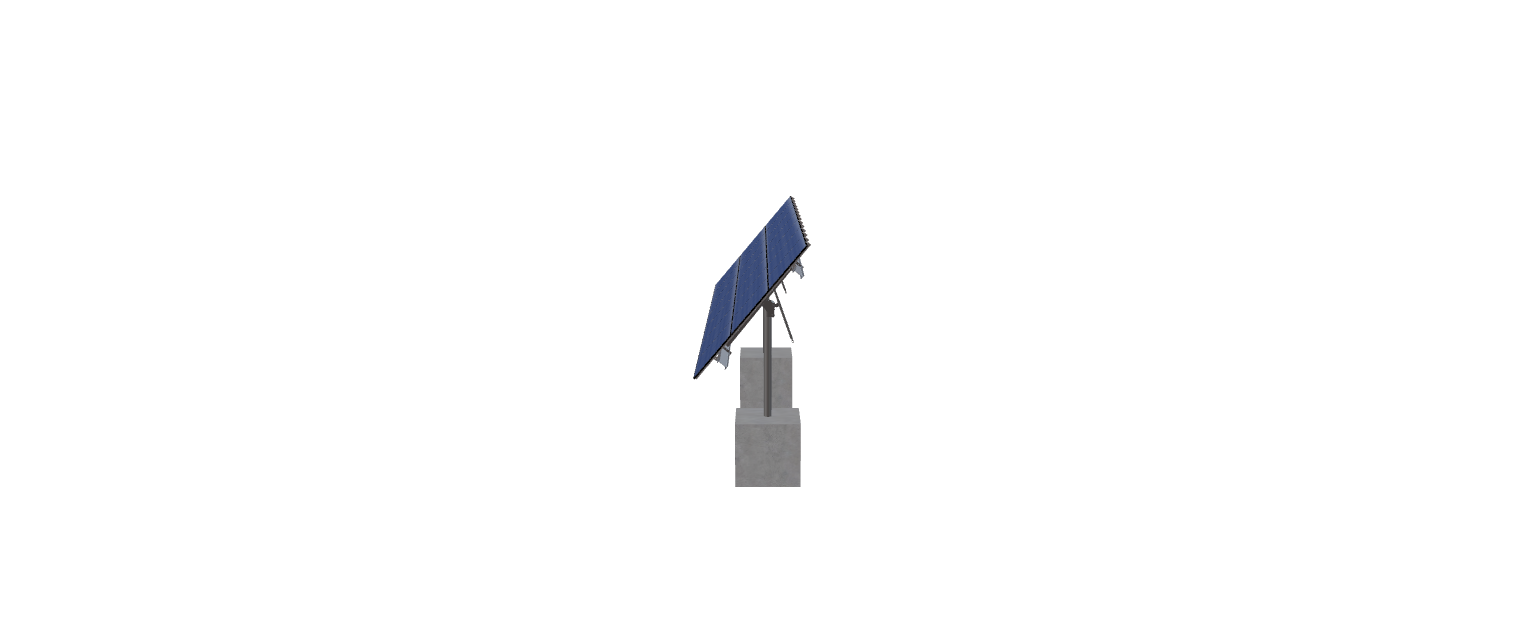

See 3D Model Here
Goldberger-Karsh
$8,857.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69 inches by 45 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1508.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-57-L-3HX7W-98L5 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.36 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 464.48 |
| ARRAY WIDTH | 40.83 |
| ARRAY HEIGHT | 11.38 |
| RAIL LENGTH | 136.50 |
| MODULE LENGTH | 69.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 12.71 |
| PROJECTED PANEL HEIGHT | 8.71 |
| DESIGNER NAME | BRANDON, PAYNE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | GOLDBERGER-KARSH |
| SITE ADDRESS | 465, GREENRIDGE, DR, BOZEMAN, MT, 59715, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 95.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8435.71 |
| TOTAL WEIGHT | 1508.44 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/2940cda0-4a36-4779-b066-ef0de1b7888a.pdf |
|
| ID | 8463.00 |
| 3D Solar link |
