This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 42.3 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

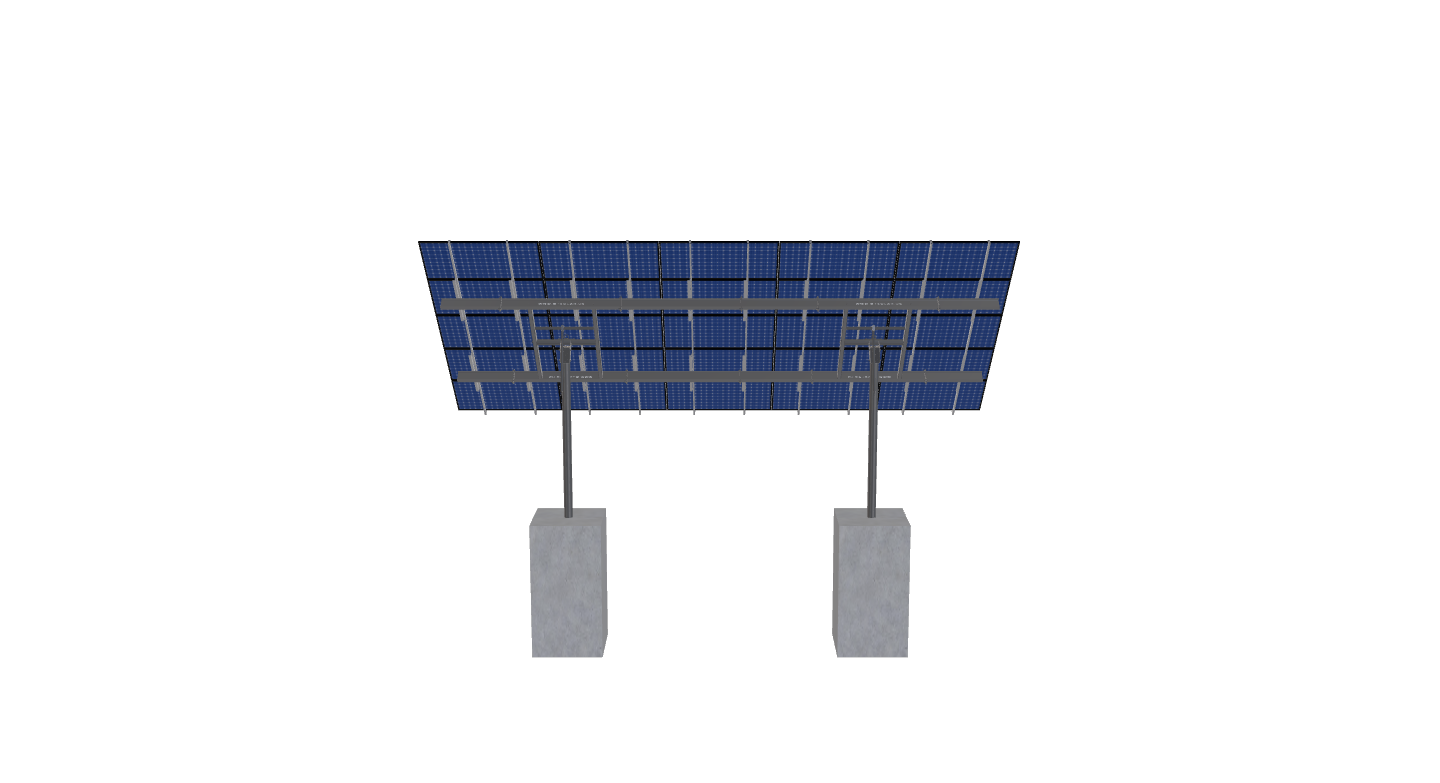

See 3D Model Here
GreggBradburyGroundMount-RevH-JB
$11,767.13
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 42.3 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2247.8999999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-10TOP-XD-45-L-5HX5W-E1BH |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.41 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 646.46 |
| ARRAY WIDTH | 36.25 |
| ARRAY HEIGHT | 17.83 |
| RAIL LENGTH | 214.00 |
| MODULE LENGTH | 86.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 17.75 |
| PROJECTED PANEL HEIGHT | 12.68 |
| WIND SPEED OVERRIDE | 150.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | GREGGBRADBURYGROUNDMOUNT-REVH-JB |
| SITE ADDRESS | 8775, BLUE, MOUNTAIN, DR, GOLDEN, CO, 80403, USA |
| MODULE WIDTH | 42.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11206.79 |
| TOTAL WEIGHT | 2247.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/2a1adfdc-0cc6-4ced-9c83-abee8c12ef3c.pdf |
|
| ID | 3957.00 |
| 3D Solar link |
