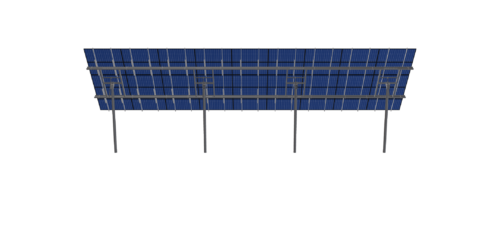

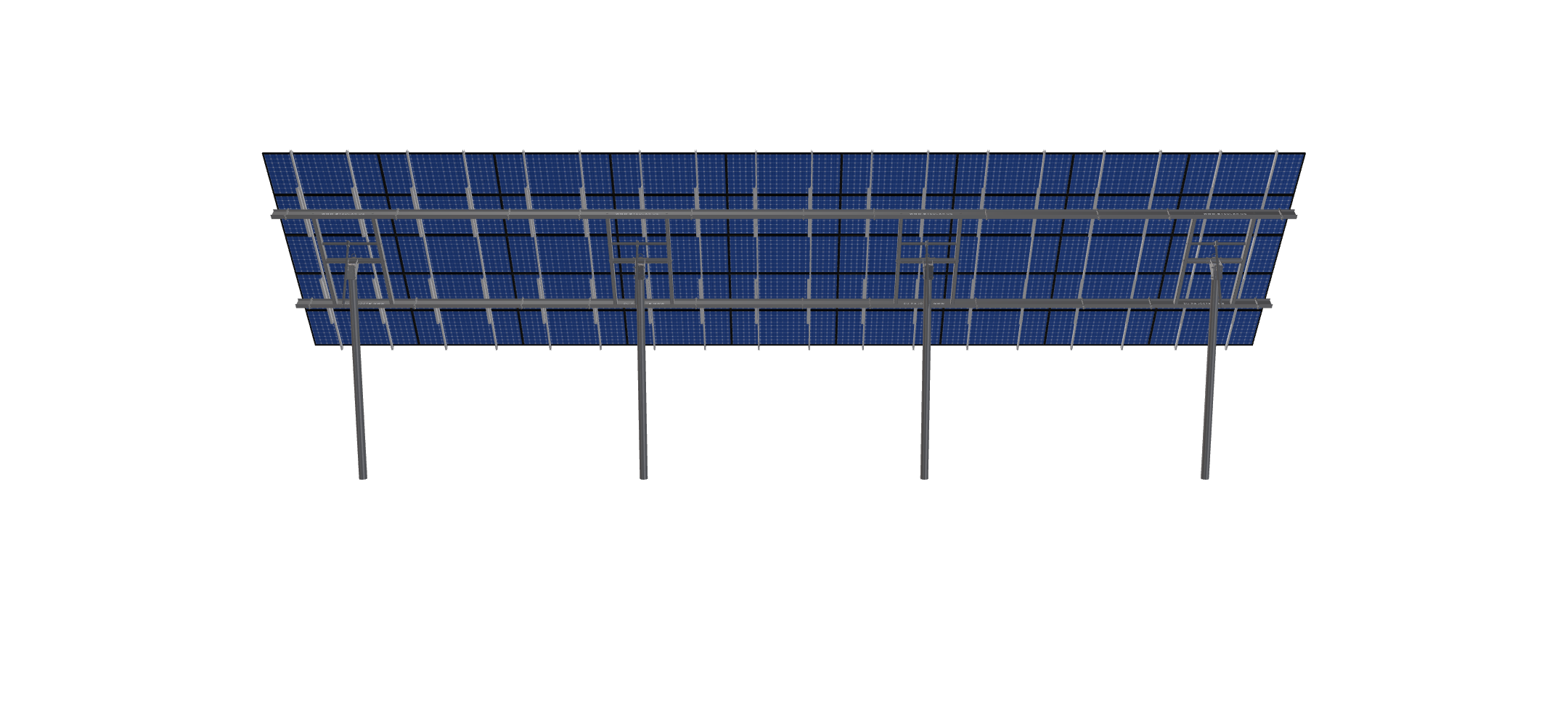

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.1 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Grover-GM-JB-Rev6
$18,264.42
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.1 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3410.46 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-8TOP-SD-12-L-5HX9W-6G6L |
DUTY SIZE | SD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 15.31 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 15.00 |
TILT ANGLE | 60.00 |
CANTILEVER | 825.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 4.00 |
MODULE AREA | 1165.64 |
ARRAY WIDTH | 69.08 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 91.10 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 68.75 |
GROUND TO TOP | 22.52 |
PROJECTED PANEL HEIGHT | 14.43 |
WIND SPEED OVERRIDE | 100.00 |
SNOW LOAD OVERRIDE | 35.00 |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | GROVER-GM-JB-REV6 |
SITE ADDRESS | 270, AVALANCHE, GULCH, RD, TOWNSEND, MT, 59644, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 36.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 17394.69 |
TOTAL WEIGHT | 3410.46 |
TOTAL PALLETS | 4.00 |
