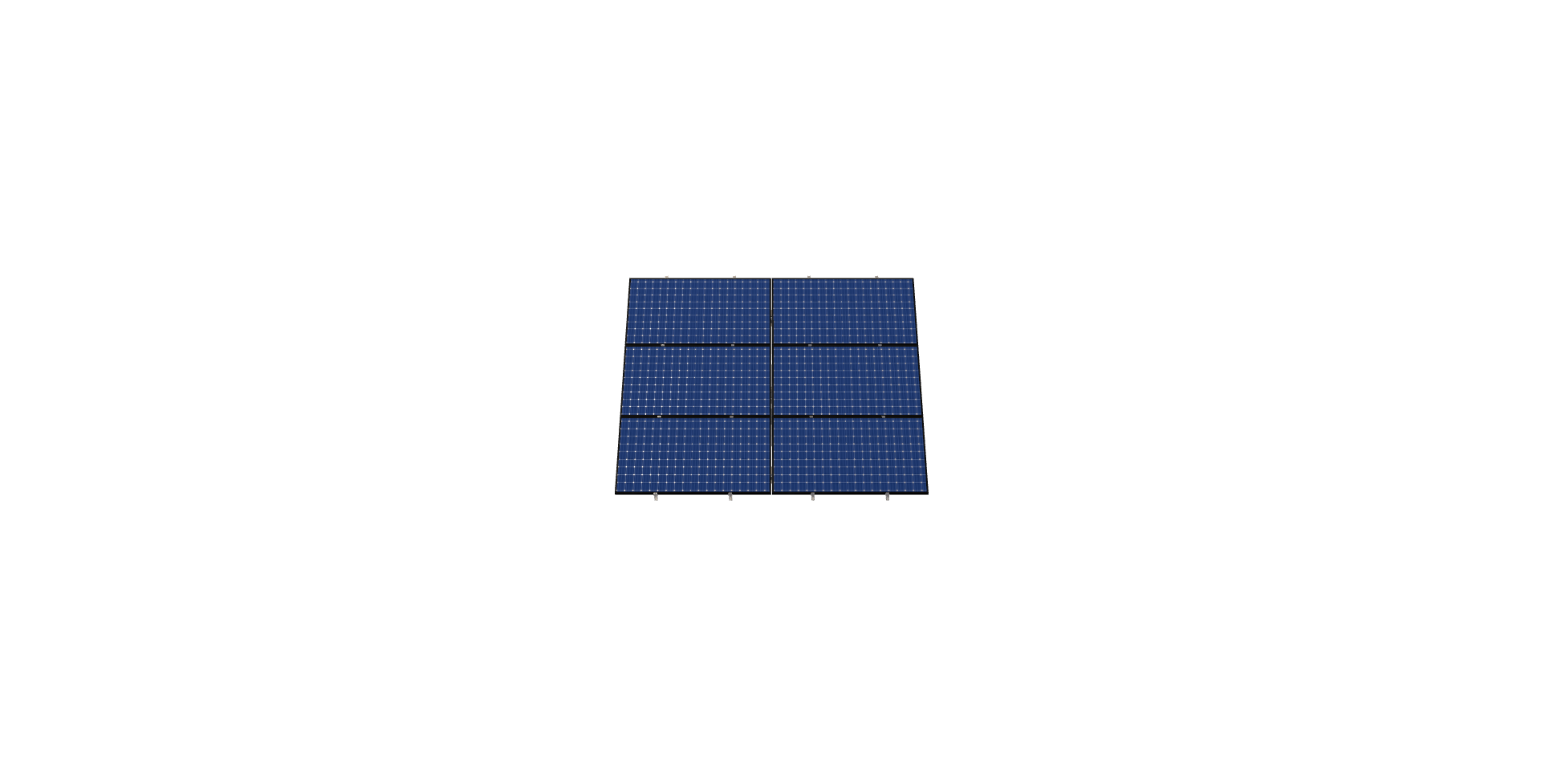

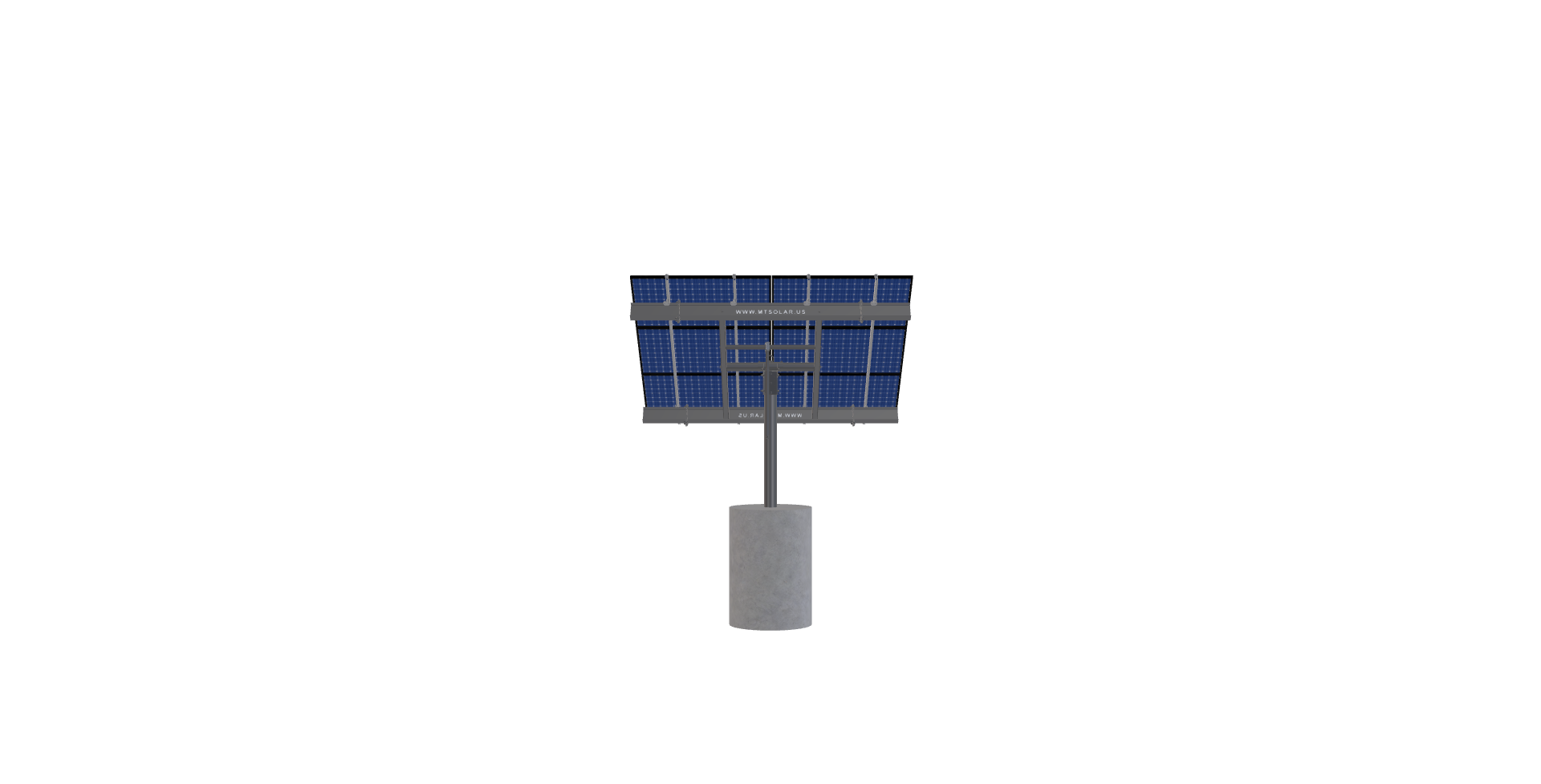

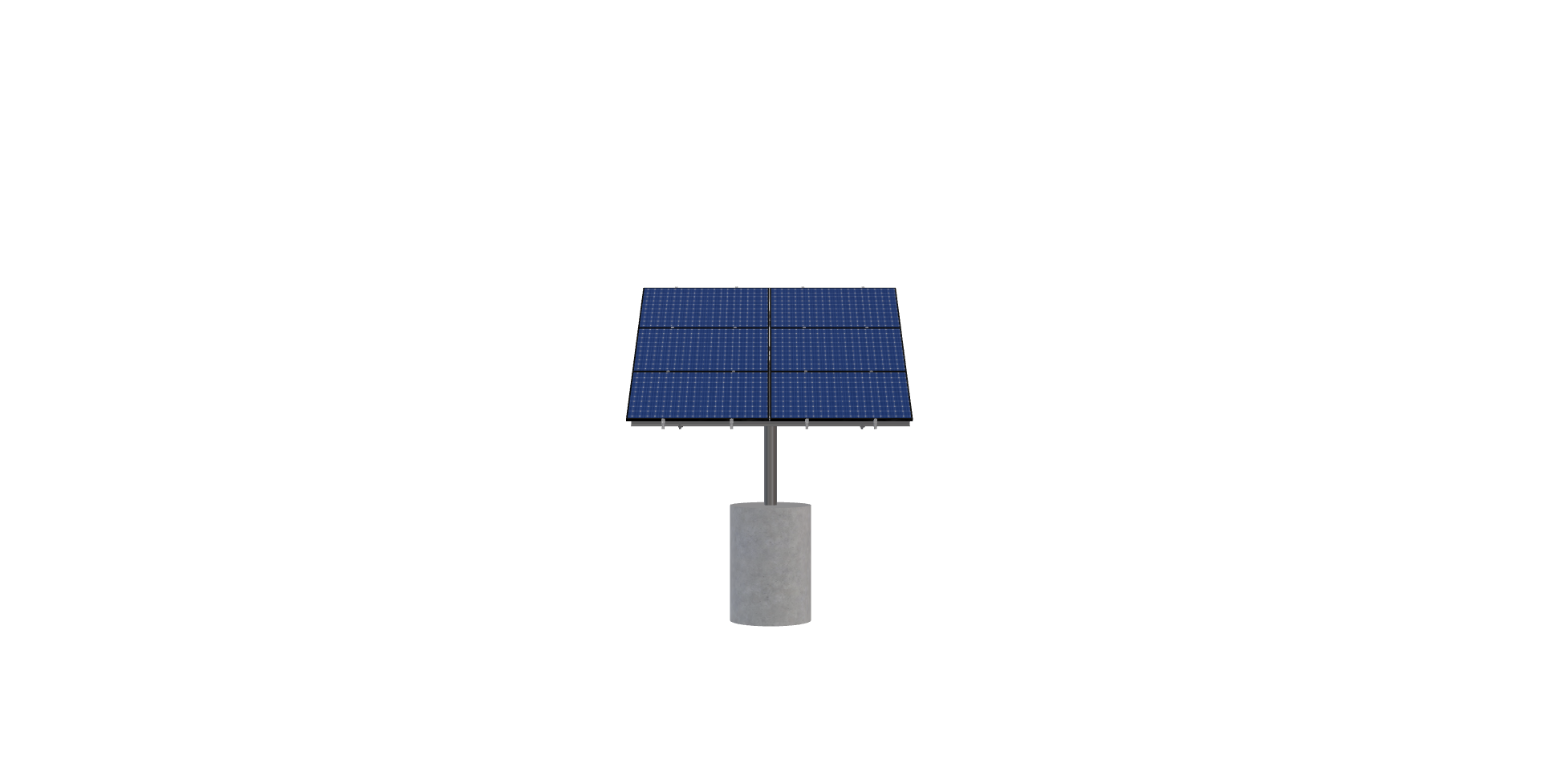

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Hagar
$3,661.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 657.59 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-HD-24-L-3HX2W-2647 |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 6.01 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 5.00 |
TILT ANGLE | 35.00 |
CANTILEVER | 138.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 1.00 |
MODULE AREA | 122.15 |
ARRAY WIDTH | 11.63 |
ARRAY HEIGHT | 10.50 |
RAIL LENGTH | 126.00 |
MODULE LENGTH | 68.80 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 11.50 |
GROUND TO TOP | 8.99 |
PROJECTED PANEL HEIGHT | 5.95 |
WIND SPEED OVERRIDE | 90.00 |
SNOW LOAD OVERRIDE | 60.00 |
DIRECT SNOW LOAD | TRUE |
PROJECT ID | HAGAR |
SITE ADDRESS | 1501, BLM, RD, #2755, HOT, SULPHUR, SPRINGS, CO, 80451, USA |
MODULE WIDTH | 41.50 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 36.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 3661.39 |
TOTAL WEIGHT | 657.59 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/196bb613-6d4a-4177-a438-f3c3883a66e8.pdf |
|
ID | 1933.00 |
CAD URL | |
3D Solar link |
